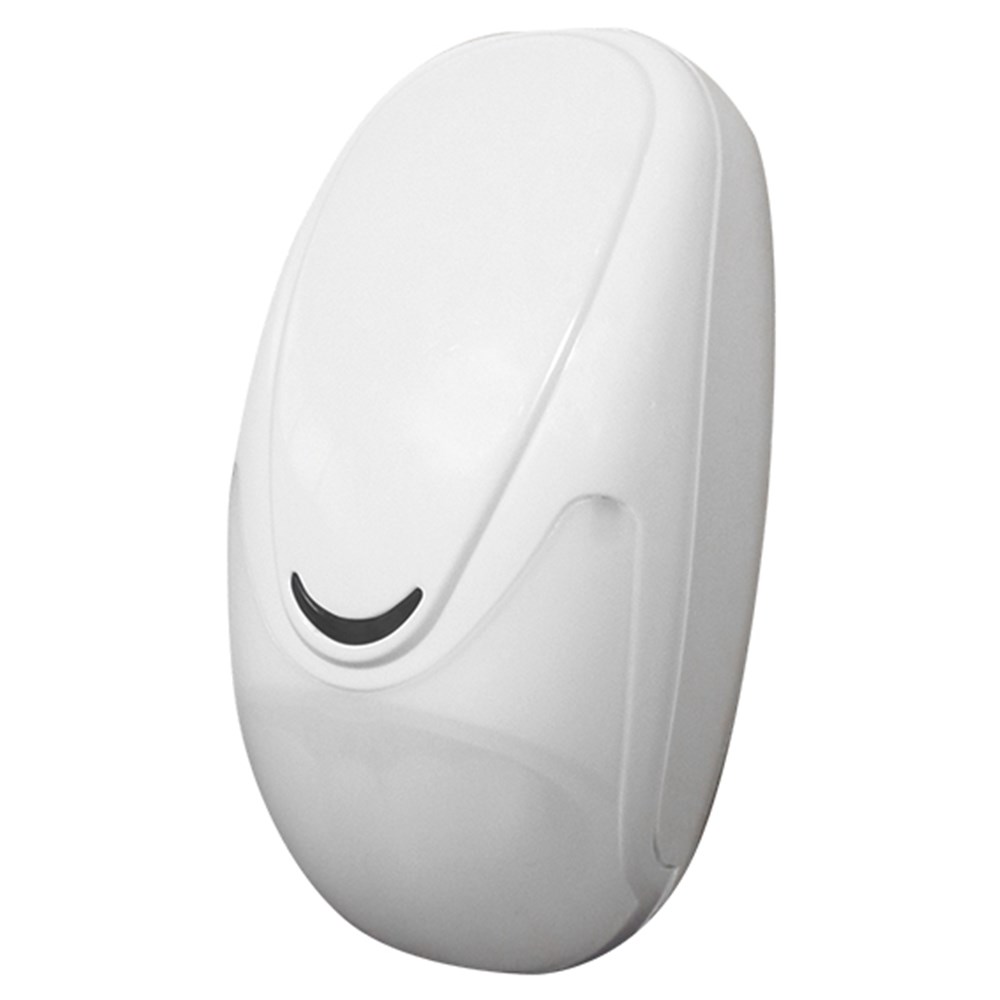

AMC Mouse GS Digital PIR and Break Glass Detector

Product Code: AMMOUSEGS

Are you a tradesperson?

Get access to our best prices



Description

MouseGS is a dual technology detector consists of a PIR and a microphone for the notification of shock and glass breakage.

It has independent settings and separate outputs for the PIR and the microphone section. It has a maximum range of 10 mt for the microphone section, and approximately 15 mt for the infrared.

You can adjust the microphone section only for glass breakage, or for shock and glass breakage. It has the ability to have different filterings to accentuate or less the efficiency in detecting breakages/damage.

Technical Features Mouse GS Mouse GS/P
Power Supply 13.8 Vdc 13.8 Vdc
Consumption 23 mA 23 mA
Range PIR 3 - 15 mt 3 - 15 mt
Range Microphone 10 mt 10 mt
Angle 90° 90°
Alarm Time 2 Sec 2 Sec
Walk Test's LED Yes Yes
Creep Zone Yes Yes
Cover Tamper Yes Yes
RFI Protection 30 V/m 30 V/m
Temperature Compensation Yes Yes
Digital Analysis Yes Yes
Bracket Available Yes Yes
Housing ABS ABS
Pet Immunity - Yes
Operating Temperature -10°C to 40°C -10°C to 40°C
Dimensions 110 x 60 x 46 mm 110 x 60 x 46 mm

Technical Specifications
Brand AMC
Finish White
Type of Detector PIR with Glass Break Detector
