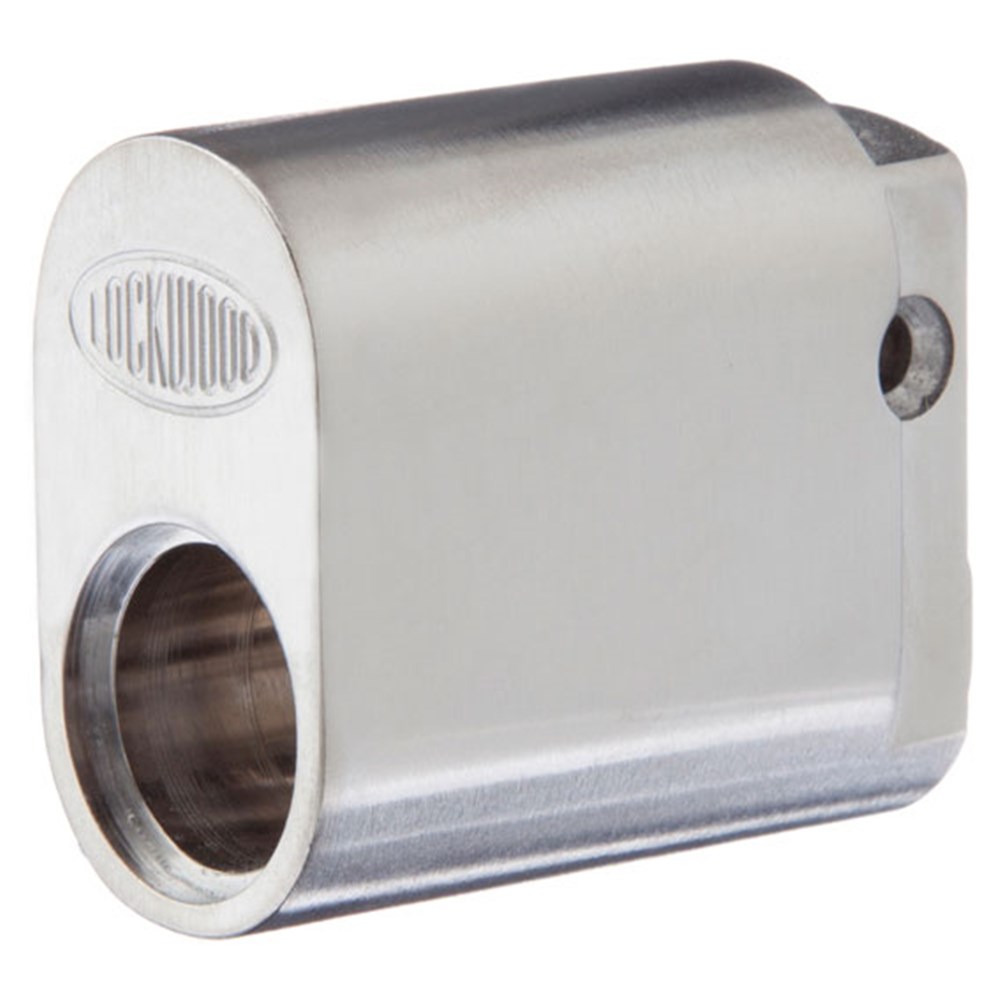

LOCKWOOD MODULAR CYL EXT'D 570 UNASSEMBLED 570E/SCBK 6P SC

Product Code: 570ESCBK

Are you a tradesperson?

Get access to our best prices



Description

Unassembled extended base cylinder with barrel adaptor, supplied less barrel.

Lockwood Modular Cylinder Extensions provide a simple and effective method of producing an extended cylinder.

Extended cylinders are often required where a door thickness of 50 mm or greater, or when the mortice lock is mounted off centre in the door.

The desired cam required for the special lock function is attached to the end of the extended cylinder and then it is ready for installation.

information-icon Suitable for use with Selector® dual cylinder series locks (bottom cylinder).

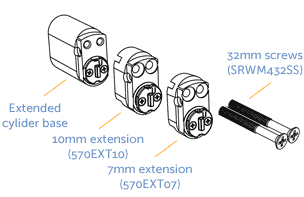

50 mm example

modular-cylinder-example

warning-icon This cylinder is not compatible with the Synergy series dual cylinder function or the Inline Airlock.

Technical Specifications
Brand LOCKWOOD
Finish Satin Chrome
Material Brass
Housing Drilled and Tapped For Extension Yes
