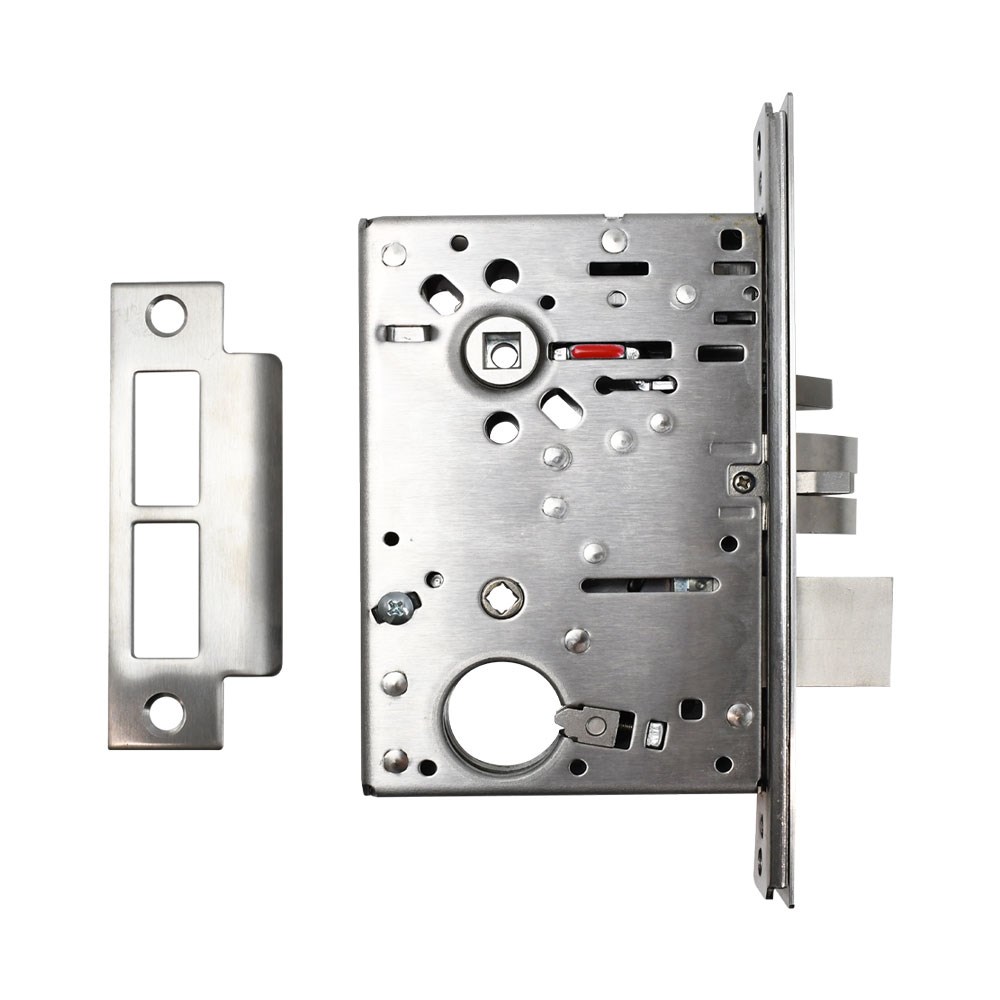

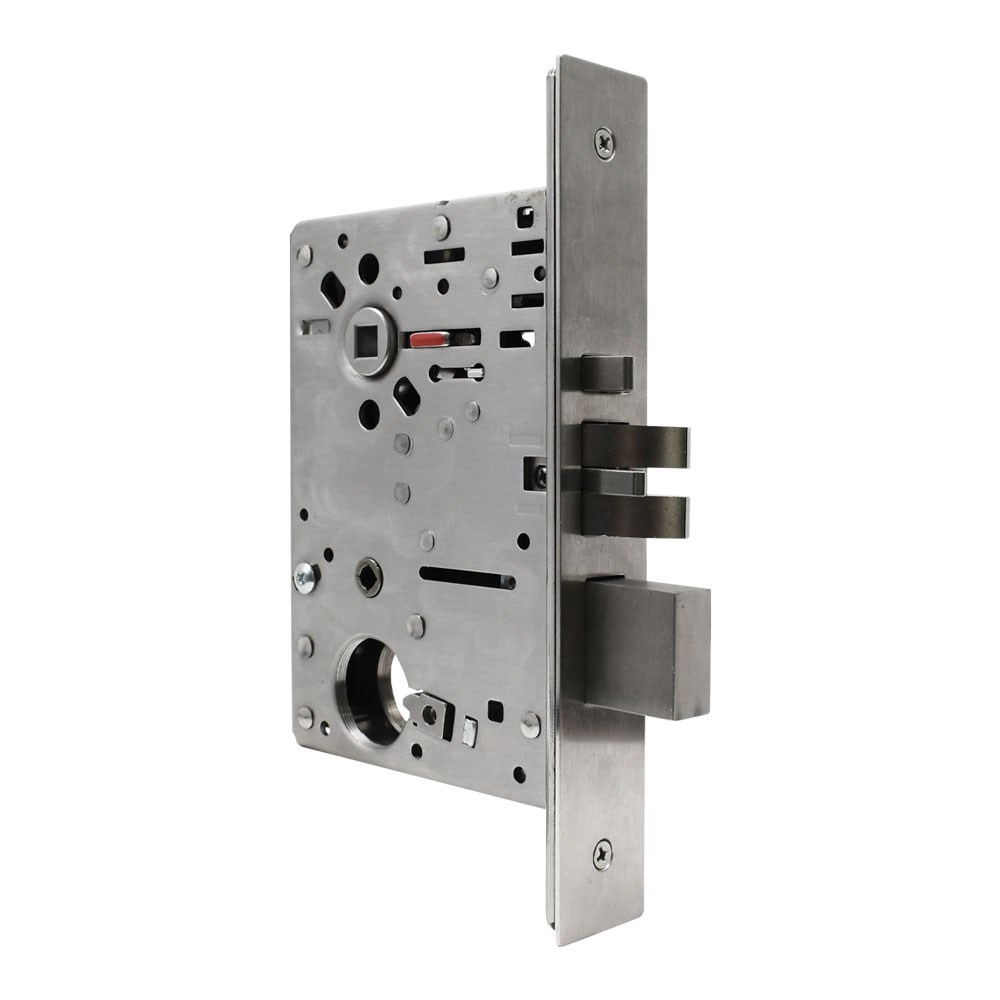

The McGrath Locks F54 ANSI mortice lock is a Grade 1, heavy duty lock to suit the Bardon. Constructed in stainless steel for extra durability with a reversible latch and 1" throw deadbolt, it is designed for commercial applications. The lock has a 70 mm backset and accepts threaded Kawneer cylinders.
- Stainless steel construction SS304.
- 70 mm backset.
- 92 mm pitch.
- 19 mm projection anti-friction latch.
- 1" throw deadbolt.
- Field changeable handing.
- Accepts threaded Kawneer cylinder.
- Cycle tested to 1,000,000 cycles.

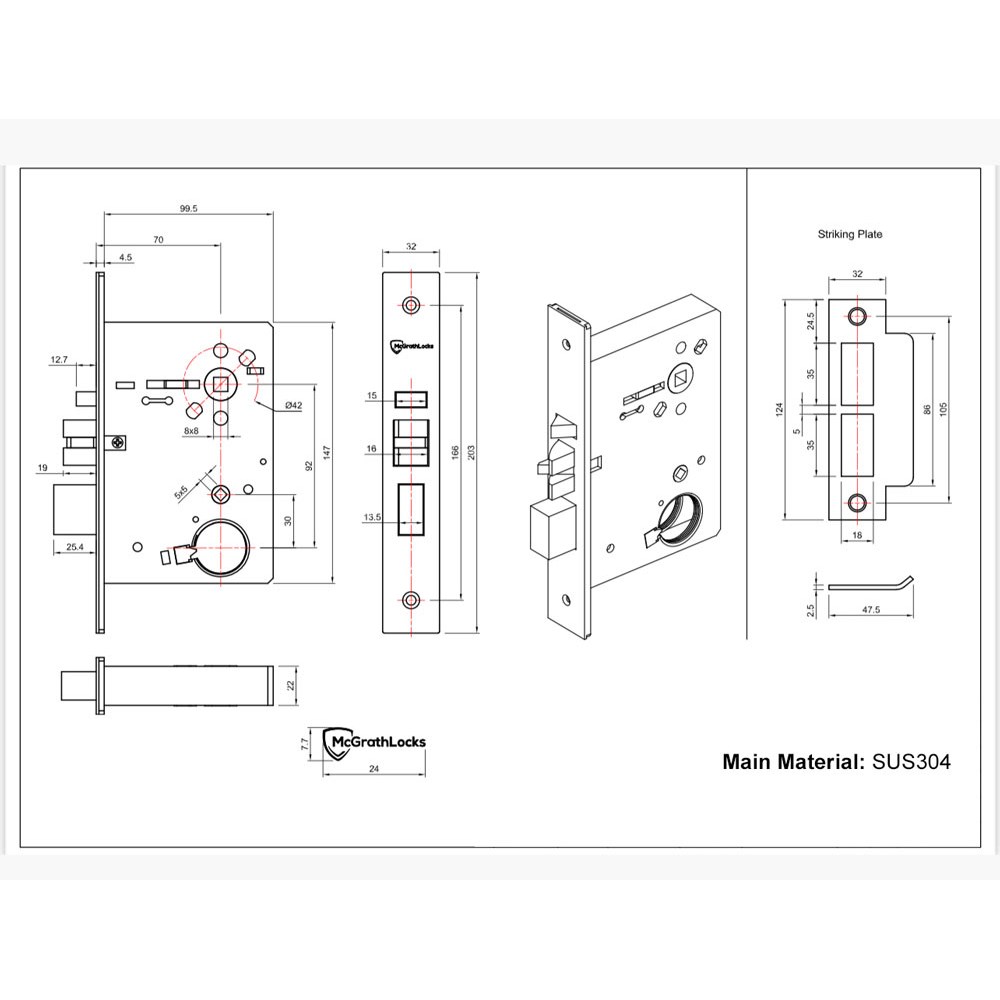

- Face Plate Size 203 (H) x 32 mm (W).
- Lock Case Dimensions 147 (H) x 99.5 (W) x 22 mm (D).
- Durability Test 1,000,000 Cycles (Grade 1).
- Spindle Size 8 mm.
