XS4 One HSE Series

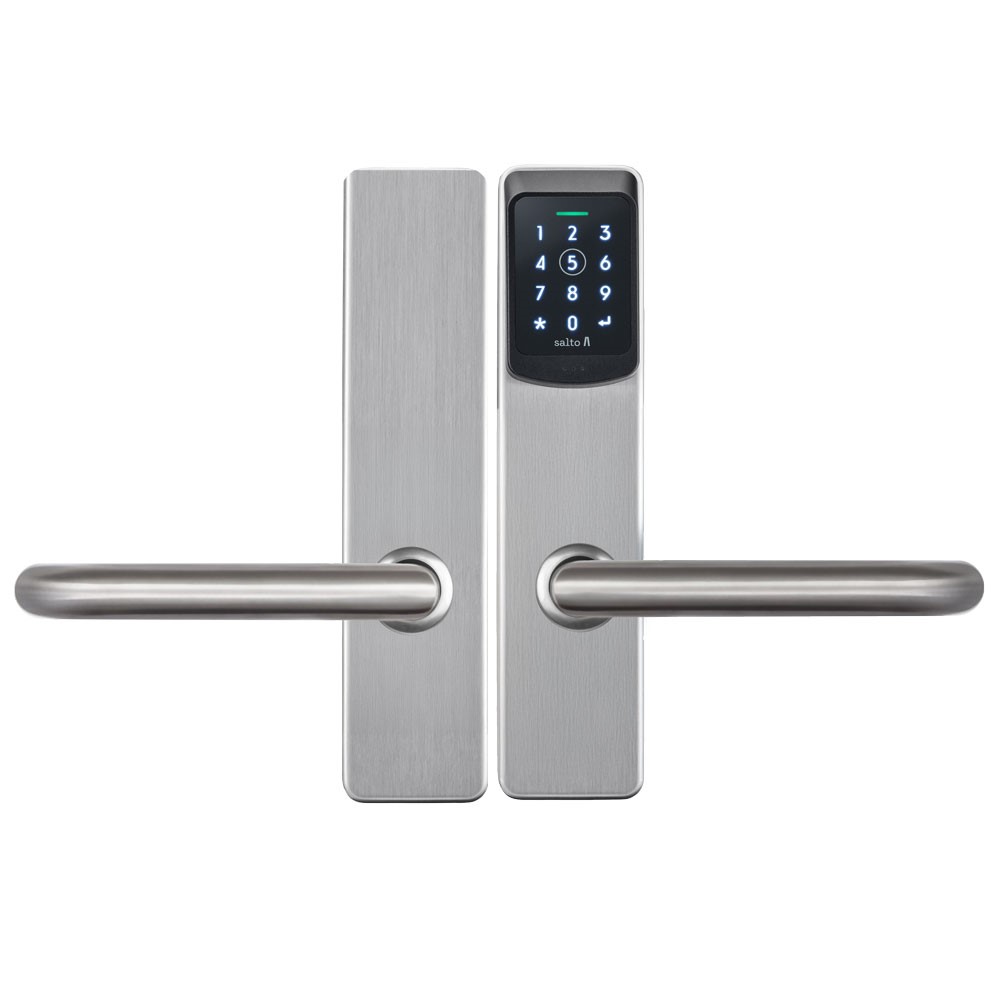

SALTO XS4 One S Keypad ANSI Escutcheon with Z Handles, HSE, U Spindle Kit, Stainless Steel Finish with Black Reader

Product Code: AM950Z00IMBU6K

Are you a tradesperson?

Get access to our best prices



Description

Secure PIN-Code smart locking solution for access control, the Salto XS4 One S Keypad is designed to fit ANSI standards doors and mortise locks. Easy to install and retrofit, it can replace your existing door hardware and fits any door with a broad range of different models and functions.

The XS4 One S Keypad integrates the latest smart access and credential technology with advanced code management, providing versatile access methods for both online and standalone scenarios.

Wireless for real-time control using SVN Salto Virtual Network.

firerated-icon BCA AS1428.1 -2009 compliant leverset.

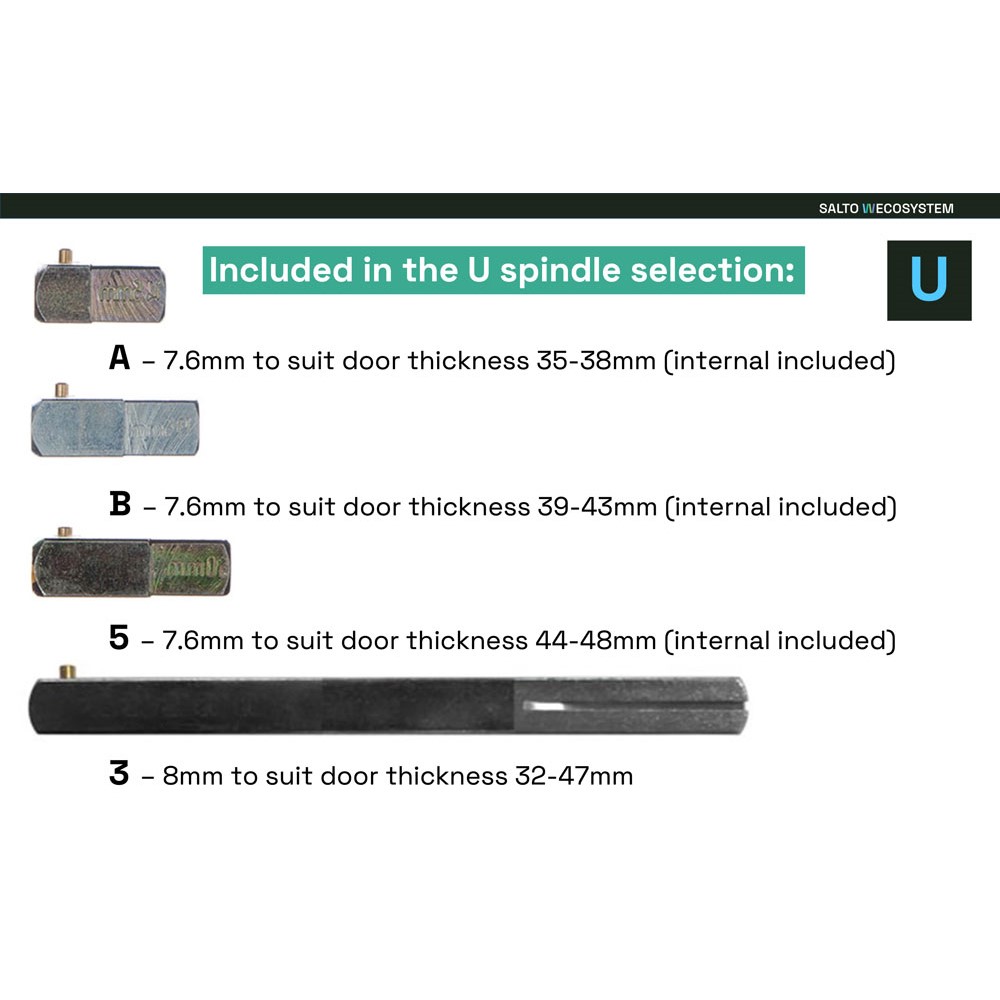

information-icon With Universal spindle kit.

MAIN FEATURES:

Reliable and easy-to-install electronic smart lock built in a high-quality stainless-steel body fits any door with unlimited model options.

Intuitive capacitive touch backlighted keypad reader offering multiple unlocking access methods for users.

  • User pass code (PIN).
  • Physical Credential - SVN.
  • Digital key - NFC / Bluetooth LE
  • Apple Wallet*
    *Not available in all platforms.
  • Dual color green/red to indicate authorisation.
  • Several codes options for different purposes and levels of security.
  • Mechanical and electronic privacy lockset function.
  • Salto standard handles are available to match any project requirement.
  • Available in seven elegant finishes.

TECHNICAL CHARACTERISTICS:

  • Housing dimensions:  (290 mm) x (67 mm) x (20 mm).
  • Door thickness: (32 - 120 mm).
  • Power source: 3 AA batteries (LR6 1,5V).
  • Reversible handle left or right smart electronic lock.
  • Clutch mechanism escutcheon, when unlocked handle moves freely.
  • Handle rotation: 52º.
  • Mechanical key and override option. Compatible Override Mortise Cylinder length 28.5 mm.
  • Compatible with ANSI standard mortise locks and Salto cylindrical and tubular latches.
  • Not suitable for outdoor use.

PLATFORMS:

Salto Space

  • On-premise Network.

Salto KS

  • Cloud Application.

Salto Homelok

  • Cloud Application.

CREDENTIAL TECHNOLOGIES:

  • Salto Justin Mobile Credentials: Bluetooth Digital Key and Near Field Communication (NFC) capability.
  • NXP MIFARE®: MIFARE® DESFire® EV1/EV2/ EV3, MIFARE® Plus, MIFARE® Ultralight C, MIFARE® Classic.

CORE TECHNOLOGIES:

  • SVN Data-on-Card
  • BLUEnet Wireless
  • JustIN Mobile
  • Apple Wallet*
    Not available in all platforms.
Technical Specifications
Brand SALTO
