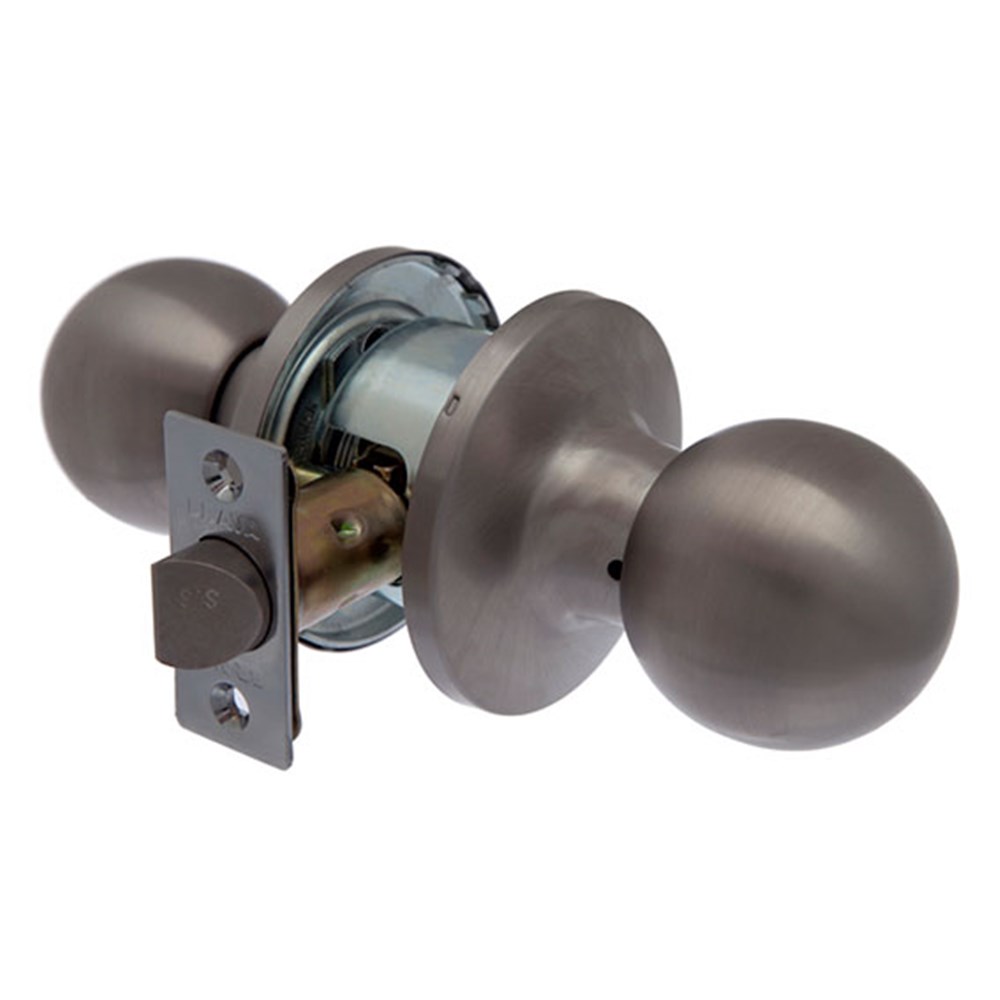

BRAVA Metro RA Series Tiebolt Passage Knob Set Adjustable Backset Satin Stainless Steel - RA3082SS

Product Code: RA3082SS

Are you a tradesperson?

Get access to our best prices



Description

BRAVA Metro RA3000 series commercial grade tiebolt 60-70 mm passage knobset.

firerated-icon Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.

Passage function

  • Both outside and inside knobs are always free.

Additional info

  • Tiebolt concealed fixing.
  • Boxed and colour coded.
  • Finished insatin stainless steel.
Door thickness 35mm - 45mm
Backset 60/70mm adjustable latch
max. Lever / knob projection
distance may not include turnsnib
73mm
Strike 70mm x 28mm x 2mm
Latch 60/70mm adjustable
Latch face plate 25mm x 57mm
Door handing Non-handed levers
Rose 75mm

Technical Specifications
Brand BRAVA
Finish Satin Stainless Steel
Function Passage
Lock Grade Commercial
Lock Type Tiebolt
Rose Diameter (in mm) 75
Suits Door Thickness 35 mm to 45 mm
Backset 60/70 mm Adjustable
Fire Rated Yes
