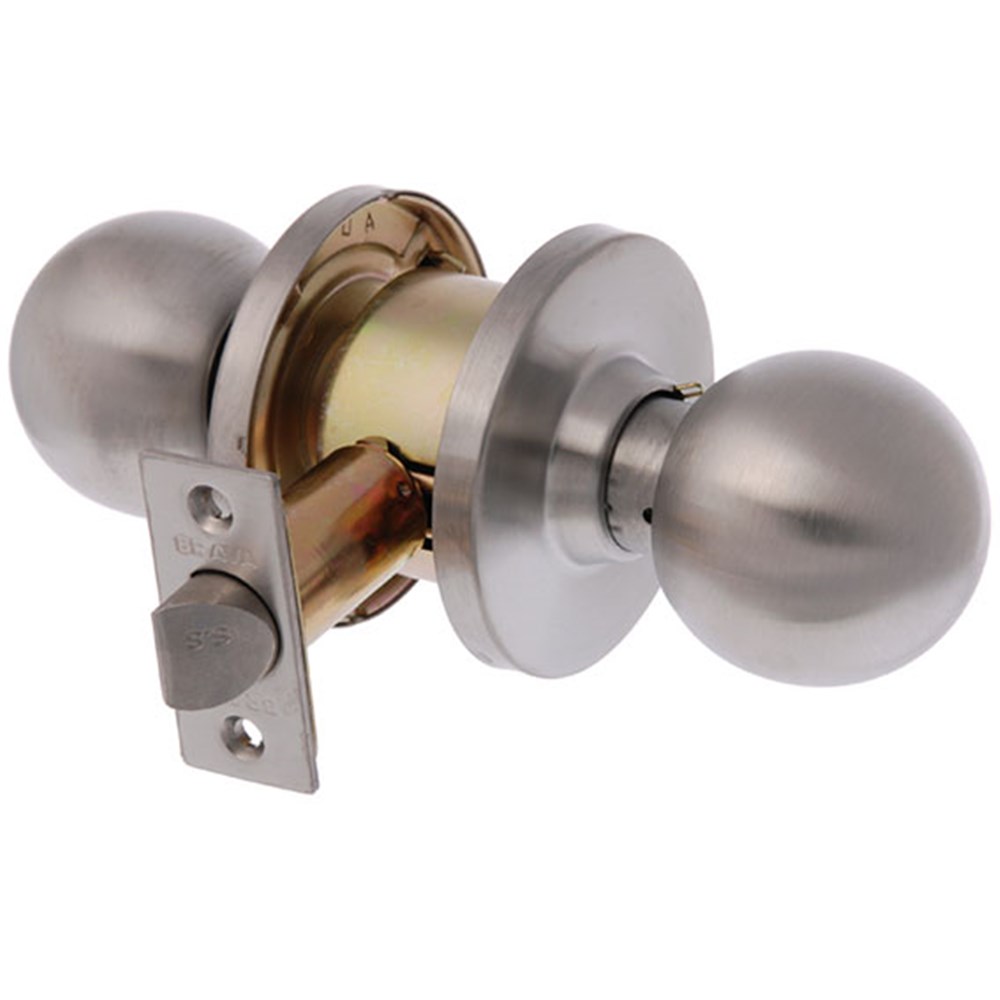

BRAVA Metro EA Series Passage Knob Set 70mm Backset SS - EA3082SS70

Product Code: EA3082SS70

Are you a tradesperson?

Get access to our best prices



Description

BRAVA Metro EA3000 series commercial grade passage knobset 70 mm backset.

firerated-icon Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.

Passage function

  • Both outside and inside knobs are always free.

Additional info

  • Cylindrical fixing.
  • Boxed and colour coded.
  • Finished in satin stainless steel.
Door thickness 35-45 mm
Backset 70 mm
max. Lever / knob projection
distance may not include turnsnib
69.5 mm
Strike 70 mm x 27 mm x 1.2 mm
Latch 70 mm backset
Latch face plate 57 mm x 25 mm
Door handing Non-handed knobs/levers
Rose 75 mm
Technical Specifications
Brand BRAVA
Finish Satin Stainless Steel
Function Passage
Lock Grade Commercial
Lock Type Cylindrical
Rose Diameter (in mm) 75
Suits Door Thickness 35 mm to 45 mm
Backset 70 mm
Fire Rated Yes
