ABUS CLOSER AC7124 SIZE 2-4 ADJ B/C H/O ARM SIL

Product Code: AC7124HO

Are you a tradesperson?

Get access to our best prices



Description

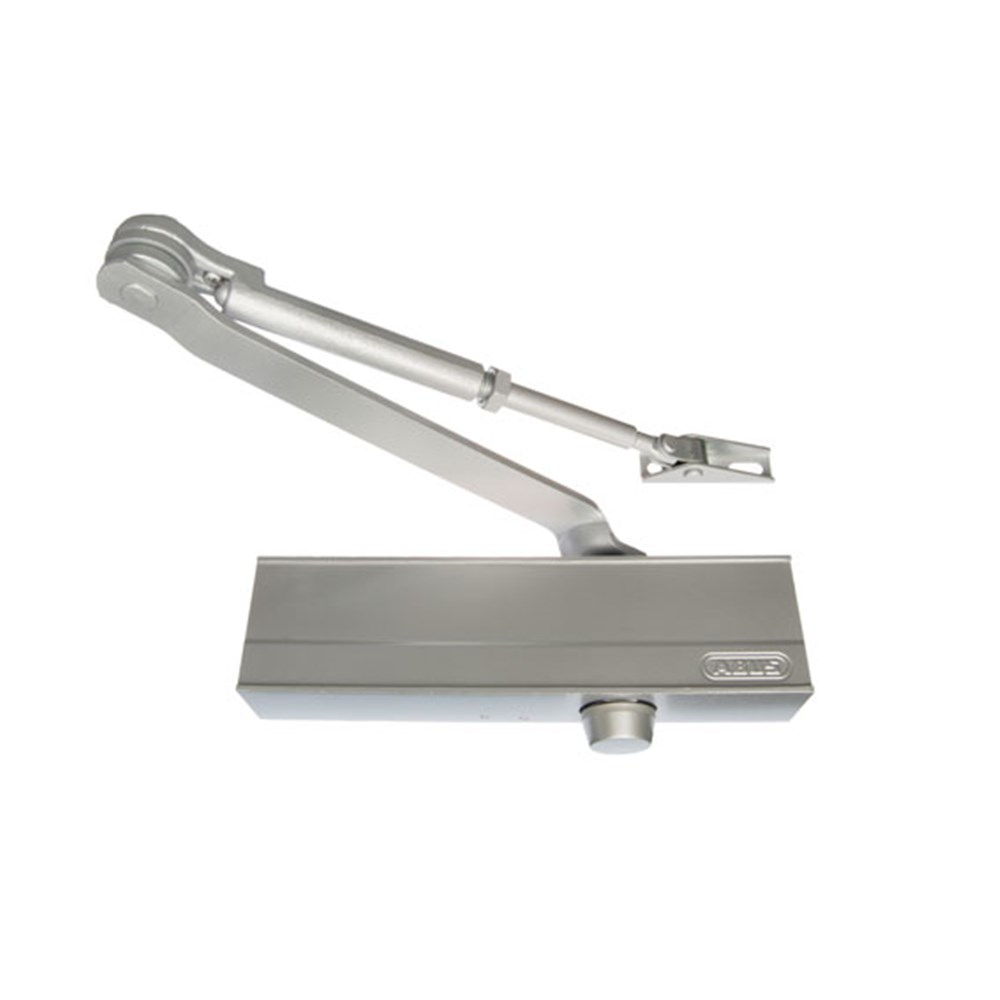

The ABUS AC7124HO is a rack and pinion, commercial grade door closer, with hold open arm assembly.

Hold open can be set at any angle up to 150° of opening.

Non-handed and suitable for doors up to 1250 mm in width.

notes-icon Hold open option is not approved on any fire doors.

  • Power adjustable from EN2 - 4.
  • Adjustable latching and closing speeds.
  • Adjustable backcheck.
  • Hold-open arm as standard.
  • Includes parallel arm bracket.
  • Suitable for doors up to 1250 mm wide.
  • Suitable for doors up to 85kg.
  • Dimensions 233 (L) x 60(H) x 42 mm (D).
  • Slide-on cover plate keeps the installation cosmetically neat.
  • Self adhesive mark out template.
  • Non-handed.
  • EN1154 certified.
  • Finished in silver.
  • Supplied boxed.
Technical Specifications
Brand ABUS
Adjustable Closing Speed Yes
Adjustable Latching Speed Yes
Finish Silver
Has Backcheck Yes
Has Delay Action No
Has Holdopen Yes
Parallel Arm Bracket Included Yes
Spring Strength EN2-4
Fire Rated No
