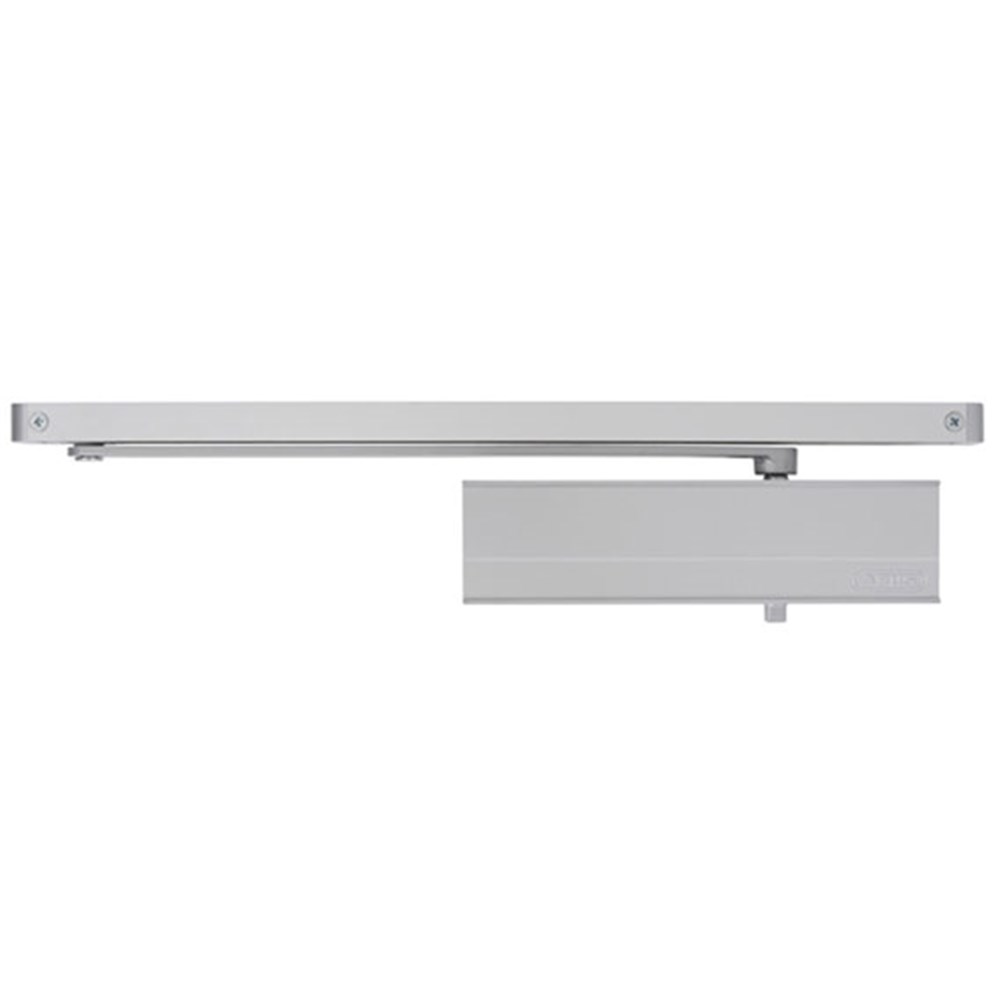

ABUS CLOSER AC7303 SIZE 3 ADJ B/C SLIDE ARM SIL

Product Code: AC7303

Are you a tradesperson?

Get access to our best prices



Description

The ABUS AC7303 is a rack and pinion, commercial grade door closer with slide arm, particularly quick and easy to install on most applications. For standard pull side installation or if possible transom mount on the push side.

Non-handed and suitable for doors up to 950 mm in width.

  • Power size EN3.
  • Adjustable latching and closing speeds.
  • Adjustable backcheck.
  • Slide arm design.
  • Suitable for doors up to 950 mm wide.
  • Suitable for doors up to 60kg.
  • Dimensions 233 (L) x 42 mm (W).
  • Slide-on cover plate keeps the installation cosmetically neat.
  • For standard pull side installation or if possible transom mount on the push side.
  • Non-handed.
  • Hydraulic opening buffer.
  • Finished in silver.
  • Supplied boxed.
Technical Specifications
Brand ABUS
Adjustable Closing Speed Yes
Adjustable Latching Speed Yes
Finish Silver
Has Backcheck Yes
Has Delay Action No
Has Slide Arm Yes
Parallel Arm Bracket Included No
Spring Strength EN3
Fire Rated No
