Product Code: ADILB7121L

Description

ADI economical three point locking bars are suitable for use in industrial and commercial buildings, institutions, clubs, schools, hospitals, hotels and similar buildings.

High security multi-point locking device that can be mounted horizontally to any solid core door.

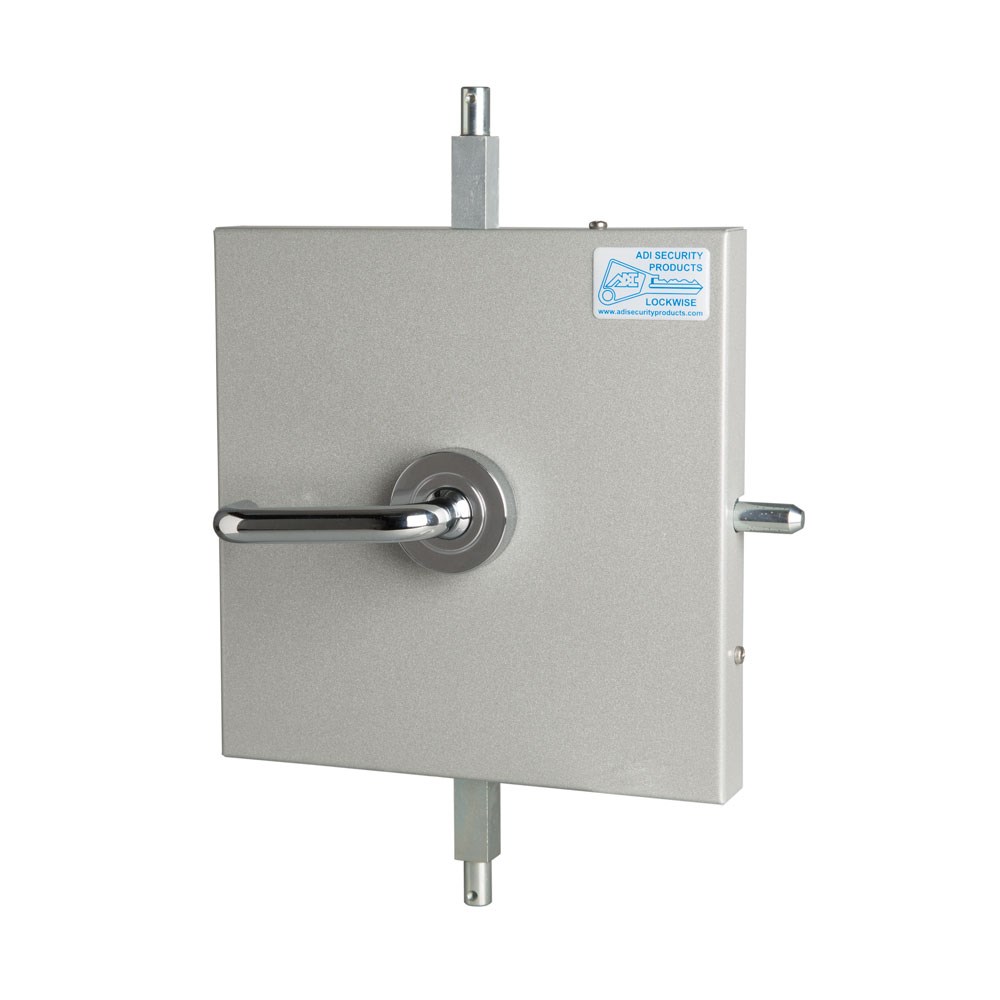

Lever inside, external access locking knob outside suits Left Hand doors.

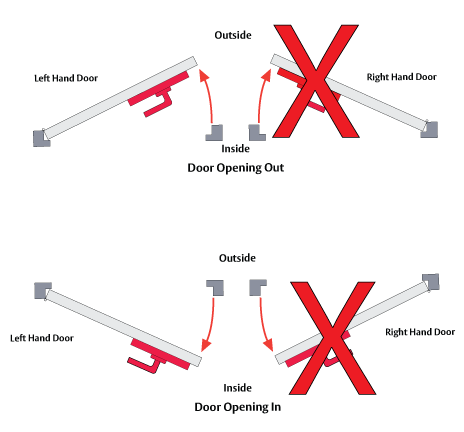

These units are handed and must be handed as per the guide below.

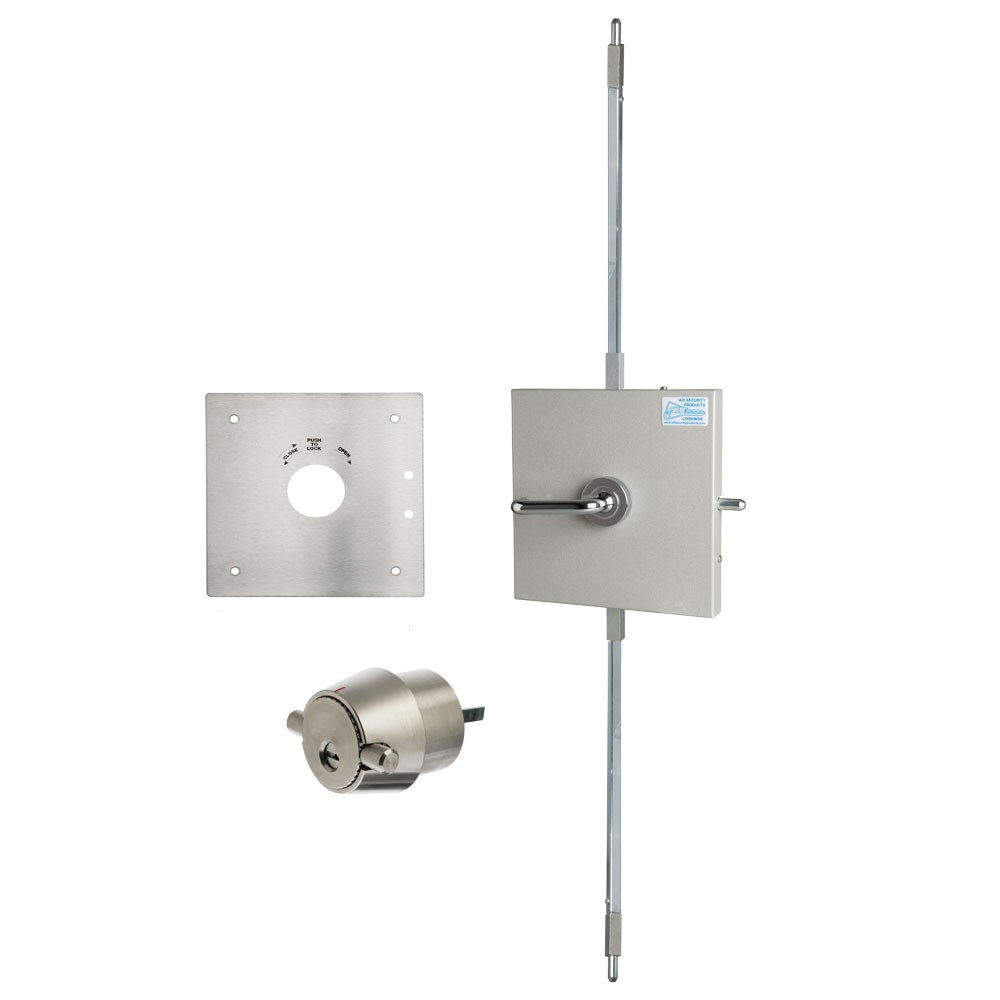

3 point locking bar.
Designed to cover existing mortice lock or lockset.

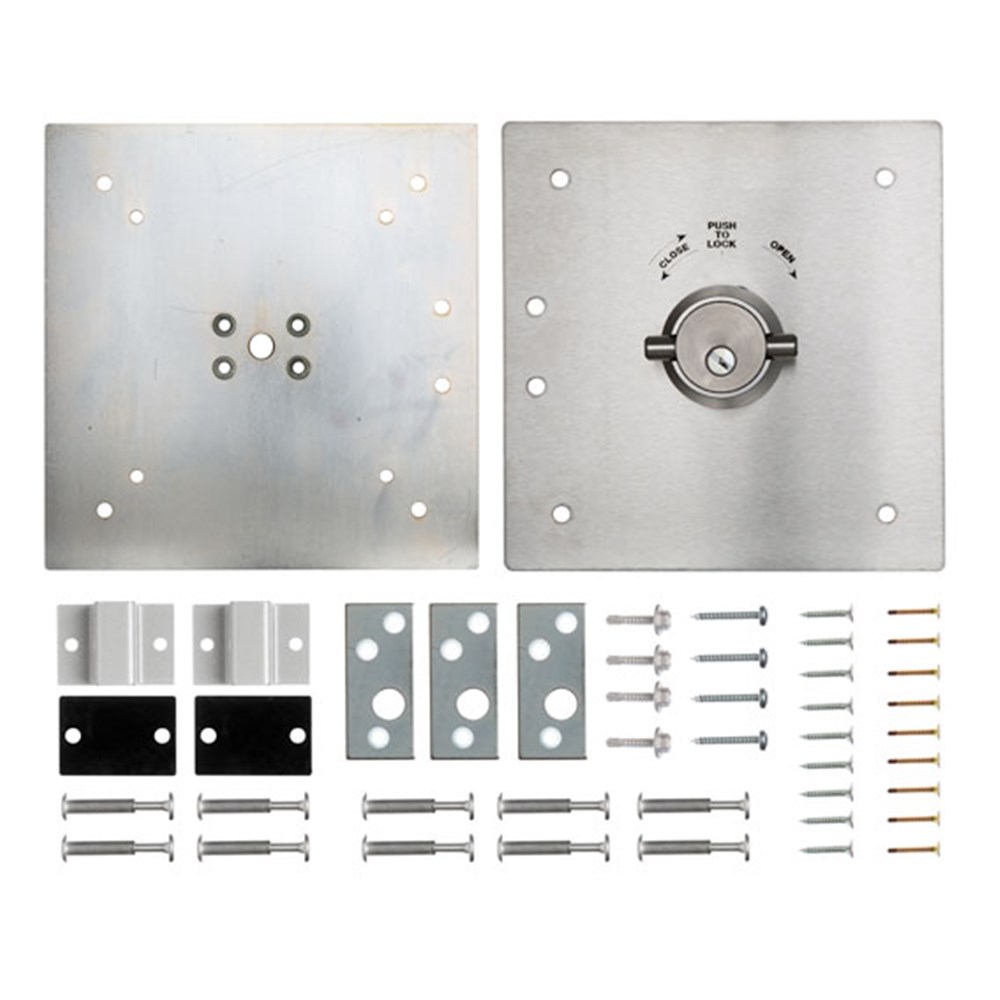

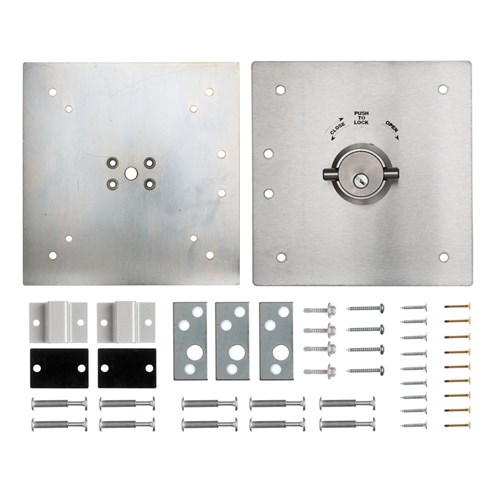

Through fixes to external stainless steel plate.
Suitable for doors where egress & external access is required.
Stainless steel push to lock security knob with 75 mm T-bar handle.

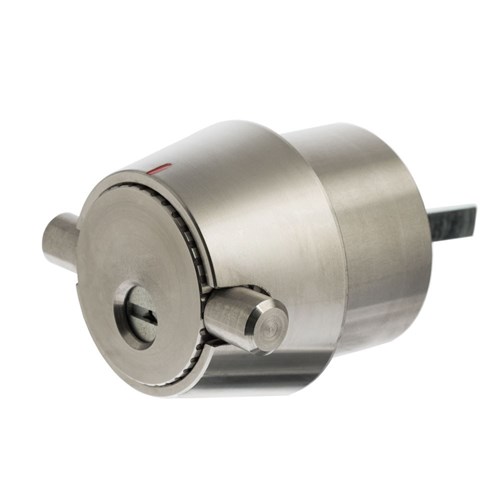

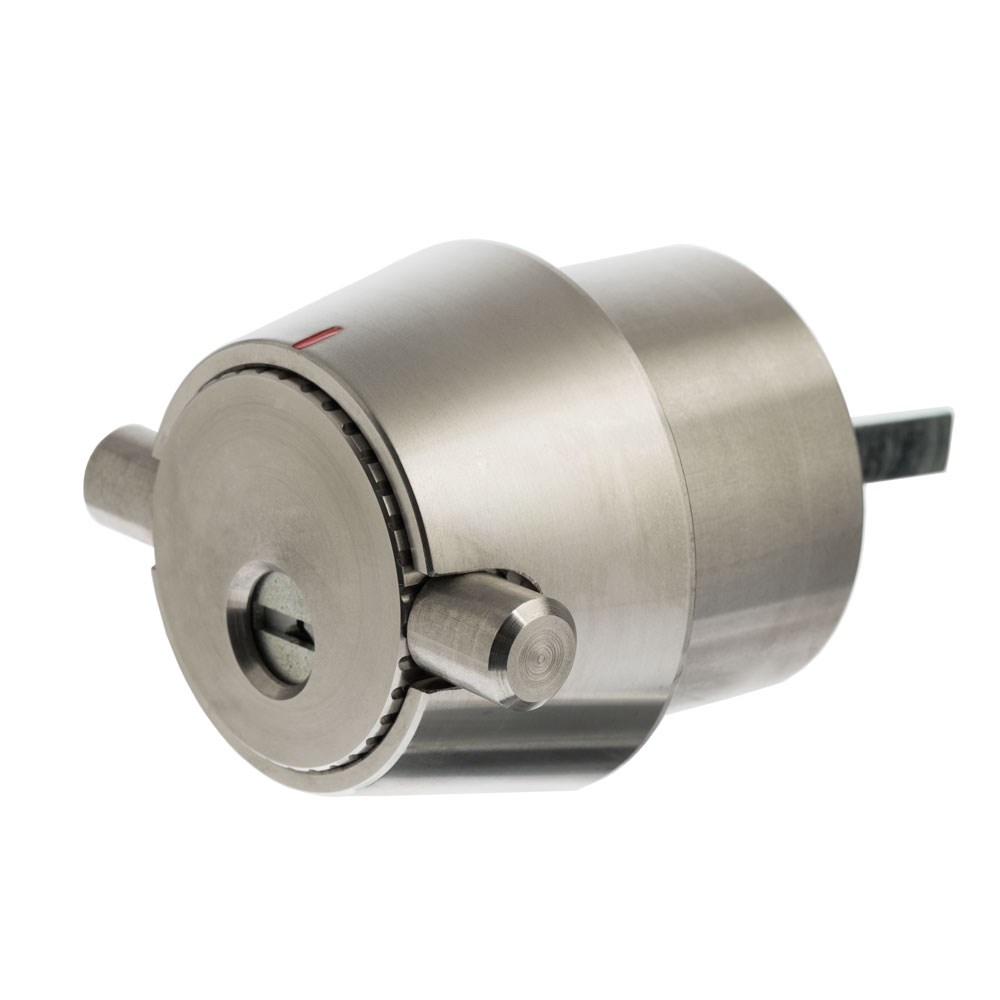

Incorporates the industry standard 570 oval cylinder.
Compatible with most restricted keying systems.
Suits doors up to 2200 mm.
12.5 mm diameter bolt with 28 mm throw.
Base unit is suitable for open out doors.
Open-in kits are available.
Left handed.
Easy to install.
Full range of accessories available.
Not suitable for fire doors.

Technical Specifications

Brand	ADI
Compatible With Most Restricted Keying Systems	Yes
Finish	Powder Coated Grey
Lock Status Indicator	No
Cylinder Not Included	No
External Key Access	Yes
Country Of Manufacture	Australia
Handing	Left Hand
Maximum Door Leaf Height in mm	2200
Locking Mode	Locking - Horizontal & Vertical
Number Of Locking Points	2
