ADI 702 Series Locking Bars

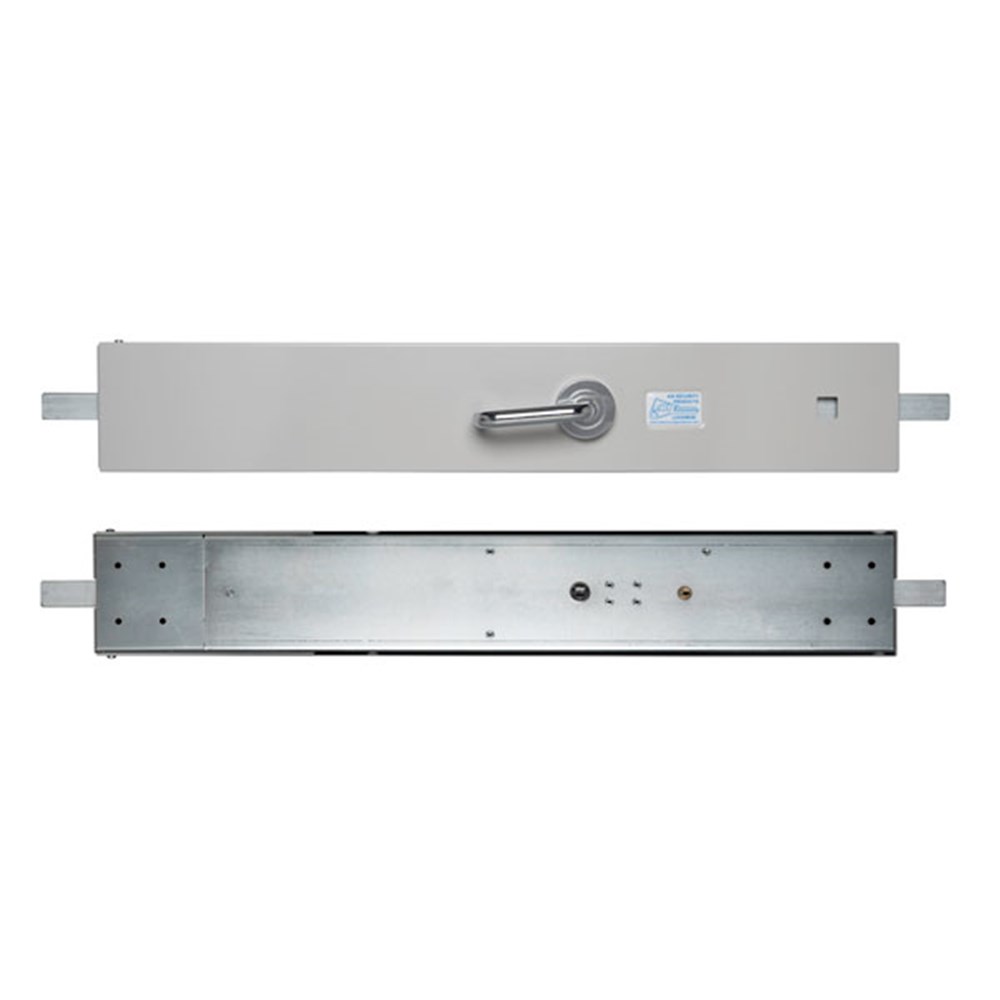

ADI 2 Point Locking Bar LB702-1 LH with Internal Lever and External Lever, Key Locking and Indicator for Doors 770-930mm - ADILB7021LH

Product Code: ADILB7021LH

Are you a tradesperson?

Get access to our best prices



Description

ADI locking bars are suitable for use in industrial and commercial buildings, institutions, clubs, schools, hospitals, hotels and similar buildings.

High security multi-point locking device that can be mounted horizontally to any solid core door.

Lever inside, outside lever locked or unlock by 201 cylinder. Suits Left Hand doors.

information-icon These units are handed and must be handed as per the guide below.

  • Two point left hand locking barrier bar.
  • Opens with single action lever handle inside.
  • Cylinder locks & unlocks outside lever.
  • Suits 201 cylinder (not included).
  • Stainless steel security escutcheon with harden anti-drill insert.
  • Stainless steel external handle mount plate with through fixings.
  • Compatible to most inline restricted keying system.
  • Indicating window turn red when unlocked.
  • Suitable for timber and metal frame applications.
  • Can be used on inward or outward opening doors.
  • Supplied with inward & outward opening strikes.

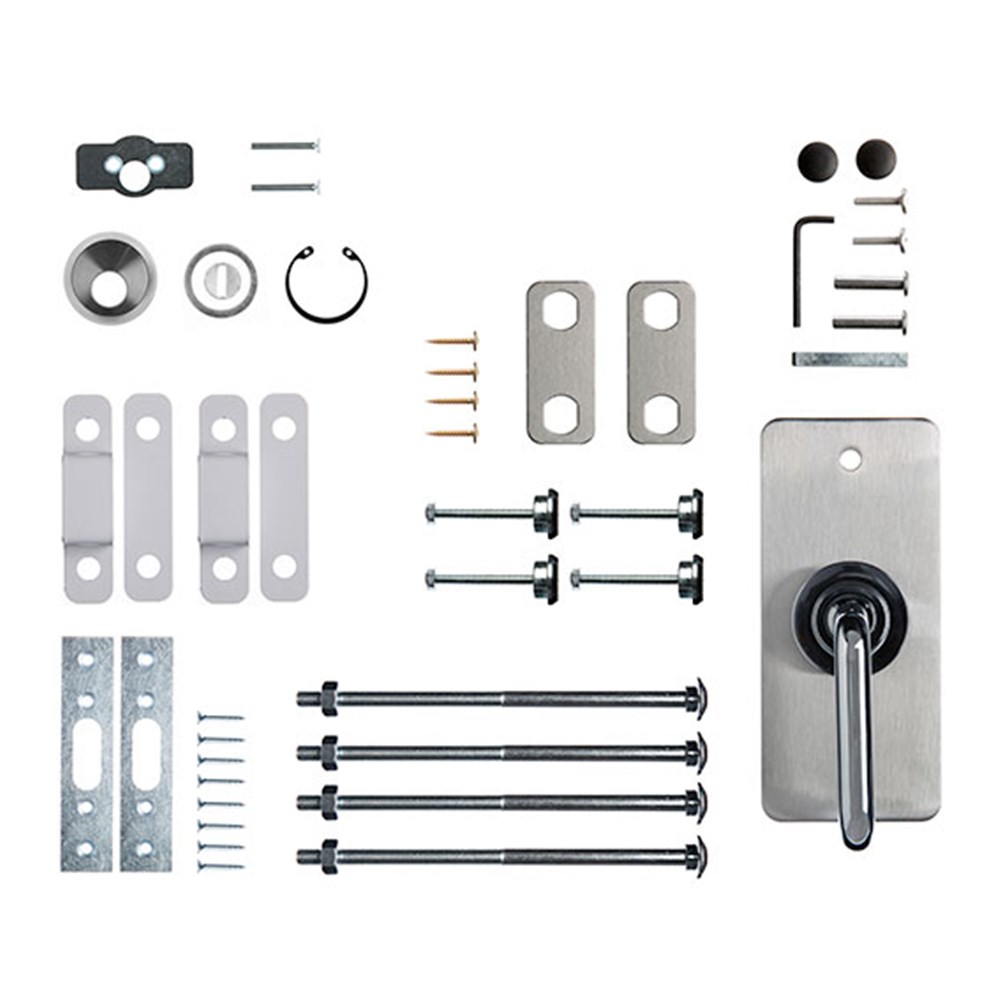

  • Supplied with all mounting components & templates.
  • Adjustable width from 770 to 930 mm.
  • 45 mm throw-on bolt.
  • Available in 3 sizes.
  • Australian Made and Owned.
  • Power coated grey.
Technical Specifications
Brand ADI
Compatible With Most Restricted Keying Systems Yes
Finish Powder Coated Grey
Lock Status Indicator Yes
Adjustable Width From 770 mm to 930 mm
Cylinder Not Included Yes
External Key Access Yes
Country Of Manufacture Australia
Handing Left Hand
Suits Door Width 770 mm to 930 mm
Has Lever Handle On Outside Yes
Locking Mode Locking - Horizontal
Number Of Locking Points 1
