This product is a special order (BTO) and is not returnable.

CPU 533MHz DSP
Memory 8MB flash 16MB RAM
Fingerprint Sensor 500 dpi optical sensor
Identification Speed 2,000 matches in 1 secon
Fingerprint Capacity 5,000 fingerprints (10,000 templates)
Log Capacity 50,000 events
RF Card Mifare (13.56 MHz), EM(125 KHz)
Authentication Finger / PIN / Card
Network Interface TCP/IP, RS485
Wiegand 1 channel (input/output switchable)
TTL I/O 2 inputs for exit switch and door sensor Internal Relay Deadbolt, EM lock, door strike, automatic door Ingress
Protection Rate IP65 class
LCD 128 x 64 pixel, black & white
Keypad 3 x 4 keypad, 3 navigation keys
Sound and Interface Multi-color LED and multi-tone buzzer
Operating Voltage 12VDC
Operating Temperature - 20â„ƒ~ 50â„ƒ (-5â„‰ ~ 122â„‰)
Size 60mm × 185mm × 40mm (W × H × D)

Brand	SUPA
Finish	Black
IP Rating	IP65
Working Voltage	12 Vdc
Biometric Fingerprint Access	Yes
Depth in mm	40
Overall Length in mm	185
RJ45 Ethernet Interface	Yes
Width in mm	60
RS-485 Interface	Yes
Accepts PIN Code	Yes
Accepts RFID Cards/Fobs	Yes

Search Results

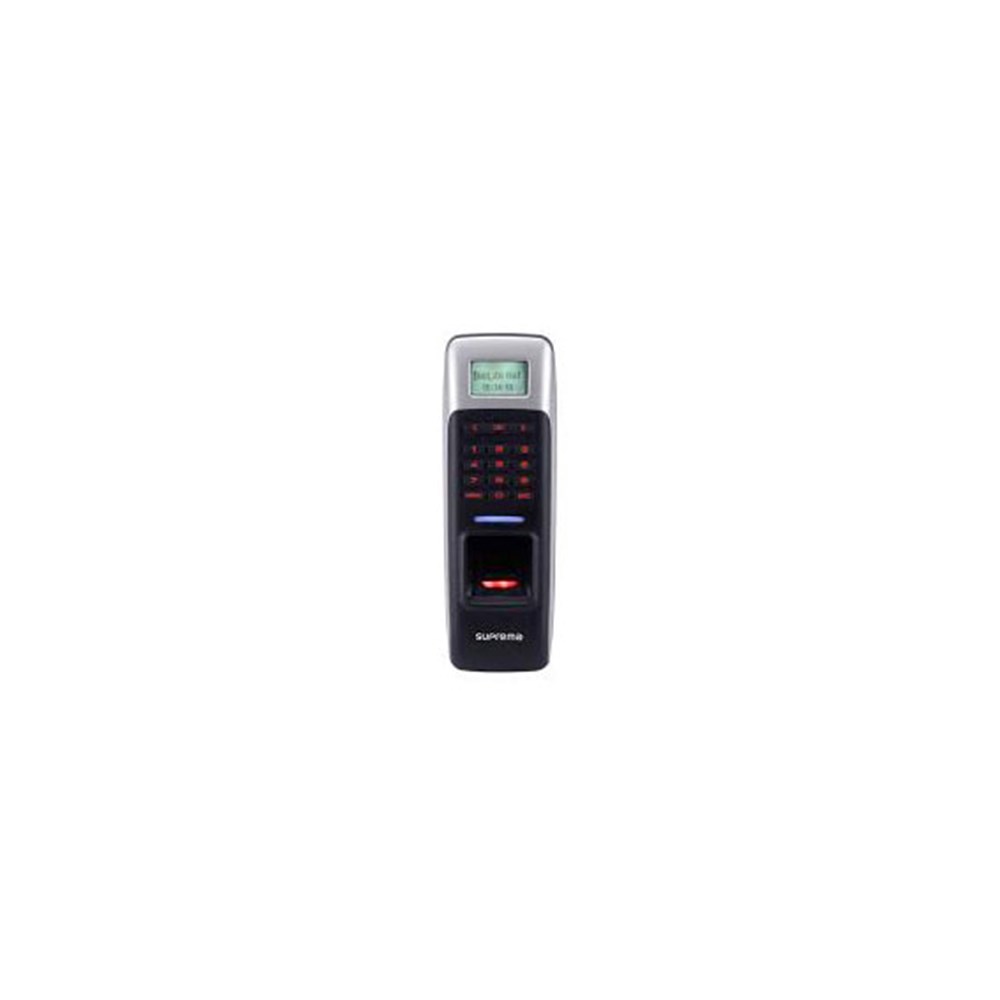

BIO ENTRY LIT NET FINGER PRINT EM PROX and CODEPAD
