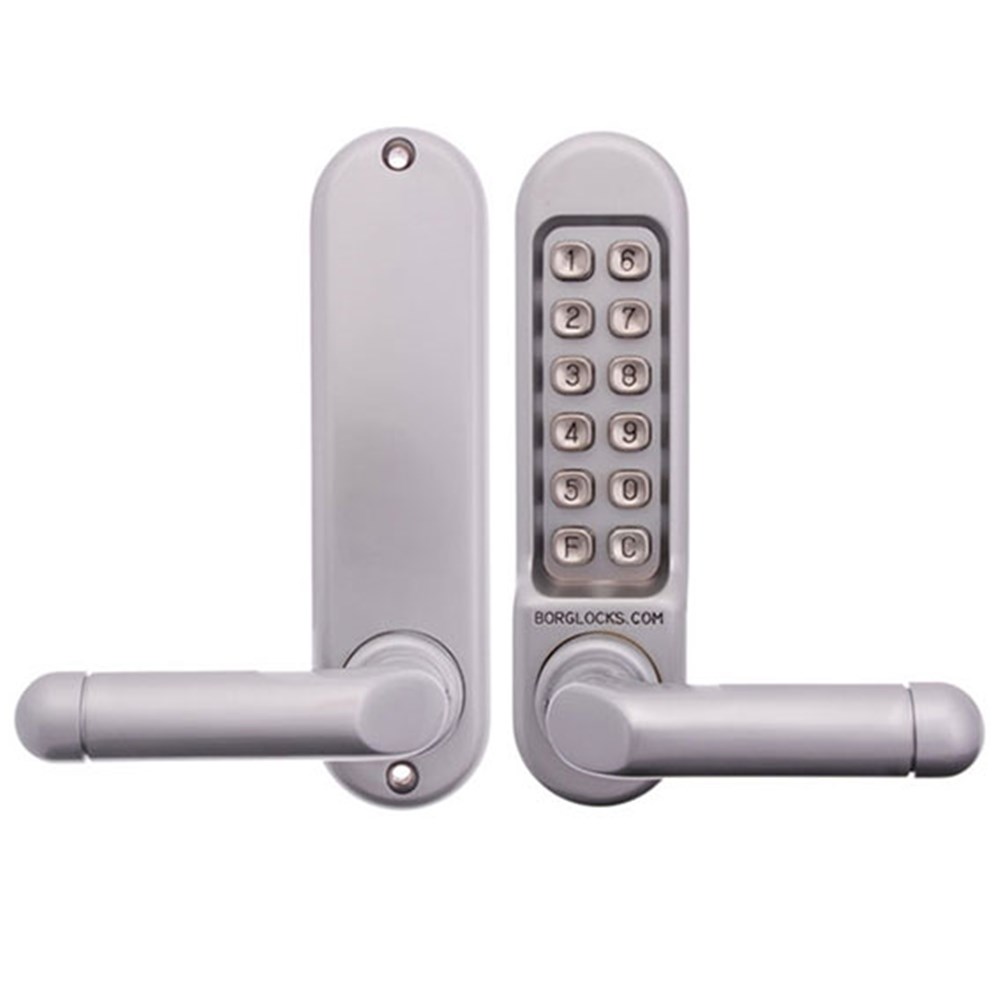

Borg Mechanical Digital Door Lock with Lever Satin Chrome - BL5201SC

Product Code: BL5201SC

Description

The BL5000 series are designed for light to medium duty applications. Its full size straight lever handles combined with its large 10 digit keypad enables the 5000 to control access in a wide variety of applications.

Other key features clutched handle which protects against forced entry and lock damage, optional free passage function, an 8 mm square drive so it can operate a wide range of leading brands of lock.

BL5000 series without passage function, with F tumbler replaced by a coded or non-coded tumbler - number of combinations = 2048
BL5000 series with passage function - number of combinations = 1024

Fully mechanical digital lock.
60 mm heavy duty tubular latch.
12 mm bolt projection.
Full size straight lever handles.
Clutching lever protection.
Optional passage function (if required).
Large indented buttons for ease of use.
Fully reversible.
Easy code change procedure.
Suits doors from 35-54 mm thick.
Up to 2048 codes to choose from.
Designed for light to medium usage areas
Not suitable for use in high traffic commercial areas.
Suitable for internal use.
Finished in satin chrome.

Technical Specifications

Brand	BORG
Accepts Single PIN Code Only	Yes
Finish	Satin Chrome
Has Holdback	No
Has Key Override	No
Has Levers On Both Sides	Yes
Has Passage Function (DIGITAL11)	Yes
Mechanical Digital Lock	Yes
On-door Code Change	No
Suits Door Thickness	35 mm to 54 mm
Backset	60 mm
