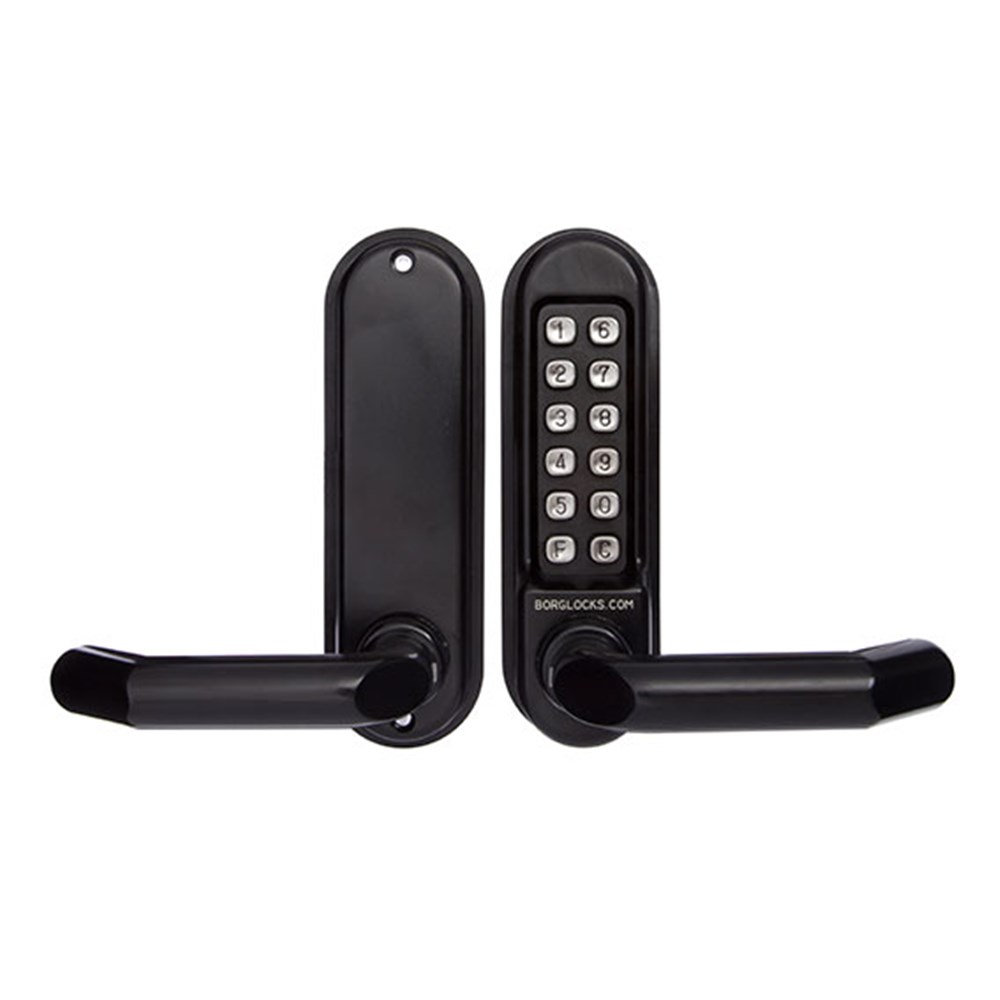

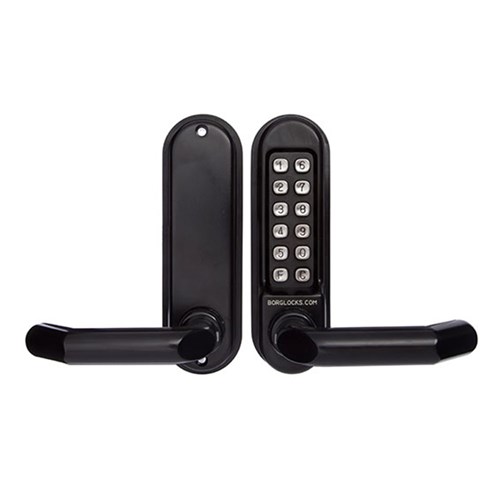

Borg Mechanical Digital Door Lock with Lever Marine Grade Black - BL5001MGPRO

Product Code: BL5001MGPRO

Are you a tradesperson?

Get access to our best prices



Description

The Marine Pro Series range of products has been developed specifically for marine applications.

Manufactured to the highest standards using 316 stainless steel for all of the critical internal components.

The Marine Pro Grade series has undergone extensive testing to ensure that the coding chamber is resistant to salt water corrosion.

Combined with the new matt black Marine Pro grade finish giving the series even more protection against harsh environments.

Vandal resistant clutching lever with large indented push buttons.

firerated-icon Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.

information-icon BL5000 series without passage function, with F tumbler replaced by a coded or non-coded tumbler - number of combinations = 2048
BL5000 series with passage function - number of combinations = 1024

  • Fully mechanical Marine Pro grade digital lock.
  • 8 mm square drive suitable for mortice locks.
  • 60 mm heavy duty stainless steel tubular latch.
  • Curved lever design with clutch protection.
  • Optional free passage (if required).
  • 316 grade stainless steel internal components.
  • New matt black Marine grade finish.
  • Large indented buttons.
  • Fully reversible.
  • Suits doors from 35-80 mm thick.
  • Up to 2048 codes to choose from.
  • Designed for light to medium usage areas
    Not suitable for use in high traffic commercial areas.
  • Saltwater tested.
  • Suitable for external use.
  • Guaranteed to resist corrosion for up to 1 year.
  • Available in black only.
  • Fire rated.
Technical Specifications
Brand BORG
Accepts Single PIN Code Only Yes
Finish Black (Marine Grade Pro)
Has Holdback No
Has Key Override No
Has Levers On Both Sides Yes
Has Passage Function (DIGITAL11) Yes
Mechanical Digital Lock Yes
On-door Code Change No
Suits Door Thickness 35 mm to 80 mm
Weather Resistant Yes
Backset 60 mm
Fire Rated Yes
