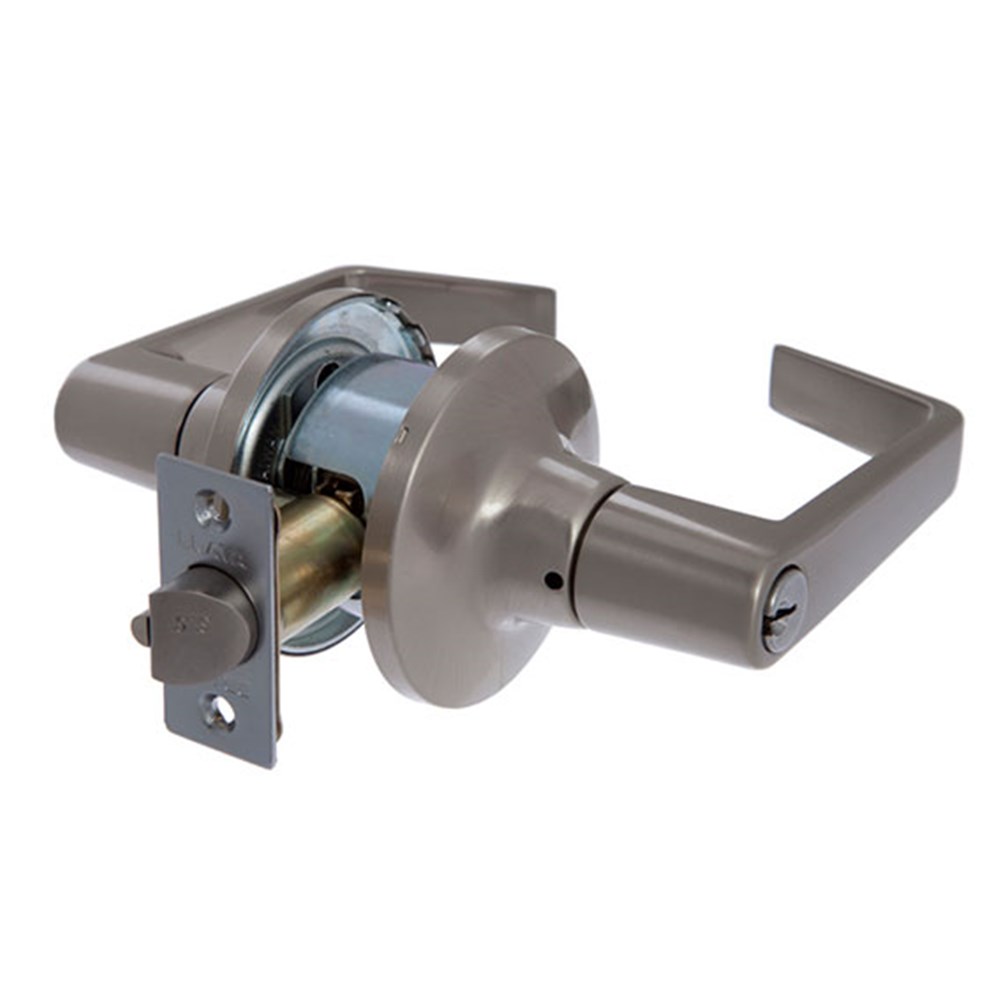

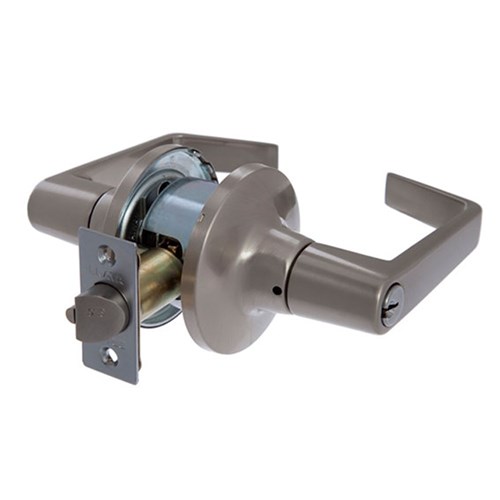

BRAVA Metro RH Series Tiebolt Classroom Lever Set Adjustable Backset Satin Chrome - RH6012SC

Product Code: RH6012SC

Are you a tradesperson?

Get access to our best prices



Description

BRAVA Metro RH6000 series commercial grade tiebolt classroom leverset.

firerated-icon Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.

Classroom function

  • Outside key locks and unlocks outside lever
  • Inside lever free at all times

Additional info

  • Tiebolt concealed fixing.
  • Silca LW5 profile.
  • Incorporates the popular PD 8221 barrel.
  • Compatible with most restricted keying systems.
  • Boxed and colour coded.
  • 2 keys supplied.
  • Finished in satin chrome.
Door thickness 35mm - 45mm
Backset 60/70mm adjustable latch
max. Lever / knob projection
distance may not include turnsnib
68mm
Strike 70mm x 28mm x 2mm
Latch 60/70mm adjustable
Latch face plate 25mm x 57mm
Cylinder LW5 profile
Door handing Non-handed levers
Rose 75mm
Technical Specifications
Brand BRAVA
AS1428.1 Compliant Lever (AS1428.1CO) No
Clutching Levers No
Finish Satin Chrome
Function Classroom
Lock Grade Commercial
Lock Type Tiebolt
Rose Diameter (in mm) 75
Suits Door Thickness 35 mm to 45 mm
Backset 60/70 mm Adjustable
Fire Rated Yes
