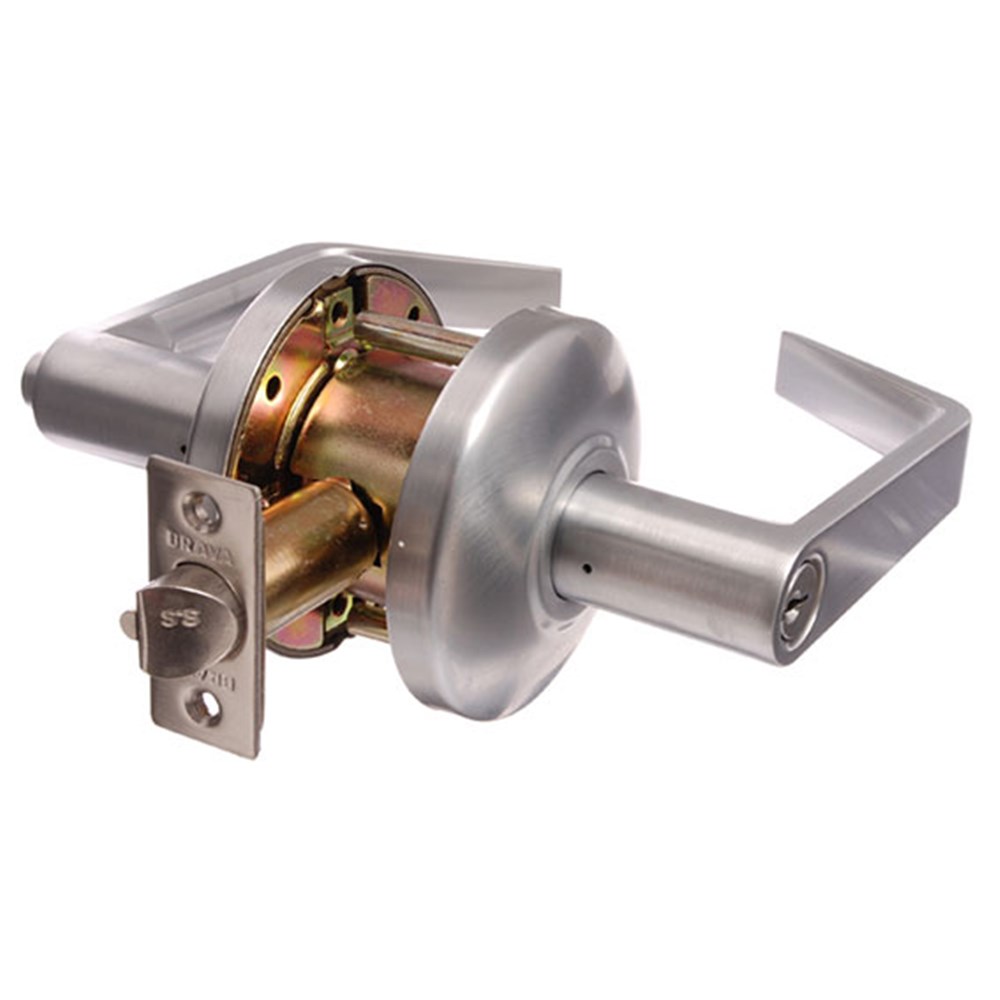

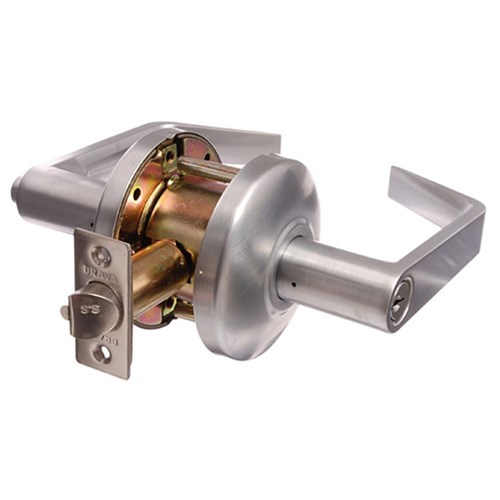

BRAVA Metro EU Series Entrance Lever Set Non-Clutching 70mm Backset Satin Chrome - EU6000SC70

Product Code: EU6000SC70

Are you a tradesperson?

Get access to our best prices



Description

BRAVA Metro EU6000 series entrance leverset. Commercial grade.

firerated-icon Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.

Entrance function

  • Outside key unlocks outside lever.
  • Inside lever free at all times, push button locks outside lever.

Additional info

  • Non clutching.
  • Screw post to prevent lock rotation are removable.
  • Charlotte lever design.
  • Cylindrical fixing.
  • Silca LW5 profile 6 pin cylinder.
  • Incorporates the popular PD 8221 barrel.
  • Compatible with most restricted keying systems.
  • Boxed and colour coded.
  • 2 keys supplied.
  • Fire rated.
  • Finished in satin chrome.

Specifications

Door thickness 35 mm - 51 mm
Backset 70 mm
max. Lever / knob projection
distance may not include turnsnib
72.5 mm
Strike 28 mm x 70 mm x 2 mm
Latch 70 mm (12.7 mm throw)
Latch face plate 57 mm x 25 mm
Cylinder LW5 profile
Door handing Non-handed levers
Rose 85 mm

Technical Specifications
Brand BRAVA
AS1428.1 Compliant Lever (AS1428.1CO) No
Clutching Levers No
Finish Satin Chrome
Function Entrance
Lock Grade Commercial
Lock Type Cylindrical
Rose Diameter (in mm) 85
Suits Door Thickness 35 mm to 45 mm
Backset 70 mm
Fire Rated Yes
