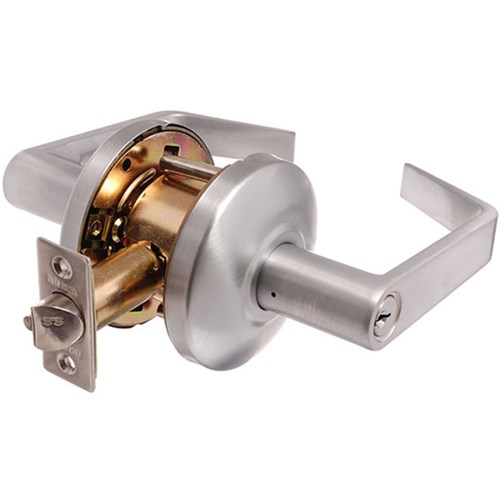

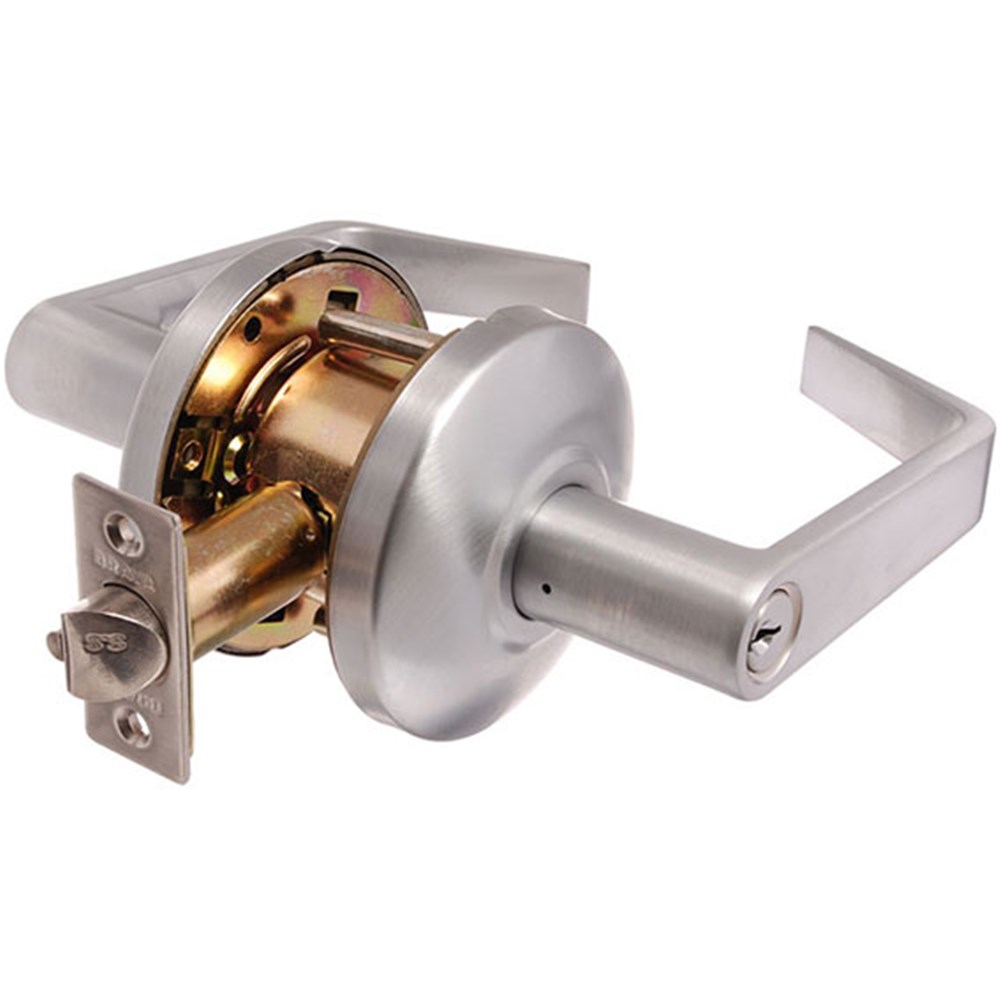

BRAVA Metro EV Series Glass Door Lever Set Clutching 70mm Backset Satin Chrome - EV6011SC70

Product Code: EV6011SC70

Are you a tradesperson?

Get access to our best prices



Description

BRAVA Metro EV6000 series commercial grade glass door leverset with clutching levers.

firerated-icon Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.

Glass door function

  • Outside key locks and unlocks both levers.
  • Inside key locks and unlocks both levers.

Additional info

  • Clutching lever feature to prevent forcing.
  • Screw post to prevent lock rotation are removable.
  • Charlotte lever design.
  • Cylindrical fixing.
  • Silca LW5 profile 6 pin cylinders.
  • Incorporates the popular PD 8221 barrels.
  • Compatible with most restricted keying systems.
  • Boxed and colour coded.
  • 2 keys supplied.
  • Fire rated.
  • Finished in satin chrome.

Specifications

Door thickness 35mm - 51mm
Backset 70mm
max. Lever / knob projection
distance may not include turnsnib
72.5mm
Strike 28mm x 70mm x 2mm
Latch 70mm (12.7mm throw)
Latch face plate 57mm x 25mm
Cylinder LW5 profile
Door handing Non-handed levers
Rose 85mm
Technical Specifications
Brand BRAVA
AS1428.1 Compliant Lever (AS1428.1CO) No
Clutching Levers Yes
Finish Satin Chrome
Function Glass Door
Lock Grade Commercial
Lock Type Cylindrical
Rose Diameter (in mm) 85
Suits Door Thickness 35 mm to 51 mm
Backset 70 mm
Fire Rated Yes
