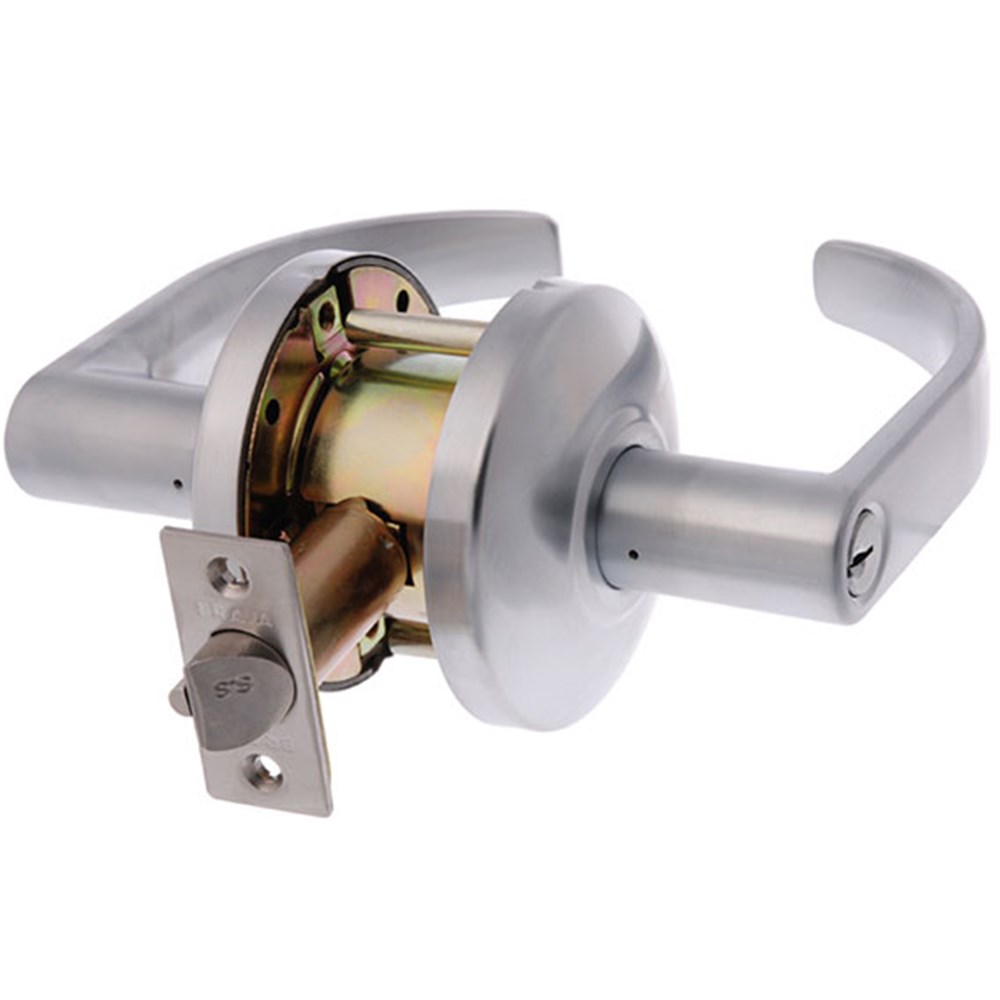

BRAVA Metro EV Series Institution Lever Set Clutching 70mm Backset Satin Chrome - EV8061SC70

Product Code: EV8061SC70

Are you a tradesperson?

Get access to our best prices



Description

BRAVA Metro EV8000 series commercial grade institutional leverset with clutching levers.

firerated-icon Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.

Institution function

  • Key from either side retracts latch only.
  • Levers on both sides clutching at all times.

Additional info

  • Clutching levers feature to prevent forcing.
  • Screw post to prevent lock rotation are removable.
  • Carolina lever design.
  • Cylindrical fixing.
  • Silca LW5 profile 6 pin cylinders.
  • Incorporates the popular PD 8221 barrels.
  • Compatible with most restricted keying systems.
  • Boxed and colour coded.
  • 2 keys supplied.
  • Fire rated.
  • Finished in satin chrome.

Specifications

Door thickness 35 mm - 51 mm
Backset 70 mm
max. Lever / knob projection
distance may not include turnsnib
72.5 mm
Strike 28 mm x 70 mm x 2 mm
Latch 70 mm (12.7 mm throw)
Latch face plate 57 mm x 25 mm
Cylinder LW5 profile
Door handing Non-handed levers
Rose 85 mm

Technical Specifications
Brand BRAVA
AS1428.1 Compliant Lever (AS1428.1CO) No
Clutching Levers Yes
Finish Satin Chrome
Function Institution
Lock Grade Commercial
Lock Type Cylindrical
Rose Diameter (in mm) 85
Suits Door Thickness 35 mm to 51 mm
Backset 70 mm
Fire Rated Yes
