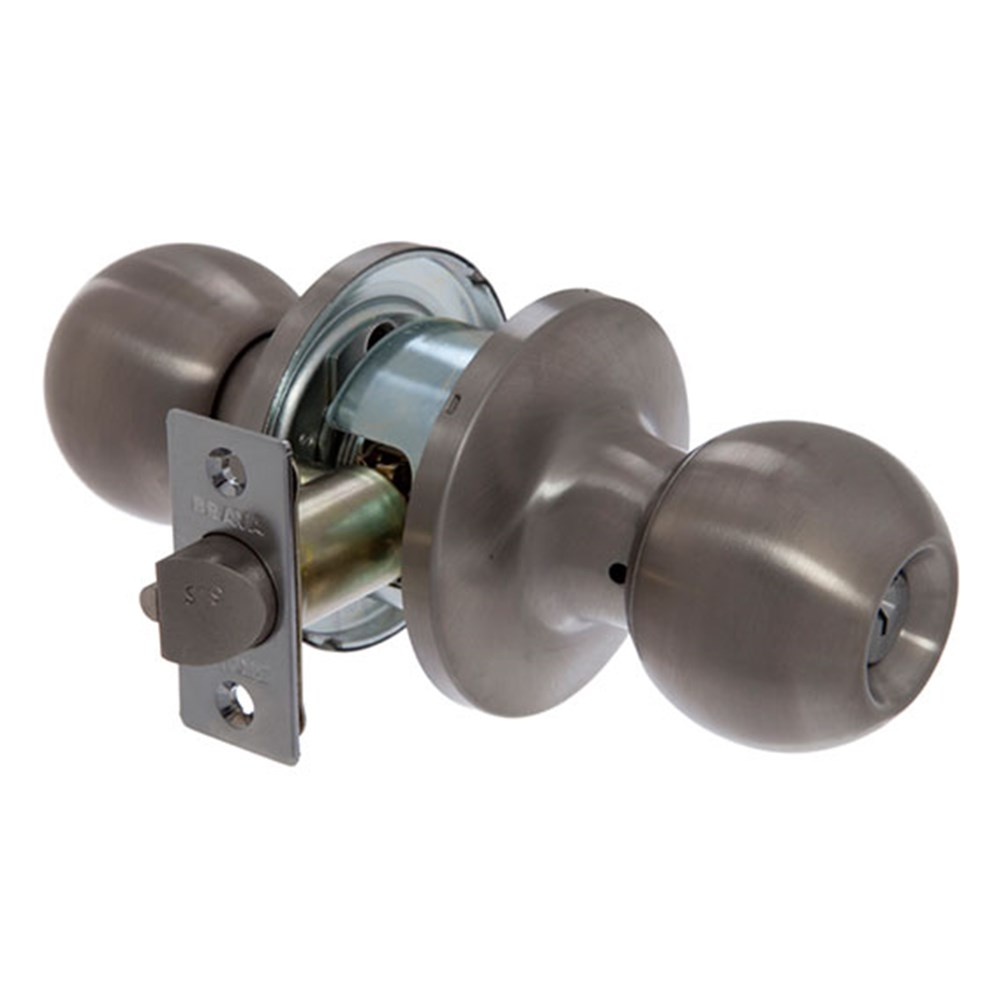

BRAVA Metro RA Series Tiebolt Storeroom Knob Set Adjustable Backset Satin Stainless Steel - RA3062SS

Product Code: RA3062SS

Are you a tradesperson?

Get access to our best prices



Description

BRAVA Metro RA3000 series commercial grade tiebolt 60-70 mm backset storeroom knobset.

firerated-icon Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.

Storeroom function

  • Outside knob unlocked by key, knob retracts the latch.
  • information-icon Outside knob can not be left unlocked, key retained.
  • Inside knob free at all times.

Additional info

  • Tiebolt concealed fixing.
  • Silca LW5 profile.
  • Incorporates the popular PD 8221 barrel.
  • Compatible with most restricted keying systems.
  • Boxed and colour coded.
  • 2 keys supplied.
  • Fire rated.
  • Finished in satin chrome.
Door thickness 35mm - 45mm
Backset 60/70mm adjustable latch
max. Lever / knob projection
distance may not include turnsnib
73mm
Strike 70mm x 28mm x 2mm
Latch 60/70mm adjustable
Latch face plate 25mm x 57mm
Cylinder LW5 profile
Door handing Non-handed levers
Rose 75mm

Technical Specifications
Brand BRAVA
Finish Satin Stainless Steel
Function Storeroom
Lock Grade Commercial
Lock Type Tiebolt
Rose Diameter (in mm) 75
Suits Door Thickness 35 mm to 45 mm
Backset 60/70 mm Adjustable
Fire Rated Yes
