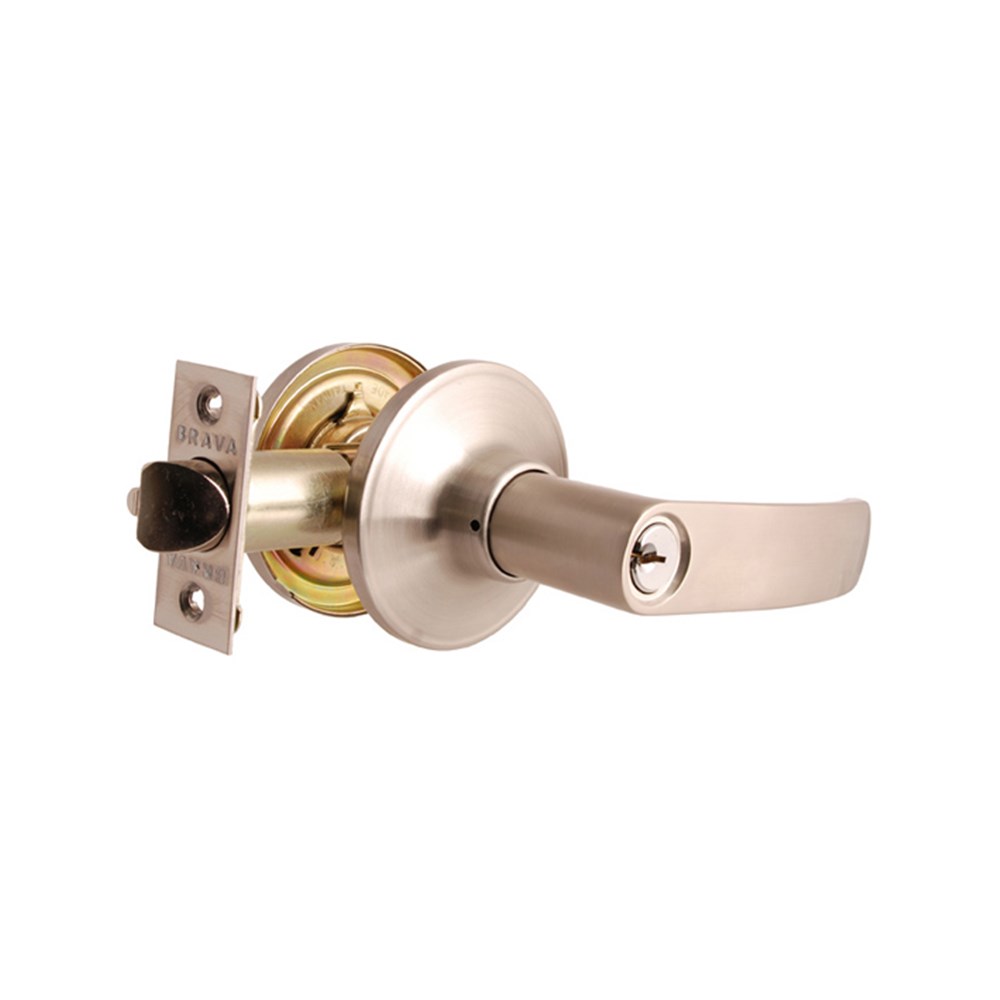

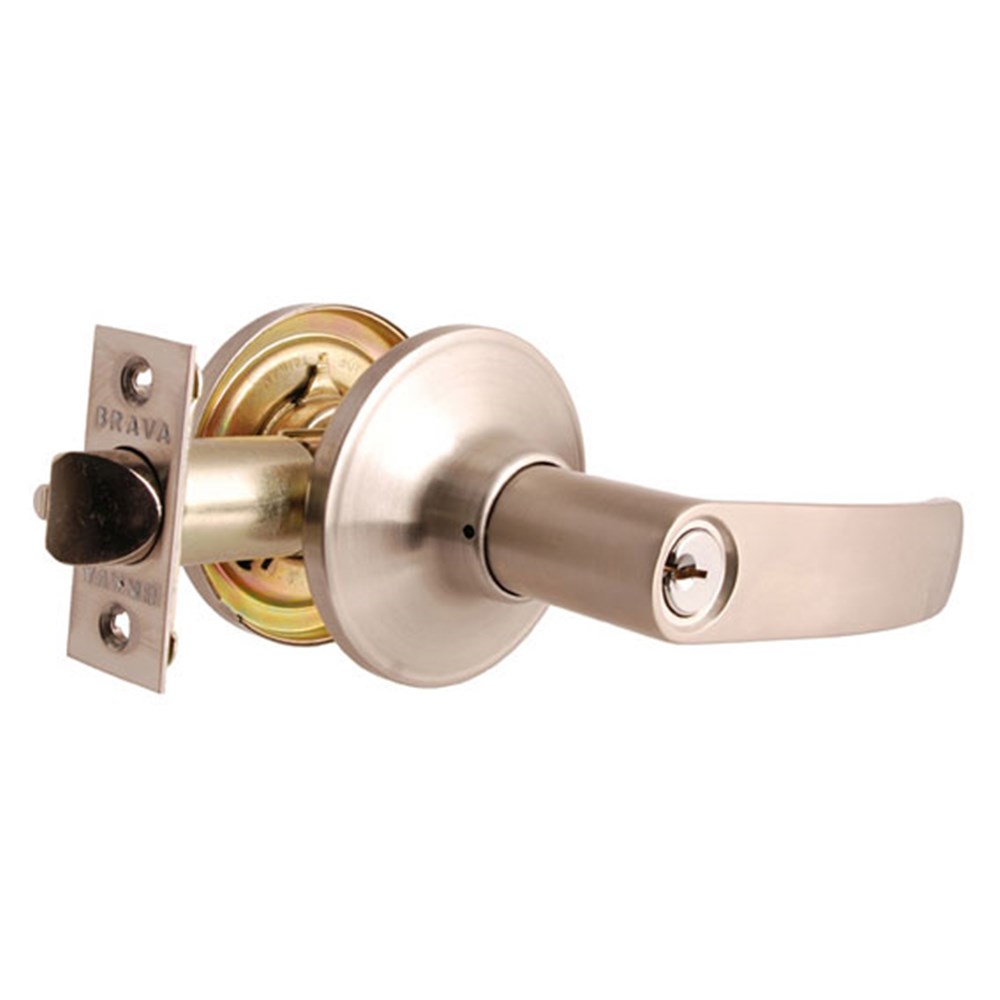

BRAVA Urban LYR Series Tiebolt Entrance Lever Set LW4 Keyed to Differ Adjustable 60/70mm Backset Satin Stainless Steel - LYR600B

Product Code: LYR600B

Are you a tradesperson?

Get access to our best prices



Description

BRAVA Urban LYR series concealed fix entrance leverset. Domestic grade entrance leverset.

Entrance function

  • Key outside locks and unlocks both levers.
  • Turnsnib inside, locks and unlocks both levers.

Additional info

Tiebolt concealed fixing.

Silca LW4 profile.(Rekeyable to 6 pin LW5)

Construction keyable on all chambers.(Using BRUCKBALL)

Horizon lever design.

2 keys supplied.

Finished in satin stainless steel.

Supplied boxed (and colour coded) with mounting hardware.

Door thickness 35-51mm
Backset adjustable 60/70mm
max. Lever / knob projection
distance may not include turnsnib
60.5mm
Strike 70mm x 27mm x 1.2mm
Latch adjustable 60/70mm
Latch face plate 57mm x 25mm
Cylinder LW4 profile
cylinder is 6pin capable (LW5)
Door handing Non-handed levers
Rose 66.5mm
Technical Specifications
Brand BRAVA
Display Pack No
Finish Satin Stainless Steel
Function Entrance
Lever Shape Horizon
Lock Grade Domestic
Lock Type Tiebolt
Rose Diameter (in mm) 66.5
Suits Door Thickness 35 mm to 51 mm
Backset 60/70 mm Adjustable
Key Profile LW4
