Product Code: CS8302

Description

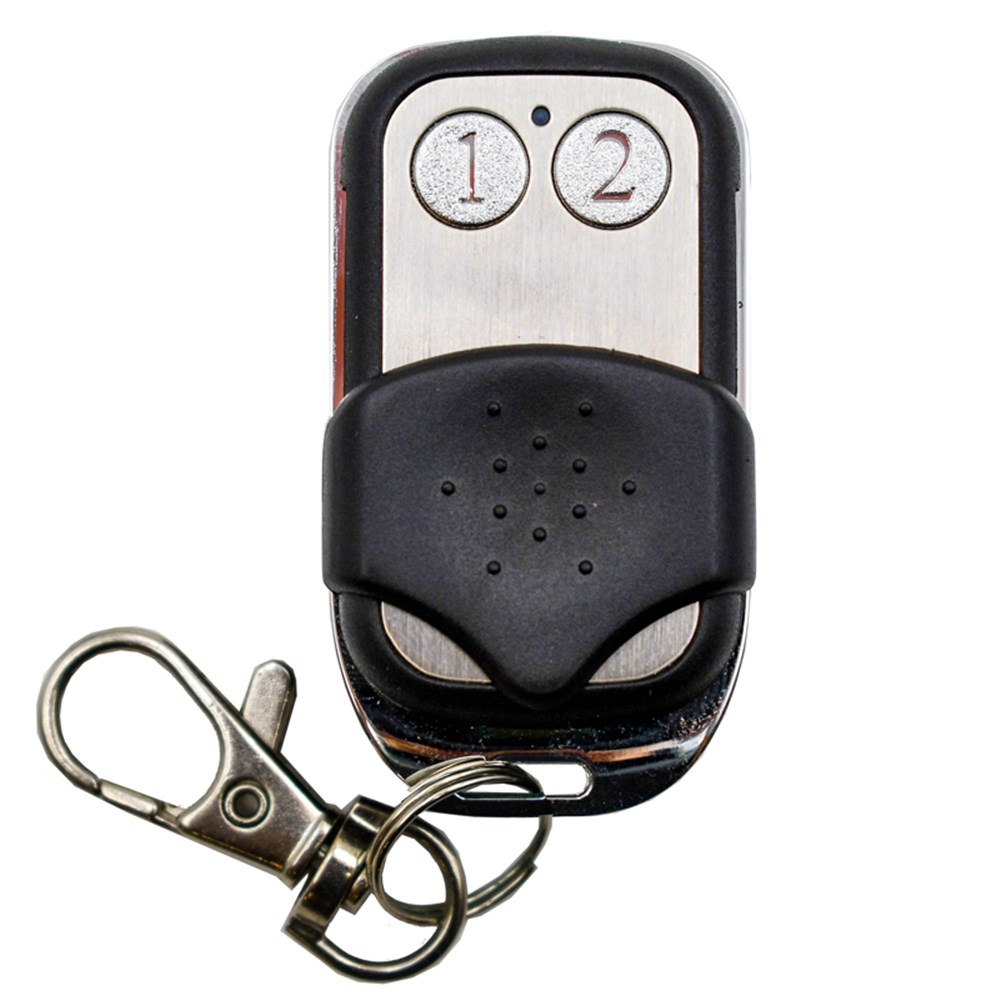

Secure Two-button, 433.92 MHz radio-frequency (RF) Keyfob Transmitter offering access control user authentication using RF transmission.

Suitable for applications such as carpark access.

Default Programming: Numbering (site code and number) is pre-programmed and not customisable.

If custom numbering is required, please order using part number CS8302C.

Optional Internal Tag: Keyfobs can be fitted with an optional EM, HID, HID iClass or Mifare Classic internal tag. Please contact for additional costings.

Compatible with:

CS8201 Standalone RF Receiver.
CS8202 Wiegand Output RF Receiver.
CS8203 Standalone RF Receiver, IP65 Housing.
CS8204 Wiegand Output RF Receiver, IP65 Housing.

Specification:

Number of channels; 3 (two-button. Press button 1 and 2 together outputs channel 5).
Operating Frequency 433.92MHz.
Transmission Security Keeloq™ Code Hopping Technology.
Transmission Modulation AM ASK.
Wiegand 26 bit standard number encoding.
Battery type 1 x CR2032 lithium cell.
RF Range 100m open air.
RF Range 30m typical urban environment.
Operating temperature range -10° C to 50° C.
C-Tick, CE Approvals.
Standard receiver (CS8201) supplied separately.
Wiegand receiver (CS8202) supplied separately.
