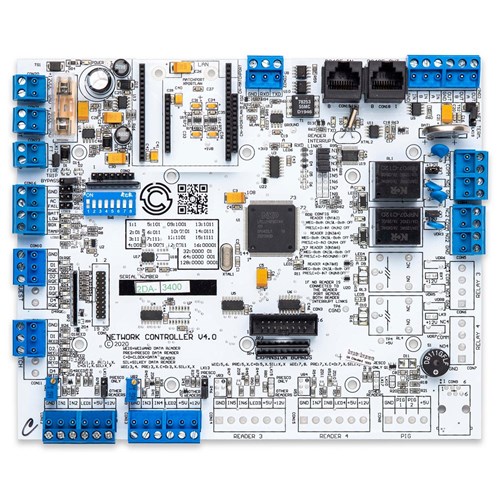

Product Code: CSEVO2

Description

The CS Technologies access control system allows powerful management of access to doors, alarm areas and also provides cost-effective energy management. The system consists of a network of controllers each of which controls a group of doors.

Each controller is fully distributed, and contains all programming necessary for seamless continuous operation regardless of the rest of the system or PC connections.

A total of 128 intelligent controllers can be linked per site.

2 door version ideal for smaller sites.
Up to 128 network controllers per location.
Communication via comms converter (CS4600).
TCP/IP or WiFi comms modules available.
Door open too long and forced door alarms.
Compatible with most readers.
Supported readers: Wiegand, Silicon Key, Presco and Clock Data.
Unlimited system site codes.
2000 users per controller.
1000 transactions.
20 standard and 20 extended time zones.
64 access levels per controller.
64 access levels per user.
Expandable to 250 inputs and 250 relays per controller.
Anti-pass back support – hard or soft.
Mantrap feature.
Car parking control.
Time and attendance.
After hours air conditioning control and billing.
Lighting control.
100% Australian made and designed.

Technical Specifications

Brand	CS TECHNOLOGIES
Audit Trail	Yes
Working Voltage	12 Vdc
Amount of User Codes	2000
Country Of Manufacture	Australia
RS-485 Interface	Yes
How Many Digital Inputs	12
How Many Outputs	2
How Many PIG Ports	0
Maximum Number of Controllers	128
Number Of Doors Controllable	2
Number Of Time Zones	40
Type Of Board/Controller	Controller
