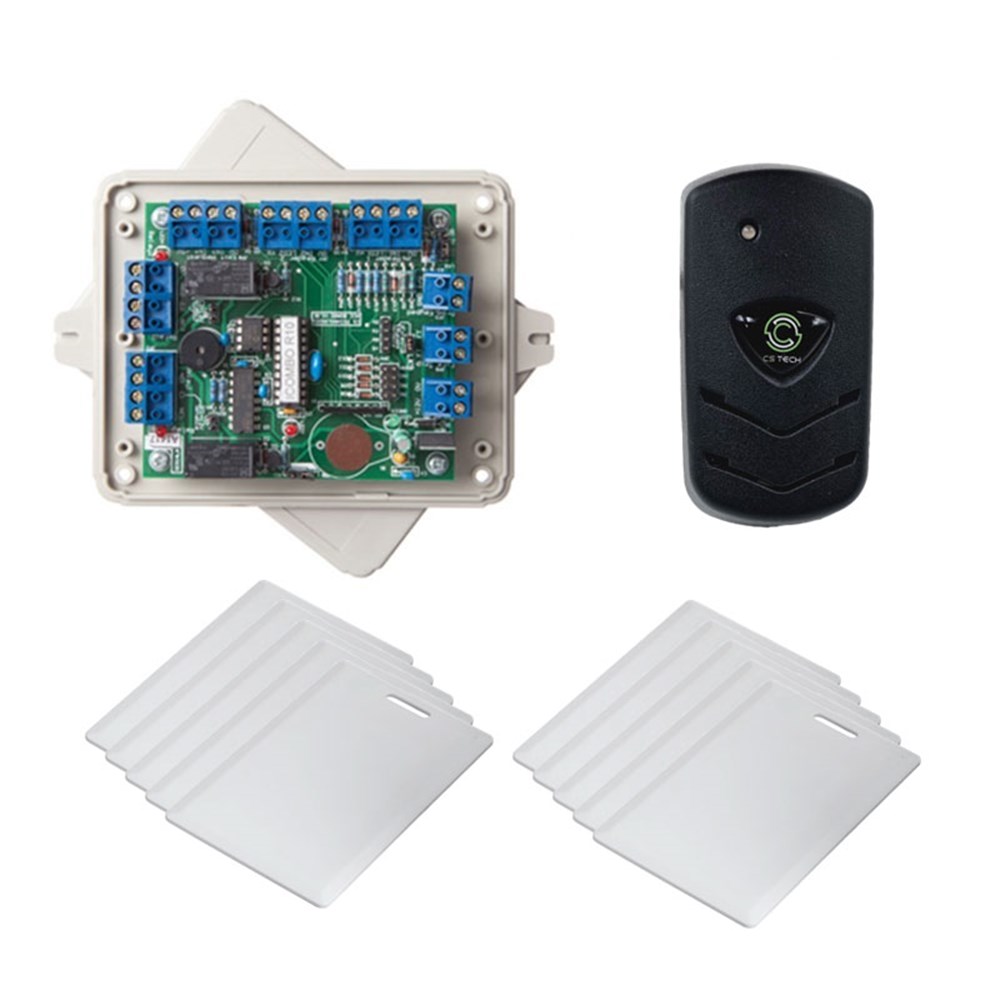

The CS Technologies ACE Wiegand access controller is a single door access controller which provides high security and easy programming. The kit comes complete with Controller, Reader, and 10 Cards.

This product is made to order and must be ordered in advance.

• Kit includes CS ACE Single Door Controller (CS4890), CS Technologies Reader (CS8101) and 10 Neptune 125kHz Clamshell Cards (NEHIDCLCD).
• 4000 user card capacity.
• Cards must all have the same site code (0-255) and be numbered consecutively (e.g. 1-4000).
• Standalone (Does not connect to a PC for programming).
• Programmed via programming keypad (NPEPSK2 additional).
• Easy bulk programming commands.
• Exit request button input.
• Valid card triggers two relays.
• Each relay has a programmable release time.
• No controller history, time, or time zone features.
