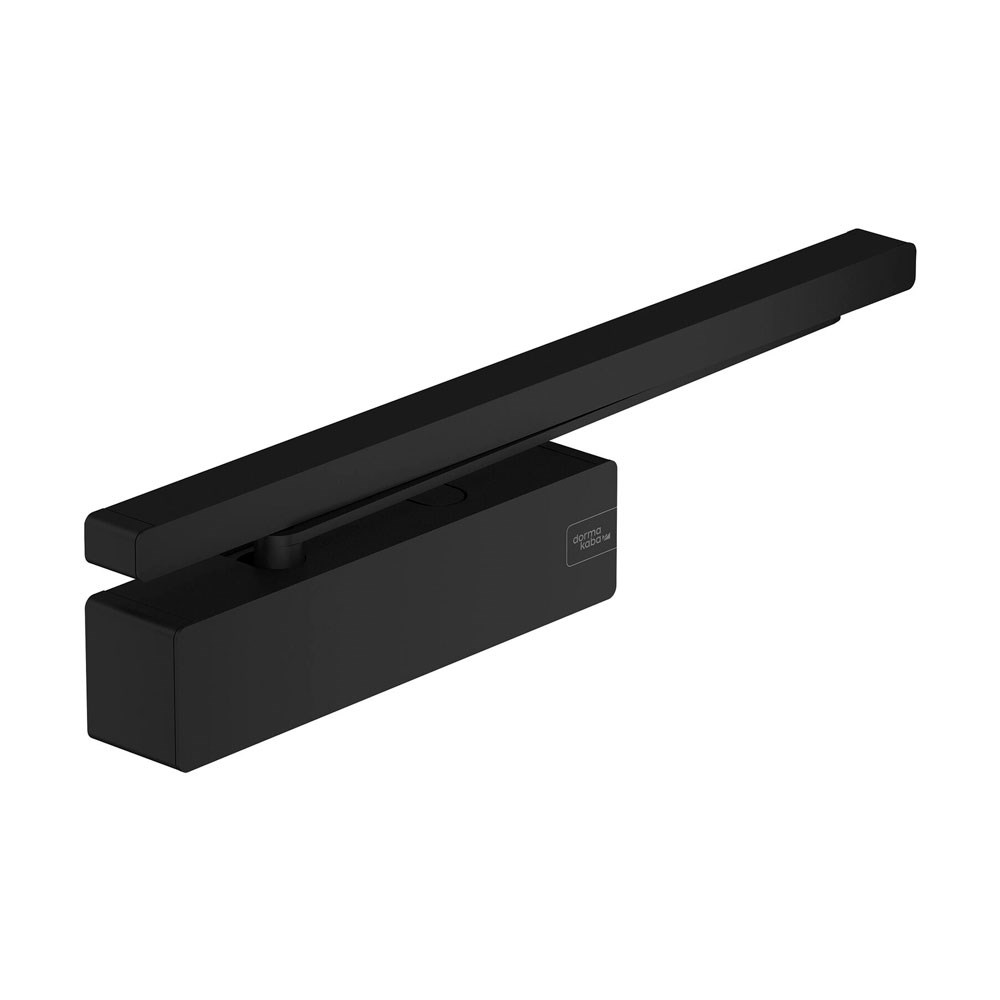

DORMA TS92 Cam Action Closer

DORMAKABA DOOR CLOSER TS92G EN1-4 CAM ACTION (CONTUR) PUSH SIDE W/ ARM BLACK P190

Product Code: DOTS92GBLK

Are you a tradesperson?

Get access to our best prices



This product is a special order (BTO) and is not returnable.
Description

The dormakaba TS92G EN1-4 closer is non-handed closer suitable for interior doors and comes with a linear drive mechanism with heart-shaped cam (Contur design). With adjustable closing speed of 180° - 15° and a latching action independently adjustable with a closing action of 15° - 0° with two separate vales.

Special model for push side door leaf fixing/pull transom fixing.

Suitable for fire and smoke check doors where the cushioned limit stay is also used.

Suitable for installation on doors up to 1100mm (W).

Finished in black.

Dimensions Weight
281 (L) x 47 (W) x 65 mm (H) 2.0kg
Data & Features   TS 92 B/G
Closing force Adjustable Size EN 1-4
Standard doors ² ≤1100 mm
External doors, outward opening ²
For fire and smoke check doors
Non-handed design
Arm assembly type Slide channel
Closing speed and latching action independently adjustable at two separate valves 180°-15°
15°-0°
Cushioned limit stay, mechanical
Backcheck
Delayed action
Hold-open
Weight in kg   2.0
Dimensions in mm Length
Overall depth
Height
281
47
65
Door closer tested to EN 1154

= Yes ▬ = No = Optional

² For particularly heavy doors and doors which have to close against wind resistance, we recommend the DORMA TS 93.

Technical Specifications
Brand DORMAKABA
