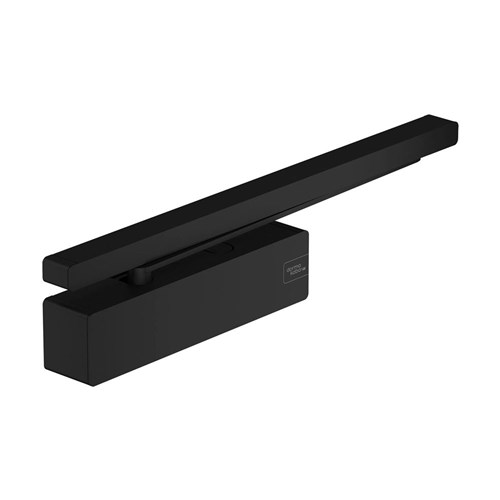

The dormakaba TS92G EN1-4 closer is non-handed closer suitable for interior doors and comes with a linear drive mechanism with heart-shaped cam (Contur design). With adjustable closing speed of 180° - 15° and a latching action independently adjustable with a closing action of 15° - 0° with two separate vales.
Special model for push side door leaf fixing/pull transom fixing.
Suitable for fire and smoke check doors where the cushioned limit stay is also used.
Suitable for installation on doors up to 1100mm (W).
Finished in black.
| Dimensions |
Weight |
| 281 (L) x 47 (W) x 65 mm (H) |
2.0kg |
| Data & Features |
|
TS 92 B/G |
| Closing force Adjustable |
Size |
EN 1-4 ✅ |
| Standard doors ² |
≤1100 mm |
✅ |
| External doors, outward opening ² |
|
▬ |
| For fire and smoke check doors |
|
✅ |
| Non-handed design |
|
✅ |
| Arm assembly type |
Slide channel |
✅ |
| Closing speed and latching action independently adjustable at two separate valves |
180°-15°
15°-0° |
✅ |
| Cushioned limit stay, mechanical |
|
⚪ |
| Backcheck |
|
▬ |
| Delayed action |
|
▬ |
| Hold-open |
|
⚪ |
| Weight in kg |
|
2.0 |
| Dimensions in mm |
Length
Overall depth
Height |
281
47
65 |
| Door closer tested to EN 1154 |
|
✅ |
✅ = Yes ▬ = No ⚪ = Optional
² For particularly heavy doors and doors which have to close against wind resistance, we recommend the DORMA TS 93.
