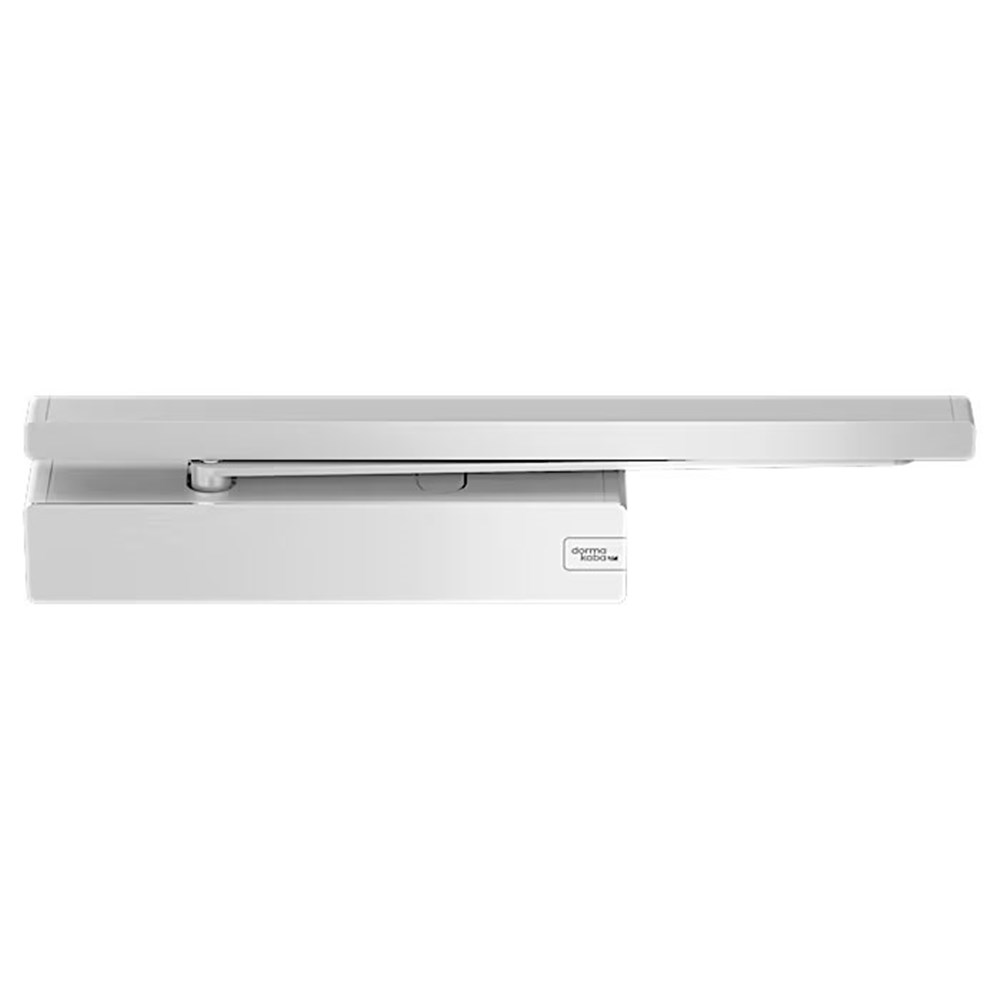

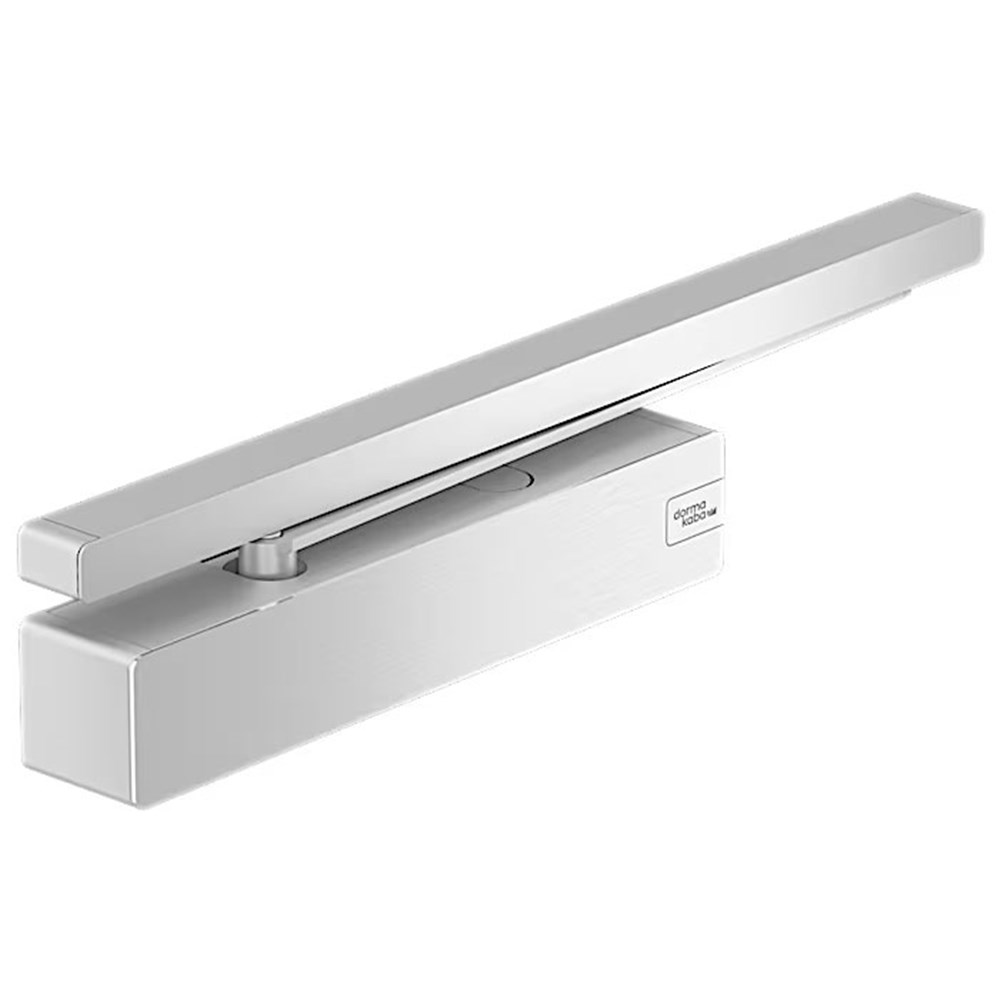

dormakaba TS97 and TS98 Cam Action Closer

dormakaba TS98 Door Closer Non Handled Cam Action Adjustable EN 1-6 in Silver - TS98 XEA1-6 BMP G-N P600 9400000016856

Product Code: DKTS98XEA

Are you a tradesperson?

Get access to our best prices



This product is a special order (BTO) and is not returnable.
Description

The dormakaba TS98 XEA sets the benchmark for versatility and innovation. Its cutting-edge Cam Action Technology ensures smooth, quiet operation and effortless passage, even in high traffic areas.

Compatible with pull-side, push-side, transom, and door leaf mounting, reducing the need for multiple variants.

SoftFlow technology allows for silent closing between 15° and 0°, enhancing comfort.

All settings, including closing force and speed, are easily adjustable from the front using a screwdriver.

firerated-icon Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.

Data & Features   TS 98 XEA1-6
Closing force Adjustable Size EN 1-6
Standard doors ² ≤1400 mm
External doors, outward opening ² ≤1400 mm
For fire and smoke check doors ≤1400 mm
Non-Handed design
Arm assembly type Slide channel
Closing force variable by means of adjustment screw
Closing speed adjustable by valve
Latching speed adjustable by valve
Backcheck (BC/ÖD) at valve
Delayed action (DC/SV) adjustable at valve
Hold-open
Weight in kg   4.5
Dimensions in mm Length
Overall depth
Height
327
59
60
Door closer tested to EN 1154

= Yes = No = Optional

² For applications involving particularly heavy or wide doors, and doors which have to close against wind resistance, the next highest door closer size should be selected, or the closing force adjusted to a higher setting.

Technical Specifications
Brand DORMAKABA
