FSH FEM4300DM 280kg Double Maglock, Fully Monitored, 2 Hour Fire Rated - FEM4300DM

Product Code: FEM4300DM

Are you a tradesperson?

Get access to our best prices



Description

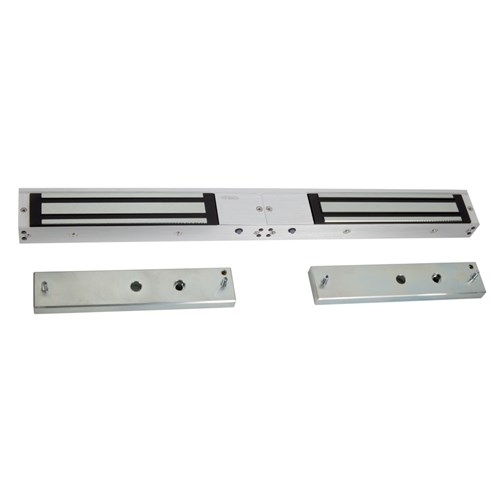

FSH FEM4300 series maglocks to suit double doors monitored.

5 year mechanical warranty and a holding strength of up to 280kg per magnetic lock.

firerated-icon Successfully tested up to 2 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.

  • Dual Voltage: 12 /24 VDC field selectable
    12VDC@ 500mA 24VDC@ 250mA.
  • Door and Lock Status Monitoring Sensor (DSS and LSS S with “M” Models).
  • Built-in varistor (MOV) surge protection.
  • Red-Green bicolour LED on monitored version.
  • No residual magnetism.
  • Holding force up to 280kgs per magnetic lock.
  • Satin anodised aluminium housing.
  • Zinc plated electromagnetic body.
  • Magnet size 477 (L) x 48 (H) x 25 mm (D).
  • Armature plate 185 (L) x 38 (H) x 12 mm (D) x 2.
  • 5 year warranty.
  • Fire Rated (up to 2-hour fire rated in accordance with AS 1905.1:2015).
Technical Specifications
Brand FSH
Current 1 A @ 12 Vdc, 500 mA @ 24 Vdc
Finish Satin Anodised
Holding Strength in kg 280
Working Voltage 12/24 Vdc
Fire Rated Yes, 2 Hours
Single Or Double Door Maglock? Double
Monitoring Monitored
