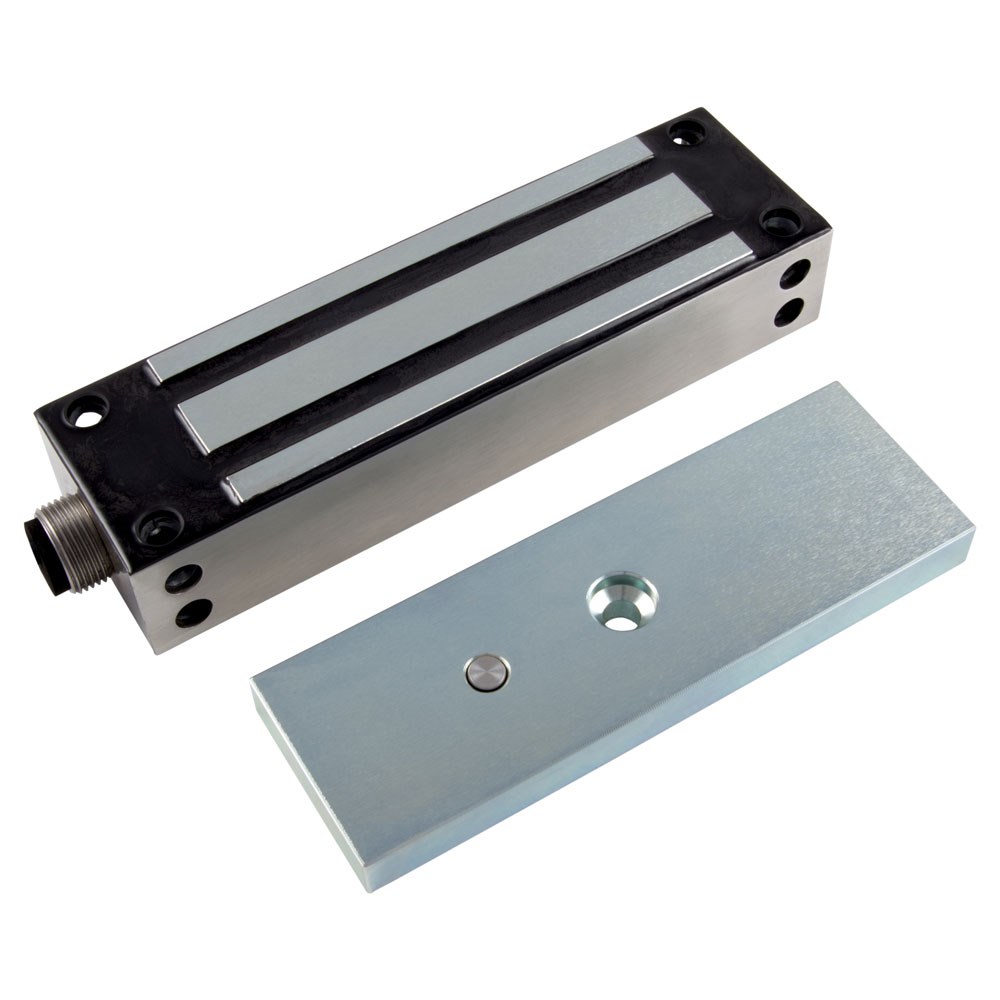

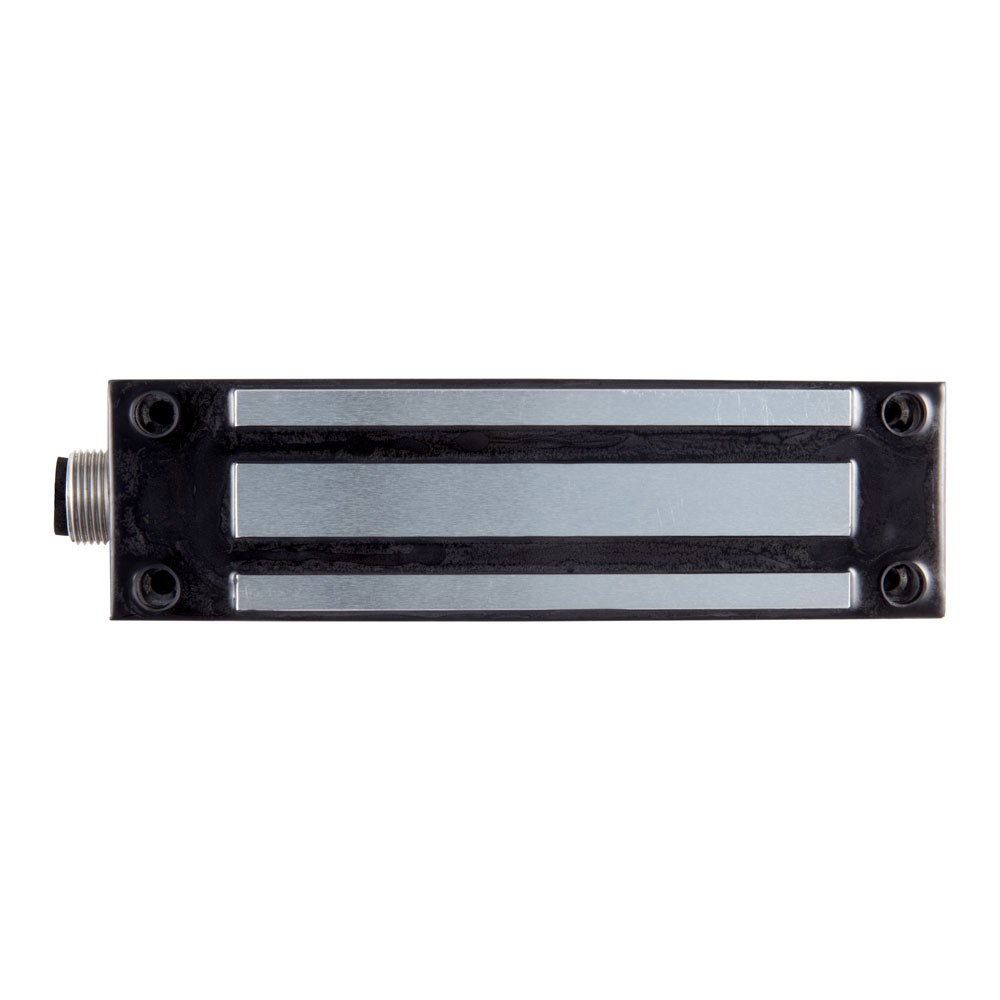

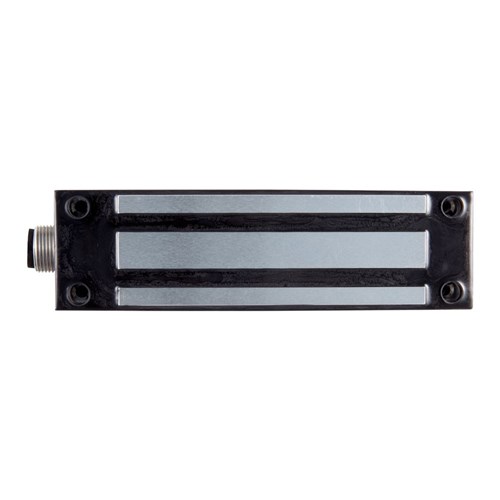

FSH FEM5400WM weather resistant series maglocks to suit single doors monitored.

5 year mechanical warranty and a holding strength of up to 570kg per magnetic lock.

• Dual Voltage: 12 /24 VDC field selectable
  12VDC@ 500mA 24VDC@ 250mA.
• IP68 rated.
• Holding strength tested up to 570kg.
• Stainless steel housing.
• No residual magnetism.
• Lock Status Sensor reed switch.
• Magnet 220 (L) x 63.5 (W) x 41 (D) mm.
• Armature 185 (L) x 60.8 (W) x 16 (D) mm.
• 1m connection cable.
