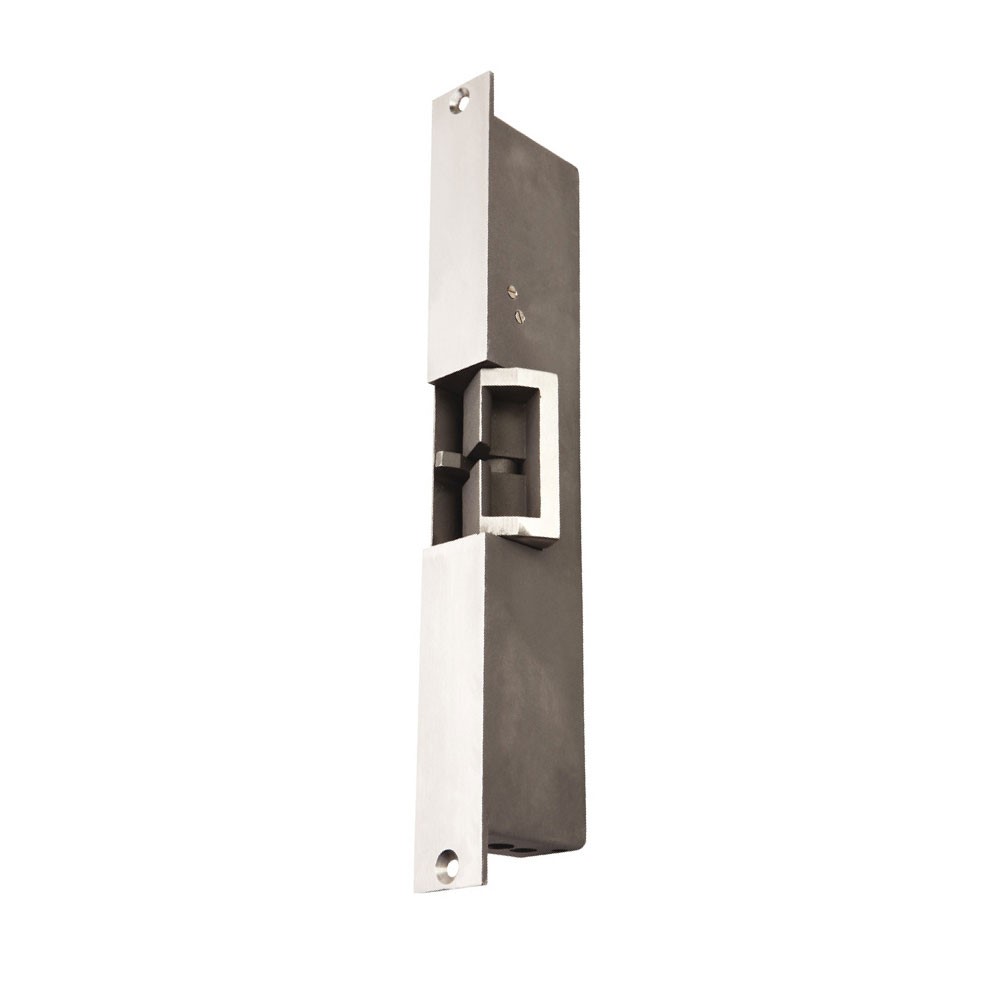

The FES110 series deadlock electric door strike release mechanism has been designed to provide door access control while maximising security to a door assembly fitted with square bolt deadlocks.

The FES110 monitors both door lock tongue and internal locking of the strike.

• Function: Power to open (PTO).
• Monitorinng: Lock bolt & locking solenold.
• Voltage/current: 12-30 VDC (Multi-voltage) (has to be specified)
  12V 600mA dropping to 220mA,
  24V 350mA dropping to 12mA.
• Holding strength: Up to 500kg.
• Approvals: 2 hour fire rated.
• Dimensions: 306 (L) x 32 (W) x 58 mm (H).
