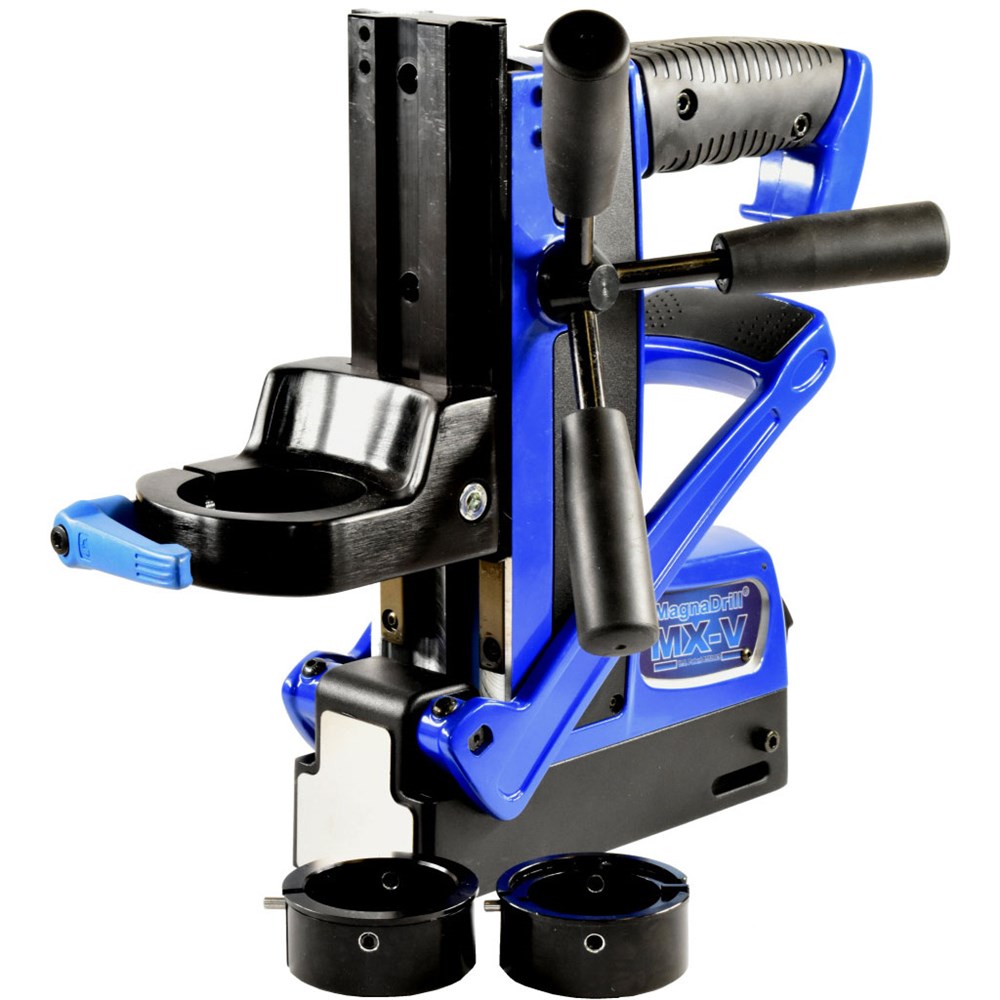

This MagnaDrill MX-V magnetic drill stand with a tool holder of 43 mm (Euro collar) and a switchable MagLogix MXL permanent magnet is intended for use with wired, mains-operated drilling machines.
Combined with a drilling machine, this magnetic drill stand is destined to be used with core or solid drills on ferromagnetic workpieces. It may only be used in a dry environment which is protected from the weather. The machine may be used horizontally and vertically or overhead.
Specifications:
- Collar: 43 mm Euro Standard.
- Max Drilling in Steel
Core Drill: 12.7 mm x 25 mm
Twist Drill: 12.7 mm.
- Stroke: 101 mm + 76 mm height adjustment at slide.
- Size of magnetic base: 50 x 177.8 mm.
- Magnetic Holding Force: 764kg.
