Product Code: 4782SS

This product is a special order (BTO) and is not returnable.

Description

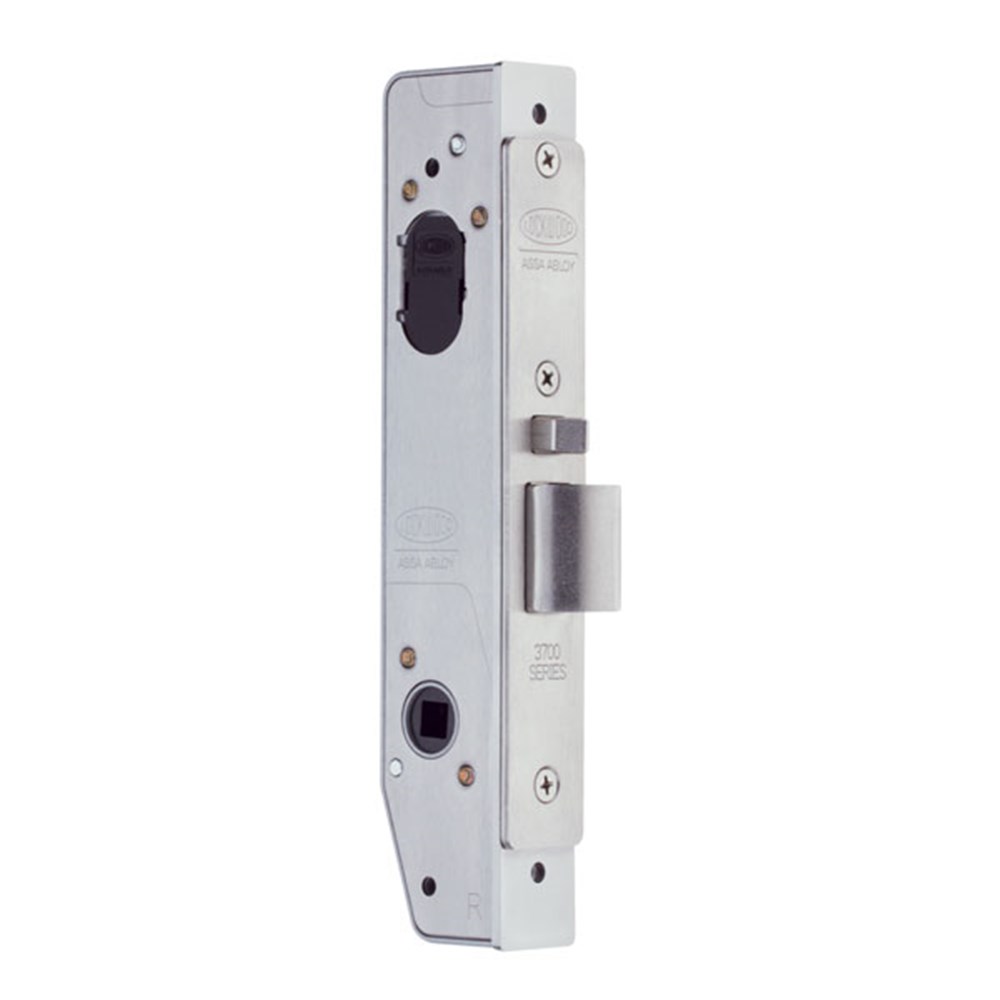

Lockwood Selector® 4782 universal 25.4 mm backset mortice lock.

The new Selector® 3780 series mortice lock was designed to incorporate a greater range of lock functions into one primary lock.
In addition to industry first holdback capable lock, the Selector® 3780 series also includes an selectable anti-lockout feature.

All handing setting (Passage, Combination or Escape) can be adjusted via the hub selector located under the face plate.

For handing see FAQs

Short backset universal primary mortice lock.
Easy Red /Green function setting.
All lock settings are made from under the faceplate allowing for simple in-door configuration.
Standard primary locks include holdback and anti-lockout capabilities.
Lock is always holdback capable, no setting is required. Holdback can be activated at any time - unless anti-lockout is selected.
Operated by key or handle outside or by turnsnib, key or handle inside.
Zinc diecast body with stainless steel chassis plates for improved strength.
Electric Strike compatibility.
25.4 mm backset as standard, 23, 30 and 38 mm available upon request.
Suits metal door thickness 35-50 mm.
15 mm stainless steel reversible latch bolt.
Supplied less cylinder.
Supplied with Selector® 'V' cam.
Compatible to most restricted keying systems.
Finished in stainless steel.

Technical Specifications

Brand	LOCKWOOD
Anti-lockout Function	Yes
Compatible With Most Restricted Keying Systems	Yes
Finish	Satin Stainless Steel
Holdback Function Built-in	Yes
Lock Grade	Commercial
Lock Pitch In mm	89.9
SCEC Endorsed	No
Suits Door Thickness	32 mm to 50 mm
Backset	25.4 mm
Fire Rated	No
Face Plate Length in mm	156
Face Plate Thickness in mm	2.5
Face Plate Width in mm	25
Handing	Reversible
Mortice Lock Case Depth in mm	42.4
Mortice Lock Case Height in mm	194.5
Mortice Lock Case Thickness in mm	20
Spindle Type	7.6 mm Square Split Spindle
Uses Cylinder/Plug Type	570 Oval
