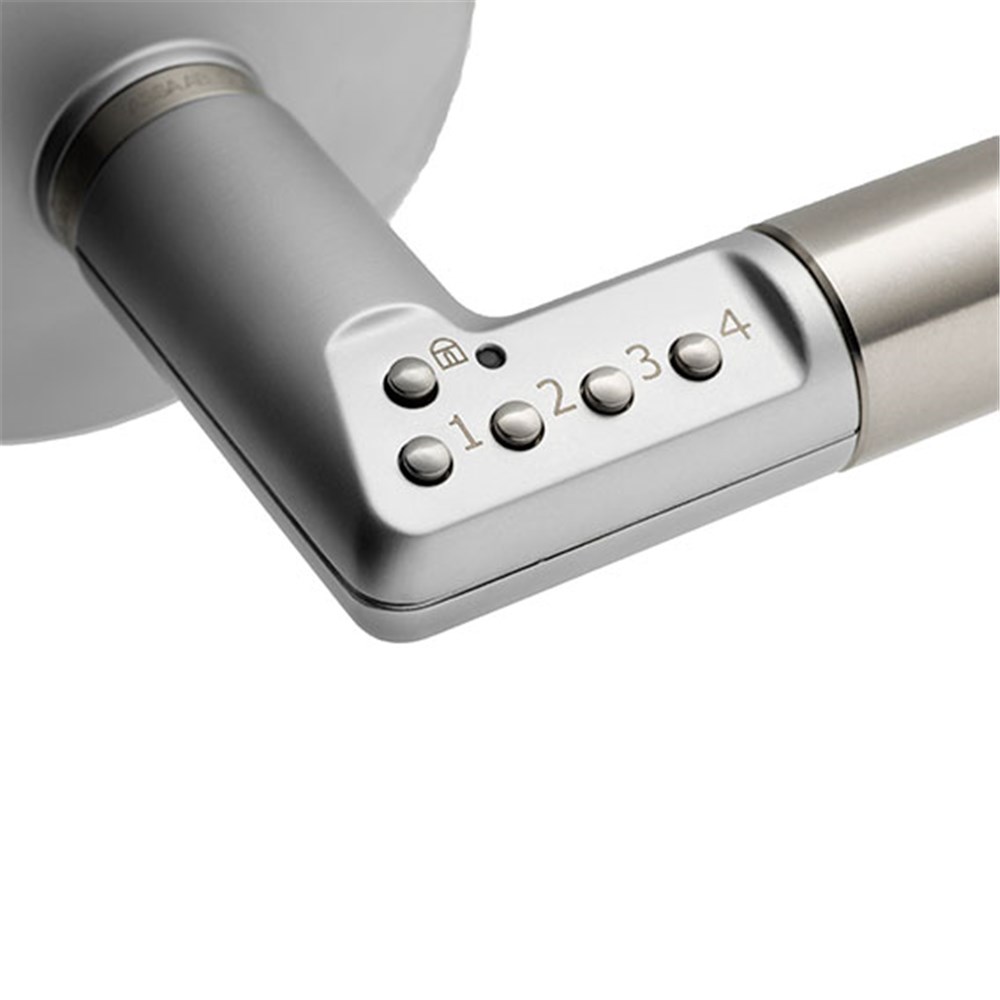

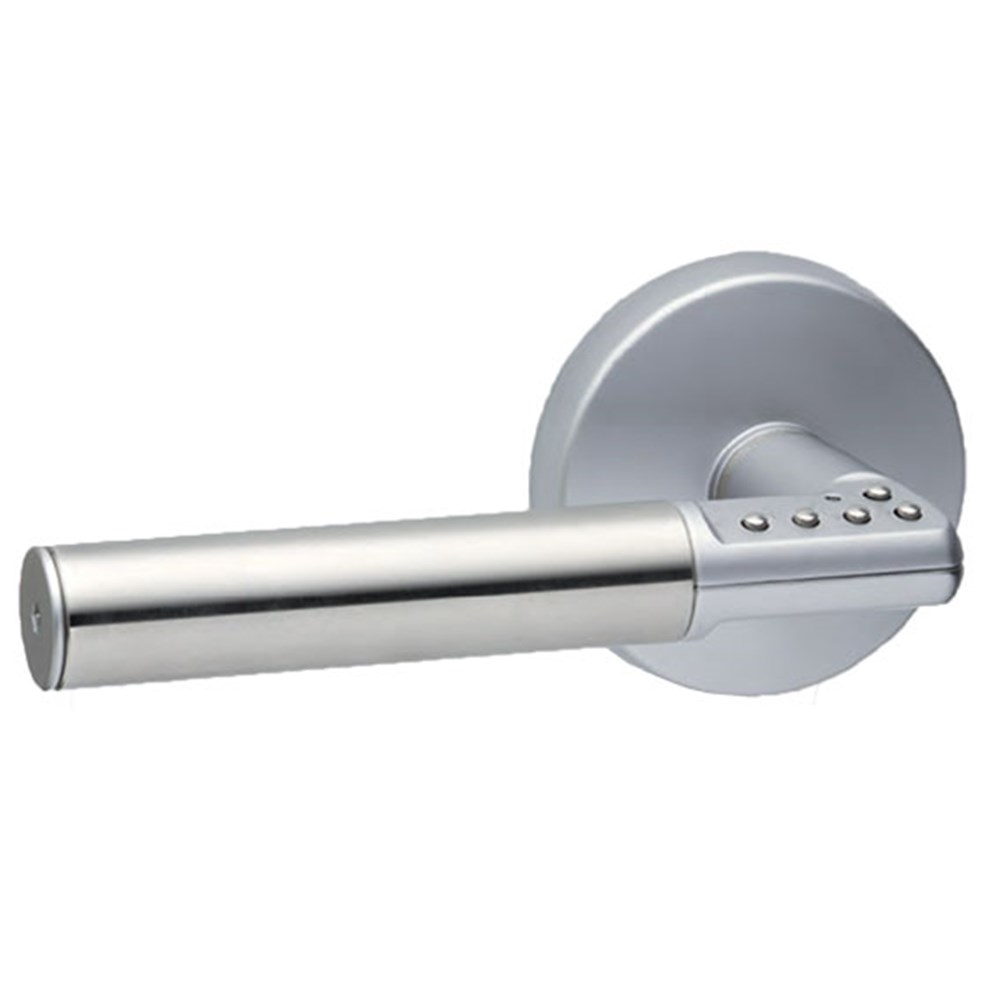

LOCKWOOD CODE HANDLE KEYLESS LOCKSET 8816 RH SSS

Product Code: 8816RSS

Are you a tradesperson?

Get access to our best prices



Description

Lockwood's innovative door handle with integrated electronic security, offers simple and effective key-less locking, without compromising aesthetics. Designed to enable conveniently controlled access to a door with easy installation. The Code Handle provides flexible locking options for doors that need to be always locked or alternatively can be left open to provide free access during the day and locked at night.

The Code Handle is ideal for offices, store rooms or a study at home.

The Code Handle is recommended for indoor use only.

Handing Right hand (RH)
Installation 25 mm latch hole, 54 mm lock hole
Backset 60 mm
Latch projection 13 mm
Door thickness 32-55 mm
  • Lever handle with integrated code lock.
  • Program up to 9 User codes, 4-6 digits in length.
  • Keypad access control lever.
  • Supplied with modified Lockwood 530 60 mm latch.
  • Easy to install.
  • Ideal for retrofit installations.
  • Programmable administration code for setting lock operation and user programming.
  • Manual or automatic locking.
  • Passage mode.
  • Code lockout after 5 incorrect attempts.
  • Durable stainless steel handles.
  • Left and right handed versions.
  • Approximately 30,000 operations before batteries replacement.
  • Batteries included (two CR2 batteries).
Technical Specifications
Brand LOCKWOOD
Battery Operated Digital Lock Yes
Finish Satin Stainless Steel
Has Levers On Both Sides Yes
Has Passage Function (DIGITAL11) Yes
Suits Door Thickness 32 mm to 55 mm
Backset 60 mm
Amount of User Codes 9
Battery Type and Quantity 2x CR2
Handing Right Hand
Number of Incorrect Pins Before Pad Lockout 5
