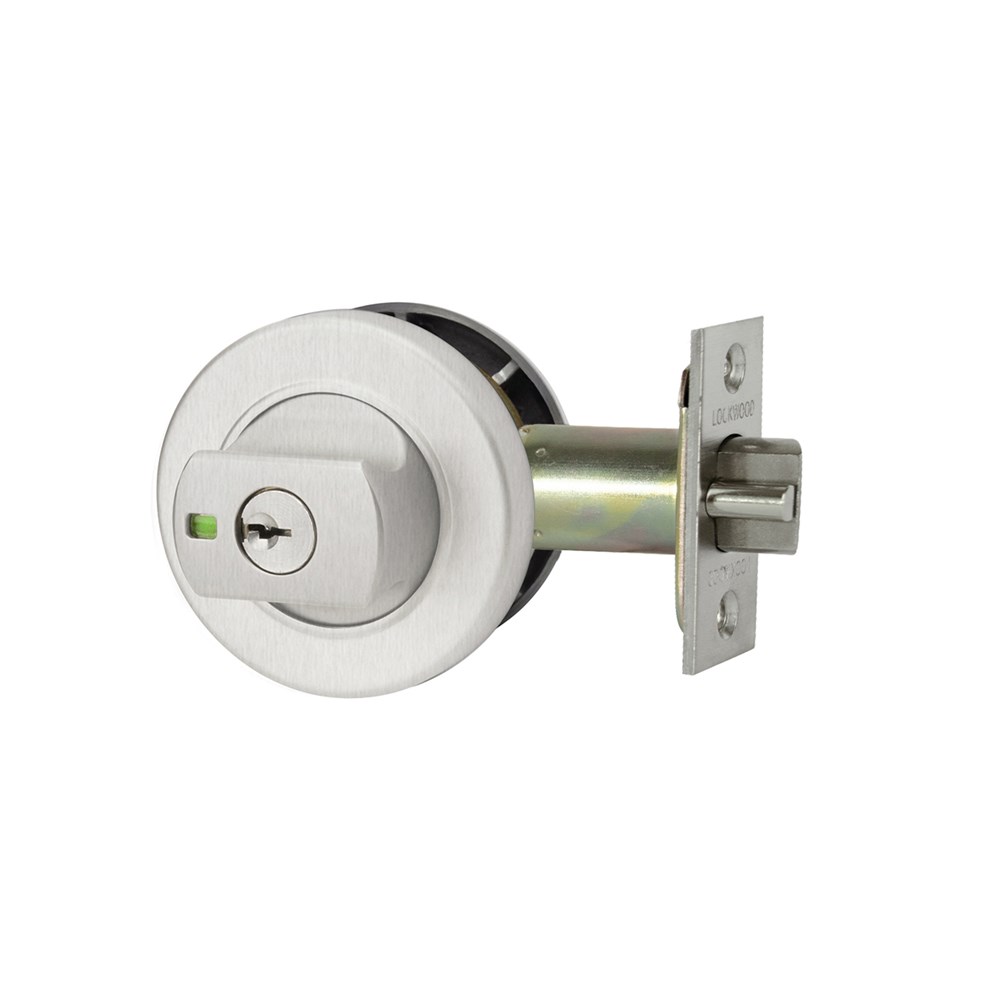

Lockwood 005 Paradigm Deadbolt

Lockwood Deadbolt Latching Paradigm 005 Round Rose Satin Chrome - 005L/B1SCDP

Product Code: 005LB1SCDP

Are you a tradesperson?

Get access to our best prices



This product is a special order (BTO) and is not returnable.
Description

Lockwood Paradigm® 005 latching with LockAlert® status indicator and Safety Release™ locking suitable for both residential and architectural applications.

Outside

  • Unlocked by key – Safety and Secure Modes.

Inside

  • Locked or unlocked by key (Secure Mode®)
  • Unlocked by turn knob (Safety Mode®)
  • Holdback function keeps the latch in the retracted position when required.

Backset

  • 60 mm latch bolt

Door thickness

  • 32 to 48 mm.
    notes-icon 32 to 36 mm doors require spacer ring (included)

Cylinder

  • Lockwood 001 6 pin barrel
  • Multi-mode slimline double cylinder deadbolt.
  • Safety release to prevent being locked in.
  • High strength counter balance bolt.
  • High security cut resistant stainless steel bolt.
  • Box strike with concealed cross grain door frame strengthening screw.
  • Rose diameter 63 mm.
  • Outside projection 12 mm.
  • Inside projection 32 mm.
  • Compatible to most restricted keying systems.
  • Finished in satin chrome brushed.
  • Supplied display pack.
Technical Specifications
Brand LOCKWOOD
Compatible With Most Restricted Keying Systems Yes
Display Pack Yes
Finish Satin Chrome
LockAlertĀ® Status Indicator Yes
Rose Diameter (in mm) 63
Safety Releaseā„¢ Yes
Suits Door Thickness 32 mm to 48 mm
Backset 60 mm
Single Or Double Sided? Double
