LOCKWOOD EXT ESCAPE LEVER 929 SC

Product Code: 929SC

Are you a tradesperson?

Get access to our best prices



Description

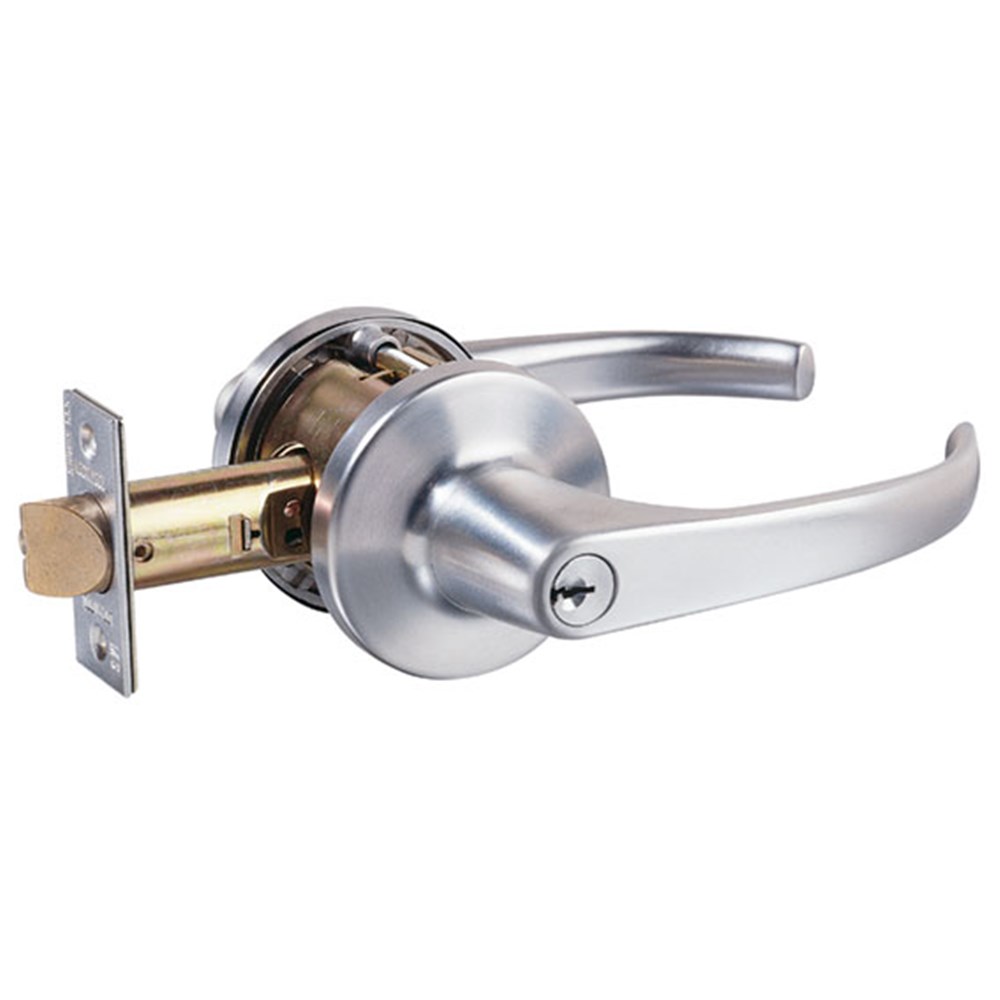

Lockwood 929 series entrance escape leverset. Commercial grade.

firerated-icon Fire rated to 2 hours.

Entrance escape function

  • Outside key locks and unlocks outside lever.
  • Inside turnsnib locks and unlocks outside lever.
  • Inside opened by lever at all times.


Additional info

  • Commercial grade exterior escape leverset.
  • Outside key locks and unlocks outside handle.
  • Inside opened by lever at all times.
  • Inside snib locks and unlocks outside handle.
  • Compatible with most restricted keying systems.
  • Baffle (shroud) prevents over-tightening when installing.
  • Levers and roses made of high purity zinc alloy.
  • 70 mm backset standard.
  • 60 mm and 127 mm latches available separately.
  • Suitable for door thickness 32 - 45 mm.
  • Brass latch bolt with 13 mm projection.
  • Fire rated to 2 hours.
  • Finished in satin chrome.
Door thickness 32-45 mm
Backset 70 mm
max. Lever / knob projection
distance does not include turnsnib
51 mm
Strike 70 mm x 28.5 mm x 1.2 mm
Latch 70 mm backset
Latch face plate 57 mm x 25 mm
Cylinder LW4 profile
Door handing field adjustable
Rose 65 mm
Technical Specifications
Brand LOCKWOOD
AS1428.1 Compliant Lever (AS1428.1CO) No
Clutching Levers No
Finish Satin Chrome
Function Exterior Escape
Lock Grade Commercial
Lock Type Tiebolt
Rose Diameter (in mm) 65
Suits Door Thickness 32 mm to 45 mm
Backset 70 mm
Fire Rated Yes
