950 Dimensions less turnsnib

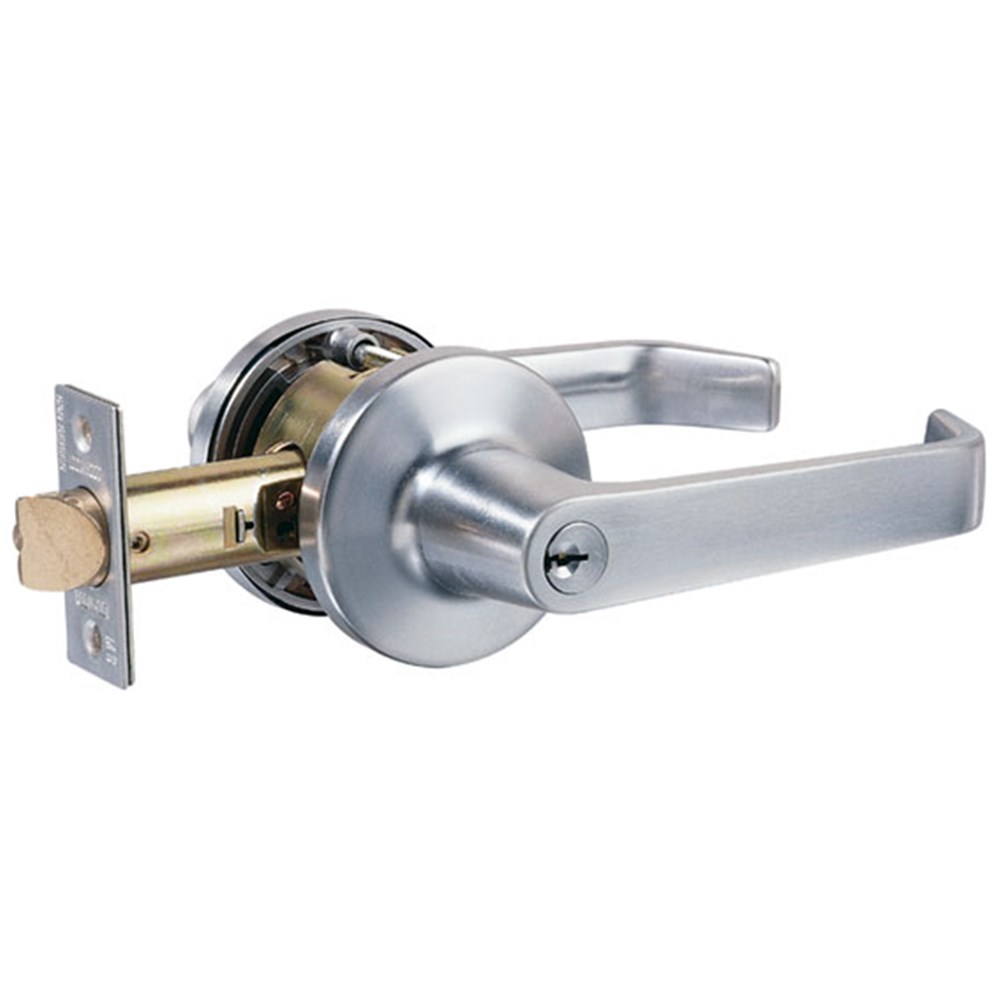

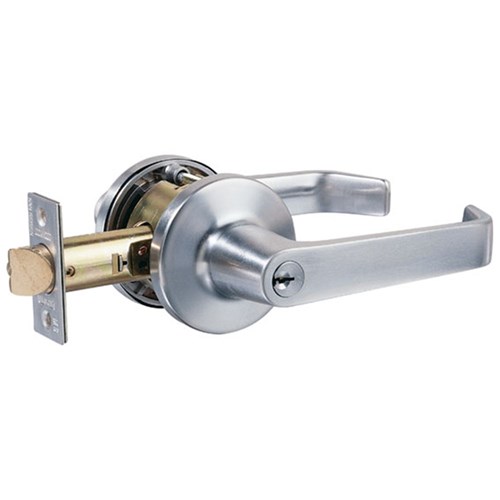

LOCKWOOD STOREROOM ESCAPE LEVER 958 SC

Product Code: 958SC

Are you a tradesperson?

Get access to our best prices



Description

Lockwood 958 series storeroom leverset. Commercial grade.

firerated-icon Fire rated to 2 hours.

Storeroom function

  • Outside lever rigid, key retracts the latch only.
  • Inside lever always free .


Additional info

  • Commercial grade storeroom leverset.
  • Outside lever rigid, key retracts the latch only.
  • inside lever always free.
  • Compatible with most restricted keying systems.
  • levers and roses made of high purity zinc alloy.
  • Baffle (shroud) prevents over-tightening when installing.
  • 70 mm backset standard.
  • 60 mm and 127 mm latches available separately.
  • Suitable for door thickness 32 - 45 mm.
  • Brass latch bolt with 13 mm projection.
  • Fire rated to 2 hours.
  • Finished in satin chrome.
Door thickness 32-45 mm
Backset 70 mm
max. Lever / knob projection
distance does not include turnsnib
52 mm
Strike 70 mm x 28.5 mm x 1.2 mm
Latch 70 mm backset
Latch face plate 57 mm x 25 mm
Cylinder LW4 profile
Door handing field adjustable
Rose 65 mm
Technical Specifications
Brand LOCKWOOD
AS1428.1 Compliant Lever (AS1428.1CO) No
Clutching Levers No
Finish Satin Chrome
Function Storeroom
Lock Grade Commercial
Lock Type Tiebolt
Rose Diameter (in mm) 65
Suits Door Thickness 32 mm to 45 mm
Backset 70 mm
Fire Rated Yes
