LOX Single Mini Surface Mount Electro Magnetic Lock 180kg - CCW30S

Product Code: LCCW30S

Are you a tradesperson?

Get access to our best prices



Description

The LOX CCW30S Electro magnetic non-monitored mini lock was designed for securing hinged doors on lockers, cabinets or other kinds of small doors.

The holding force is up to 180kg.

  • Micro/min magnetic lock.
  • Suit single door cupboard.
  • Dual voltage 12V DC/24V DC.
  • Current draw 12V DC @ 350mA & 24V DC @ 175mA.
  • Surface mounted magnet.
  • Non-monitored.
  • Satin anodised aluminium housing.
  • Zinc plated electromagnetic body.
  • Grain orientated silicone steel armature plate.

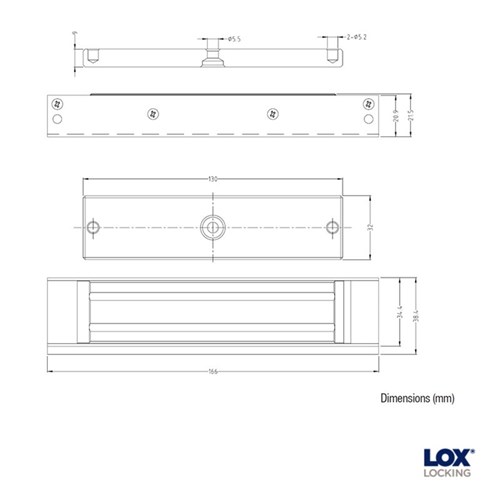

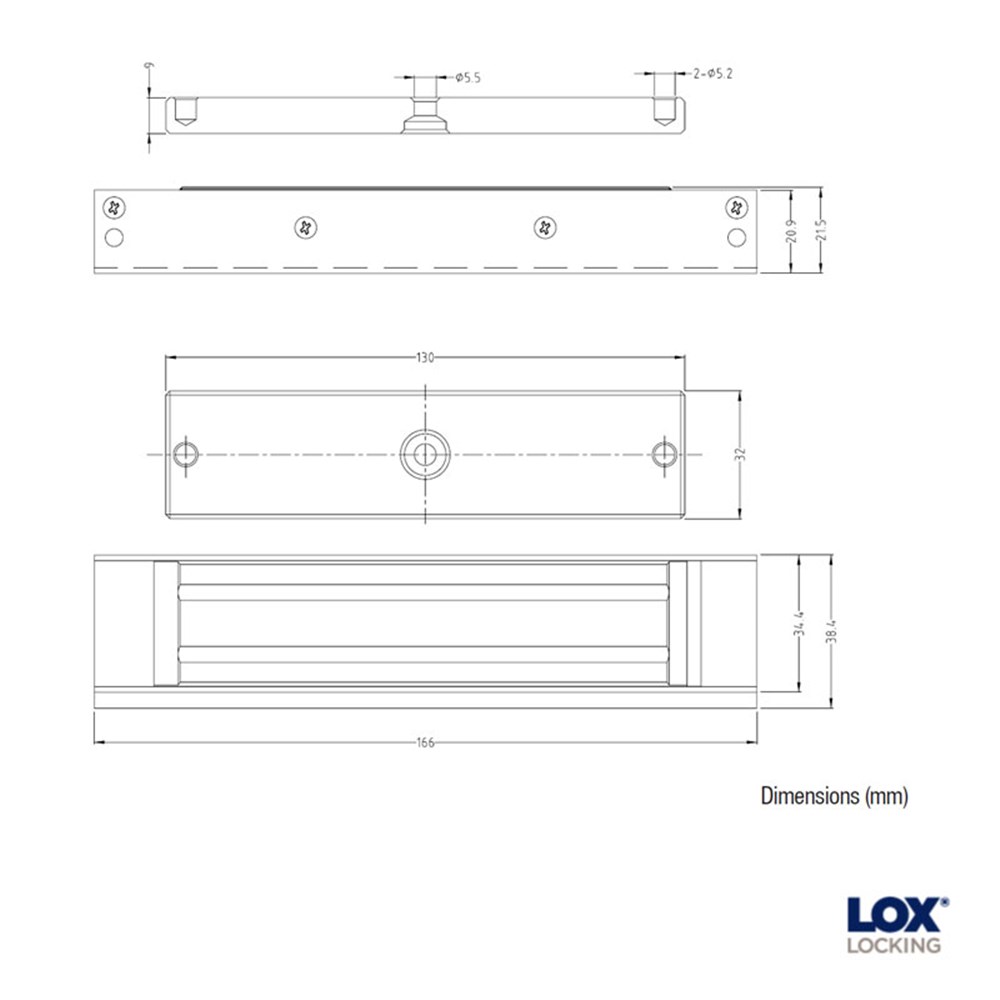

  • Magnet size 166 (L) x 38 (H) x 20 mm (D).
  • Armature plate 130 (L) x 32 (H) x 9 mm (D).
  • Holding force 180kg.
  • Built-in varistor (MOV) surge protection.
  • No moving parts.
Technical Specifications
Brand LOX LOCKING
Current 350 mA @ 12 Vdc, 175 mA @ 24 Vdc
Finish Satin Anodised
Holding Strength in kg 180
Working Voltage 12/24 Vdc
Fire Rated No
Single Or Double Door Maglock? Single
Monitoring Non-Monitored
