LOX Flush Mount Electro Magnetic Lock Slimline 280kg Monitored - EM3500FM

Product Code: LEM3500FM

Are you a tradesperson?

Get access to our best prices



Description

The LOX LEM3500FM Flush mount electro magnetic monitored lock was designed for securing sliding doors.

The holding force is up to 280kg.

  • Single flush mount magnetic lock.
  • Dual voltage 12V DC @ 500mA, 24V DC @ 250mA.
  • Monitored.
  • MOV surge protection.
  • Lock Status Monitoring Sensor.
  • Holding force up to 280kgs.
  • Satin anodised aluminium housing.
  • Zinc plated electromagnetic body.

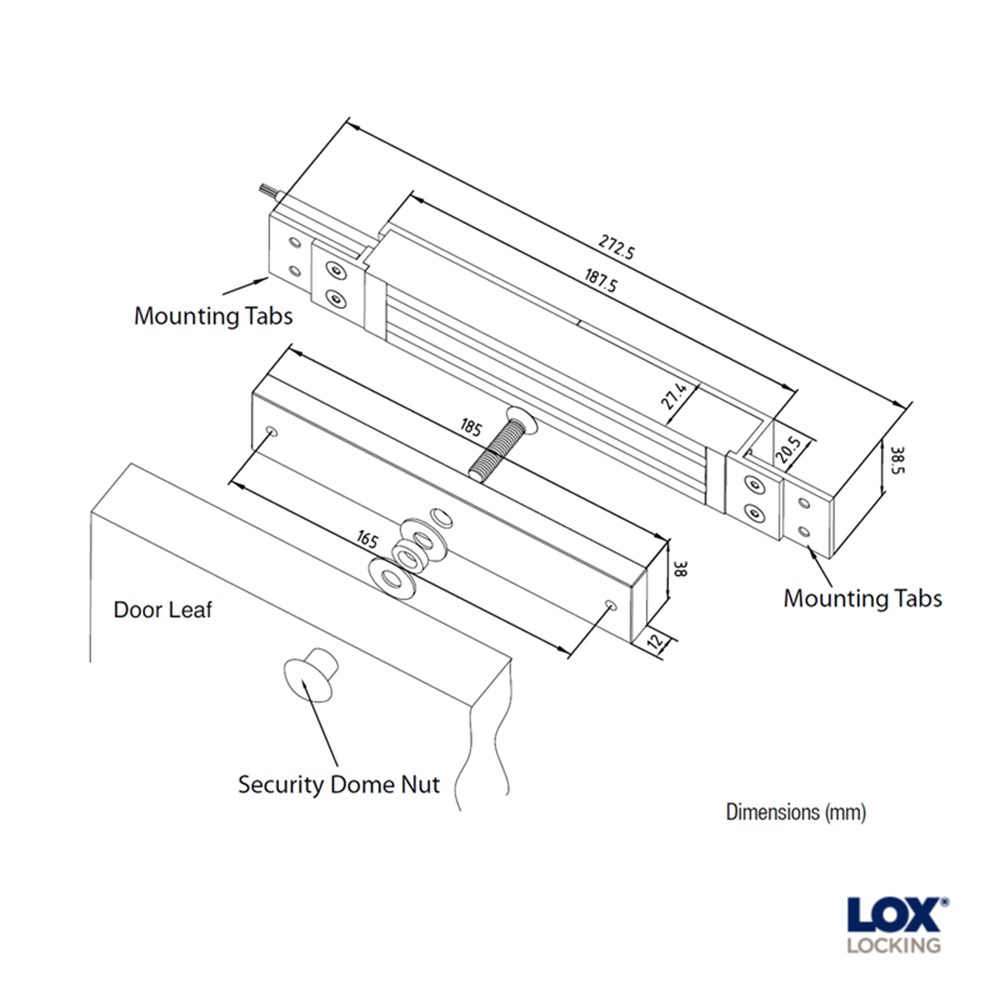

  • Magnet size 238 (L) x 48 (H) x 25 mm (D).
  • Armature plate 185 (L) x 38 (H) x 12 mm (D).
  • Guaranteed no residual magnetism.
Technical Specifications
Brand LOX LOCKING
Current 500 mA @ 12 Vdc, 250 mA @ 24 Vdc
Finish Satin Anodised
Holding Strength in kg 280
Working Voltage 12/24 Vdc
Fire Rated No
Single Or Double Door Maglock? Single
Monitoring Monitored
