LOX Electro Magnetic Lock Slimline BLACK 280kg Monitored Single incl. Anti-Tamper Plate - LSC | Complete Security Solutions - LSC Security Supplies

page

Product Code: LEM3500MBLK

Single monitored magnetic lock.
Dual voltage 12V DC @ 500mA, 24V DC @ 250mA.
Monitored, door status sensor, lock status sensor.
MOV surge protection.
Holding force up to 280kgs.
4 hour fire rating.
Matt black anodised aluminium housing.
Zinc plated electromagnetic body.

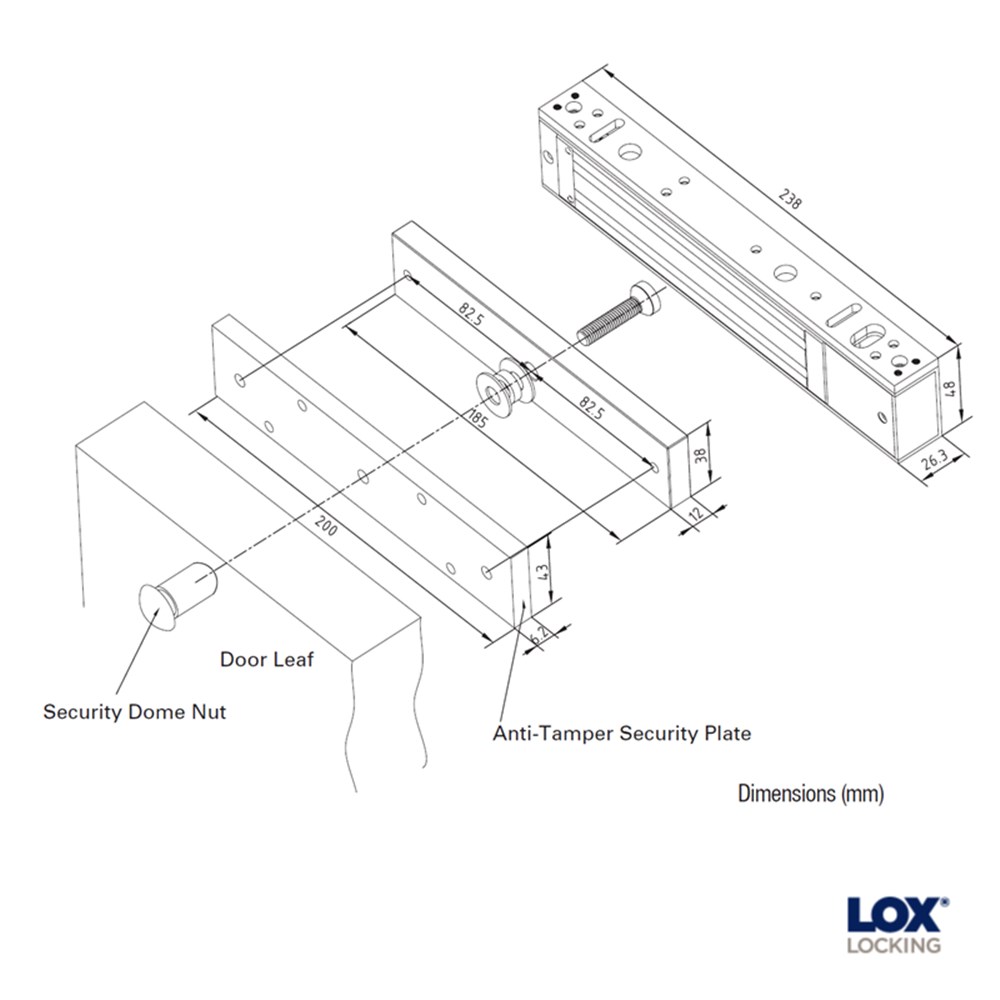

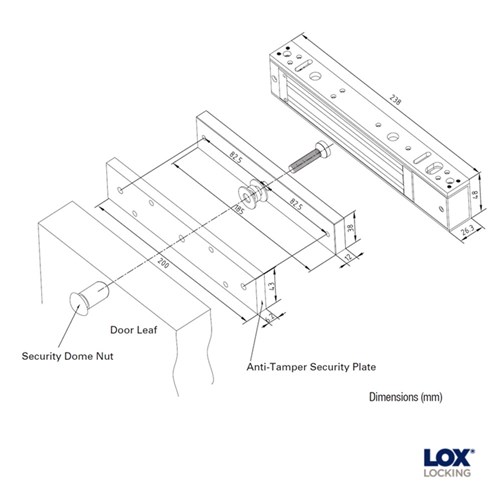

Magnet size 238 (L) x 48 (H) x 25 mm (D).
Armature plate 185 (L) x 38 (H) x 12 mm (D).
Long distance light panel.
Guaranteed no residual magnetism.
Monitored versions supplied with anti tamper plate.

Technical Specifications

Brand	LOX LOCKING
Current	500 mA @ 12 Vdc, 250 mA @ 24 Vdc
Finish	Matt Black
Holding Strength in kg	280
Working Voltage	12/24 Vdc
Fire Rated	Yes, 4 hours
Single Or Double Door Maglock?	Single
Monitoring	Monitored
