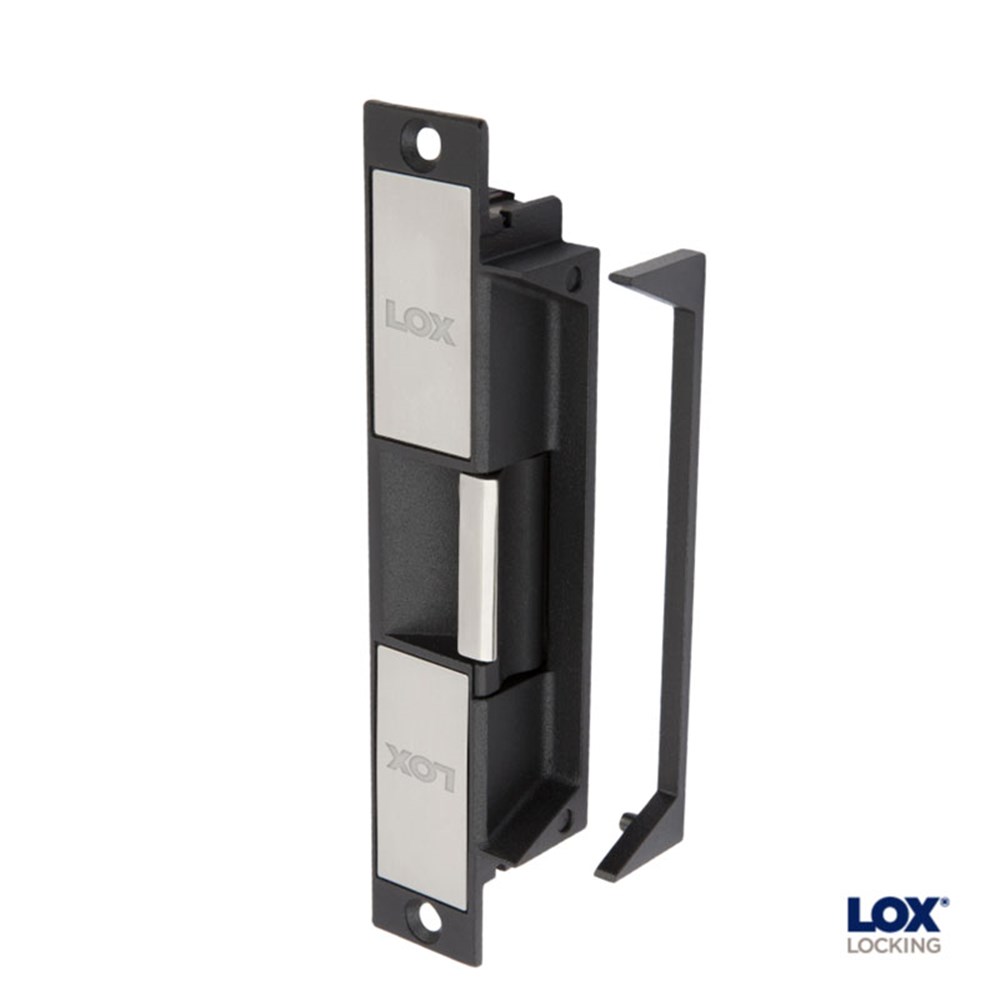

LOX ES20 High Security Electric Strike 10-30VDC Non-Monitored 4 Hour Fire Rated - ES20

Product Code: LES20

Are you a tradesperson?

Get access to our best prices



Description

The LES20 series electric strikes are designed for use with all access control systems.

The LES20 series now come with a 10 mm strike lip as standard, to prevent possible personal injury and damage to clothing as with the 15 mm lip. A 5 mm lip extension is included with the strike if needed.

Fail safe/fail secure is changeable on site.

Suitable for use on hinged doors to work with a extensive range of locks.

firerated-icon Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS/NZS 1905, Part 1-1997 and BS 476: Part 22-1987 ( Fire resistant door sets) .

  • Multi voltage 12~36V DC.
  • Current 12V DC @ 220mA, 24V DC @ 120mA, 36V DC @ 80mA.
  • Non-monitored.
  • Fire rated up to 4 hours.
  • Power to lock/power to open field selectable.
  • Stainless steel construction.
  • Solenoid can be continuously powered.
  • Optional extension lips.
  • Self adhesive installation template.
  • Includes tab mounting kit.
  • Pre-drilled for extension lips.
  • Holding strength of over 1490kg.
  • LES20 is suitable for 18 mm latch with a 3 mm door gap.
Technical Specifications
Brand LOX LOCKING
Current 250 mA @ 12 Vdc to 125 mA @ 24 Vdc
Drilled for Lip Extension Yes
Field Selectable Fail Safe/Fail Secure Yes
Holding Strength in kg 1000
Working Voltage 10 Vdc to 28 Vdc
Fire Rated Yes
Locking Mode Fail Secure/Fail Safe
