LOX Standard 12VDC Magnetic Door Holder Wall Mount with Extension - R20PCH-12

Product Code: LR40PCH12

Are you a tradesperson?

Get access to our best prices



Description

Fire and smoke door magnetic door holder, titanium alloy surface finish, elegant appearance.

Installed on fire and smoke doors in projects where doors are required to be held in the open position for both pedestrian and general traffic, the devices have to be linked into the buildings fire/smoke alarm system.

  • Suitable for wall mounting.
  • 4 hour fire rated.
  • Up to 25kg holding force.
  • Voltage 12V DC @ 160mA.

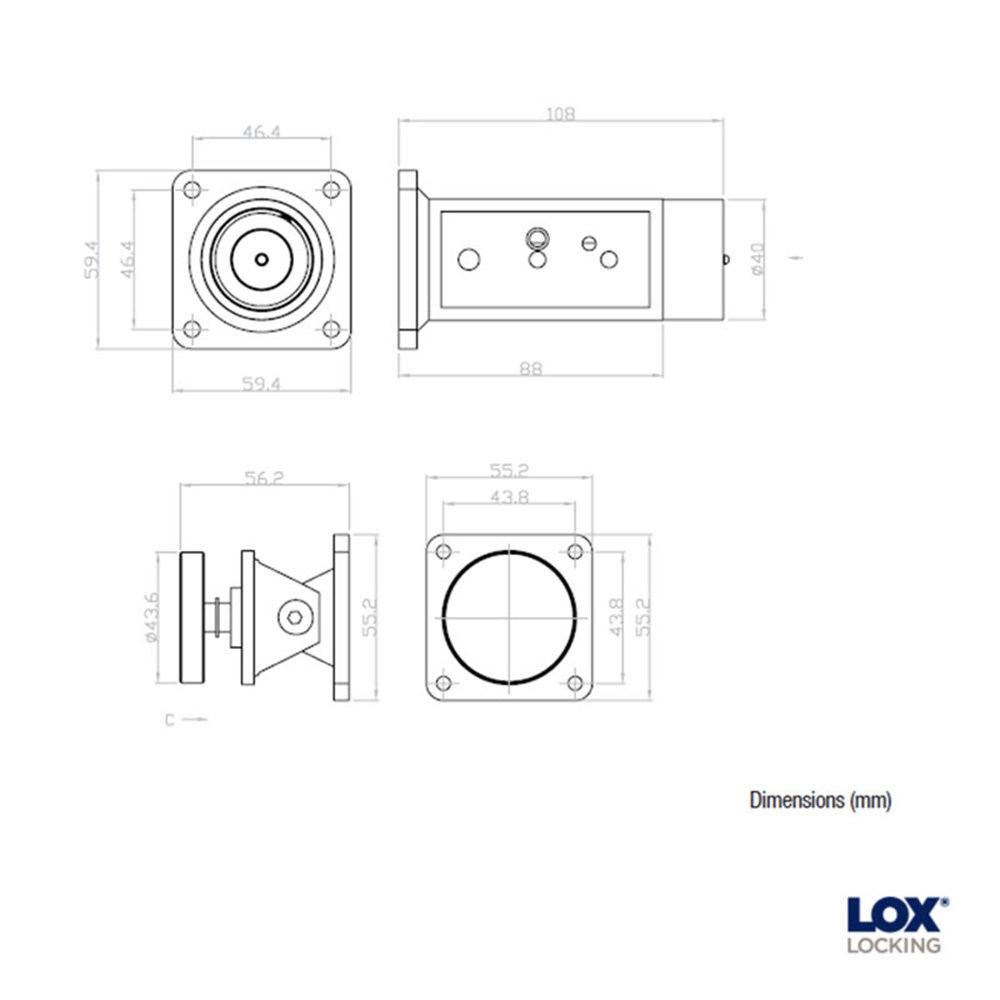

  • Size (D) 108 mm (W) 59 mm (H) 59 mm.
  • Push button door release.
  • Finished in black.
Technical Specifications
Brand LOX LOCKING
Current 160 mA @ 12 Vdc
Finish Black
Holding Strength in kg 25
Working Voltage 12 Vdc
Fire Rated Yes
Single Or Double Door Maglock? Single
Monitoring Non-Monitored
