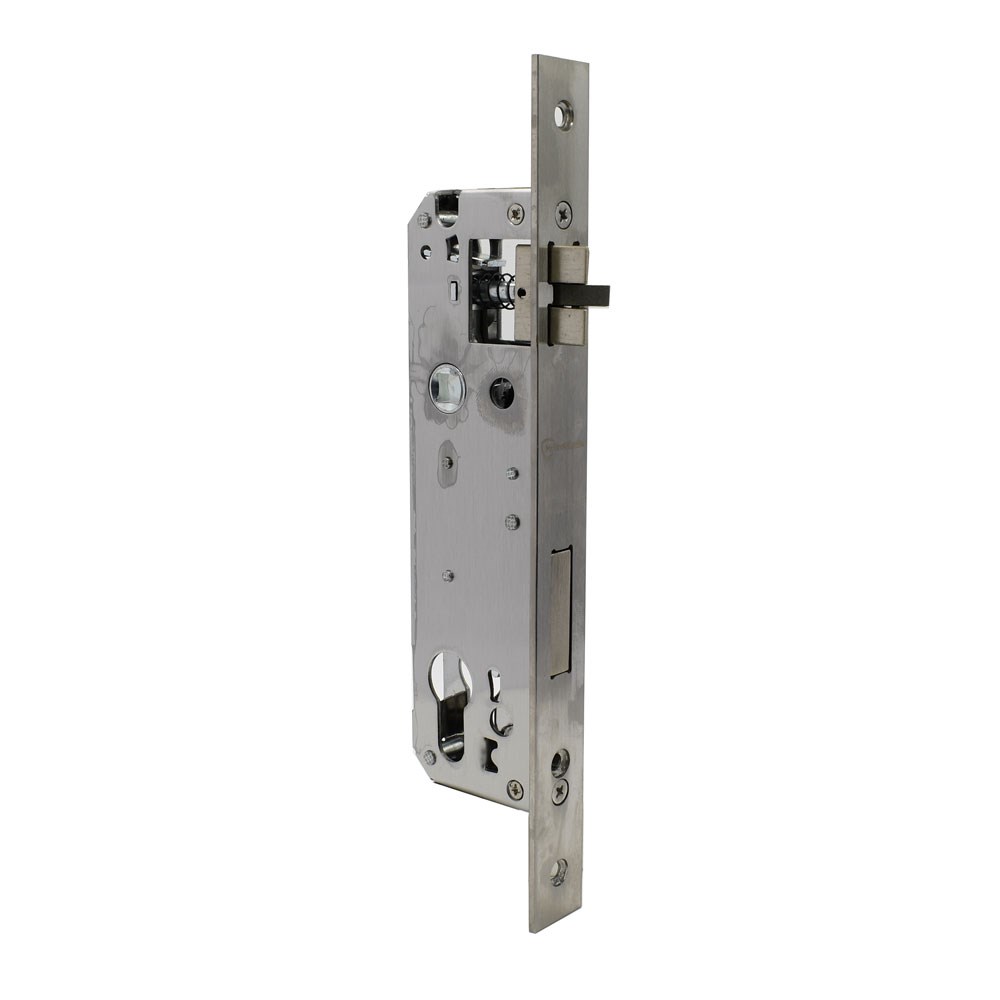

The McGrath Locks Euro mortice lock for swing style doors is compatible with MLA210, MLA231, MLA236 and MLNX5 series locks.

It is manufactured from 304 stainless steel and perfect for installing on timber and aluminium doors.

The bolts on these mortice locks are able to be locked by lifting the levers in an upward direction.

• Latch material: SS304.
• Latch length: 15.5 mm.
• Deadbolt Material: SS304.
• Body Material: 1.5 mm thick SS304 steel.
• Body size: 175 (H) x 18 mm (W) x 51.5 mm (D).
• Faceplate size: 240 (H) x 22 (W) x 3 mm (D).
• Lock pitch: 85 mm.
• Spindle : 8 mm.
• Finish: SSS.
• Cycle tested to 500,000 cycles.
• 12 month warranty.
