RAVEN DOOR SEAL RP26x1250MM CA

Product Code: RP26X1250CA

Are you a tradesperson?

Get access to our best prices



This product is a special order (BTO) and is not returnable.
Description

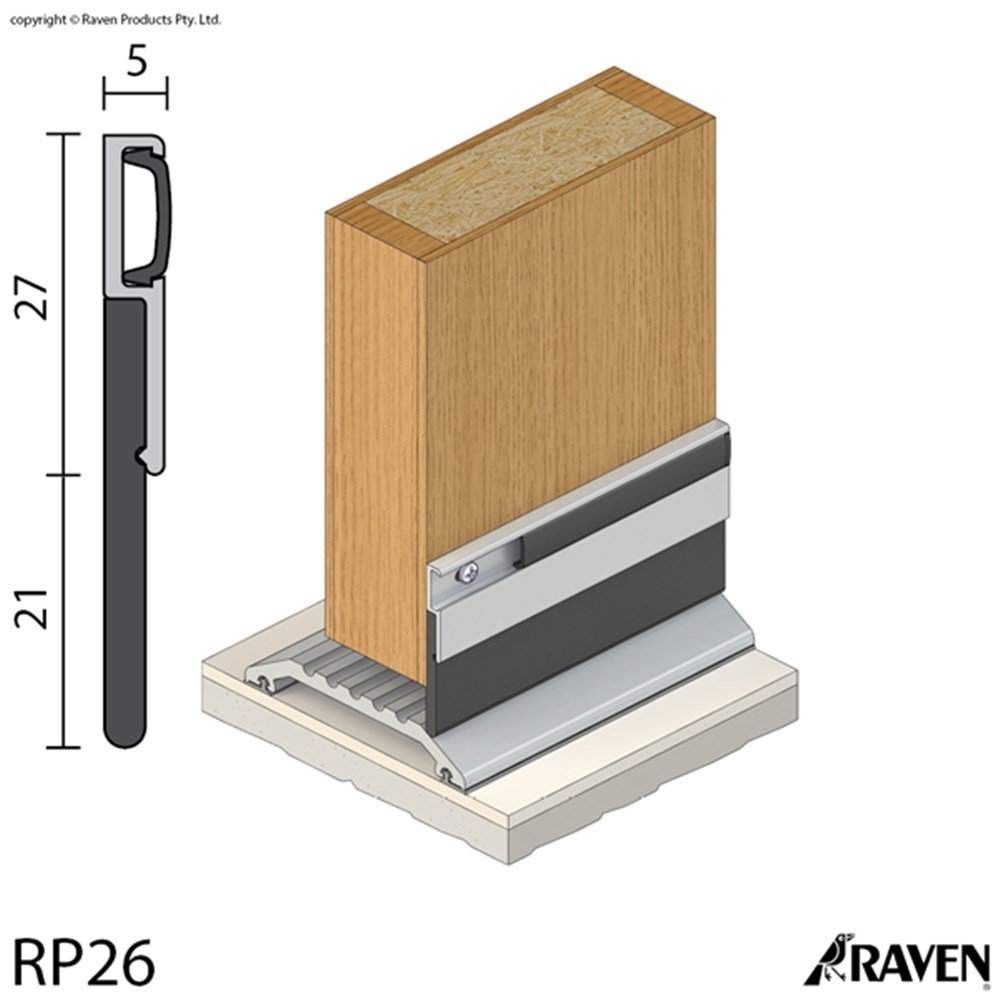

A heavy duty sweep seal for door bottoms of outward opening doors. Slotted fixing holes allow for adjustment all concealed behind a push in cover strip.
The RP26 is ideal for use in conjunction with Raven threshold plates.

Location: Bottom of single and double, outward opening butt hinged doors, tilt up doors or can be used as an astragal seals.

Min/Max Gap: 5 mm to 20 mm (user determined).

Finish: Satin clear (silver), bronze anodised aluminium (15µm) or paint at extra cost.

Fixing: Concealed screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied. Fixing holes are pre-slotted.

Seal: RP326 black EPDM.

Sizes: Available in stock lengths.

Approvals
Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1.
UK/EU: Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
FRL & FRR-/120/30 and FD120.Fire Approved
Energy NCC Pt. 3.12.3.3 & J3.4.

Technical Specifications
Brand Raven
Finish Clear Anodised
Fire Rated Yes
Door Seal Type Sweep Seal
Overall Length in mm 1250
Door Seal Set Individual Seal
