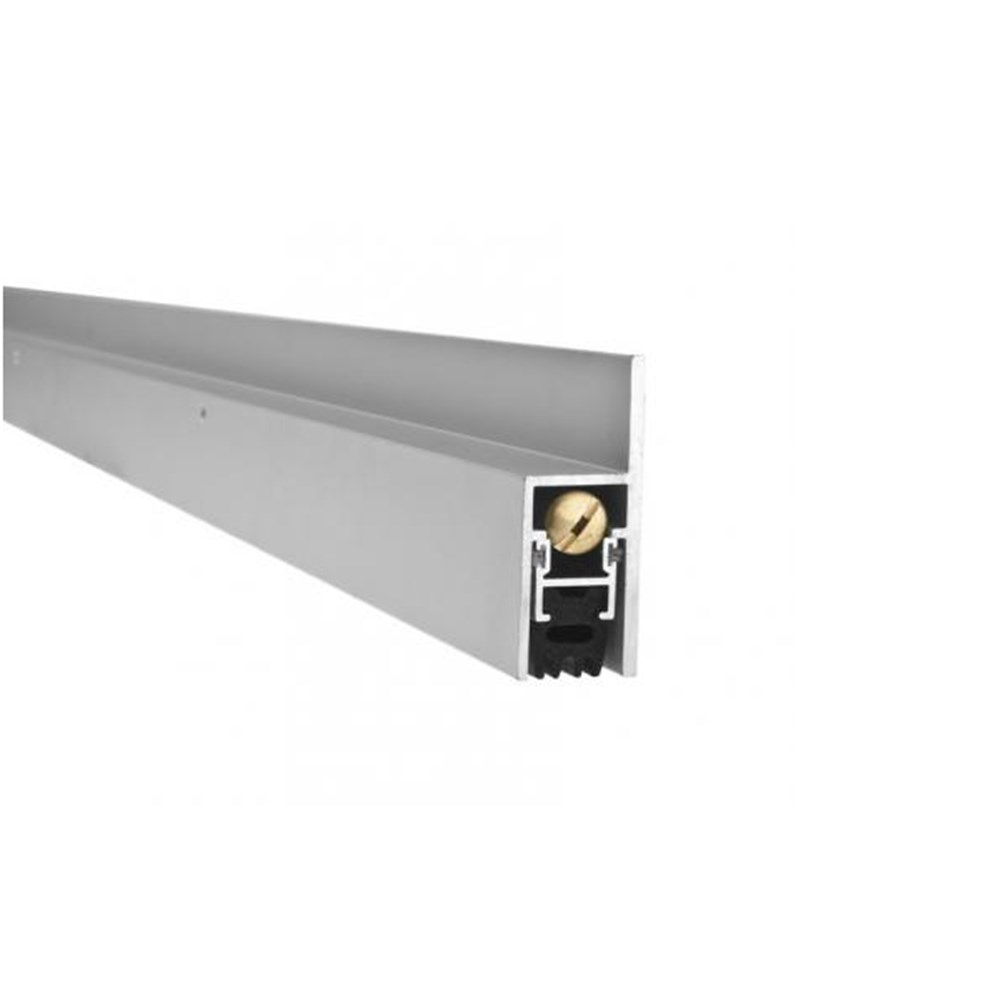

A heavy duty, automatic door bottom seal that is spring loaded to lift clear of the floor when the door is opened. It is self levelling and reversible for left and right handed operation. Acoustically designed, it features an EPDM foam gasket for acoustic door applications and doubles as a kick plate when semi-morticed. Operated automatically by pressure against the door jamb or stop on its adjustable brass strike.

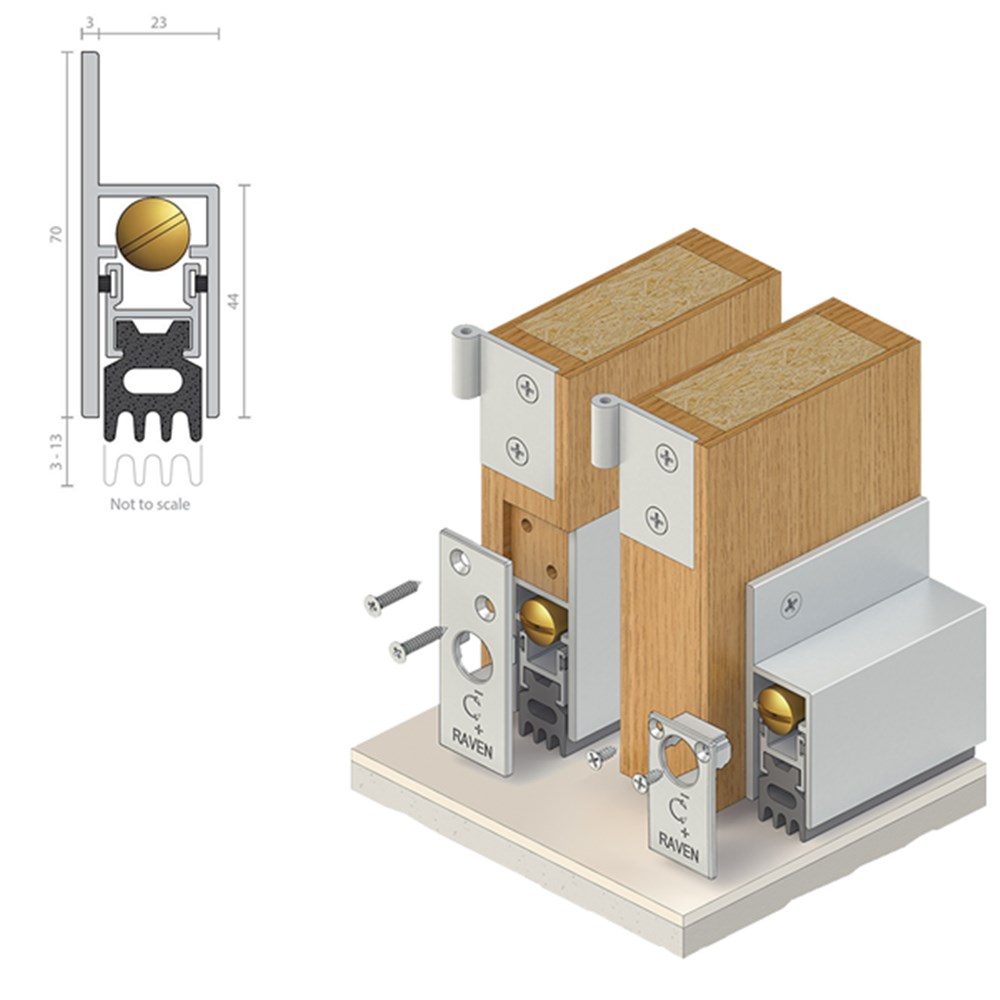

Location: Face mounted or semi-morticed into bottom of single and double butt hinged doors. For semi-mortice minimum door thickness of 50 mm for rebated meeting stiles and 40 mm for plain meeting stiles is required. The RP38 can also be face mounted to the bottom of metal doors.
Min/Max Gap: 3 mm to 13 mm.
Finish: Satin clear (silver) anodised aluminium (15µm) or paint at extra cost.
Fixing: Screw fix. Colour matched escutcheon plates and zinc plated, cross recess head S.T. screws supplied.
Seal: RP338. Black EPDM sponge (SE).
Sizes: 1500 mm, 1220 mm, 1070 mm, 920 mm, 610 mm, 450 mm to 300 mm(min). Seals cut back to exact size.
Approvals
Acoustic AUS/NZ: NCC Spec. F5.5.
UK/EU: Approved Document E. Rated to BS EN ISO 717.1.
Fire & Smoke AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1.
UK/EU: Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
FRL & FRR-/240/30 and FD240.
Energy NCC Pt. 3.12.3.3 & J3.4.
Design for Access and Mobility High efficiency mechanism to assist with the closing force requirements detailed in AS1428.1.
Durability Tested to over 1,000,000 operating cycles without failure.
Patented.
