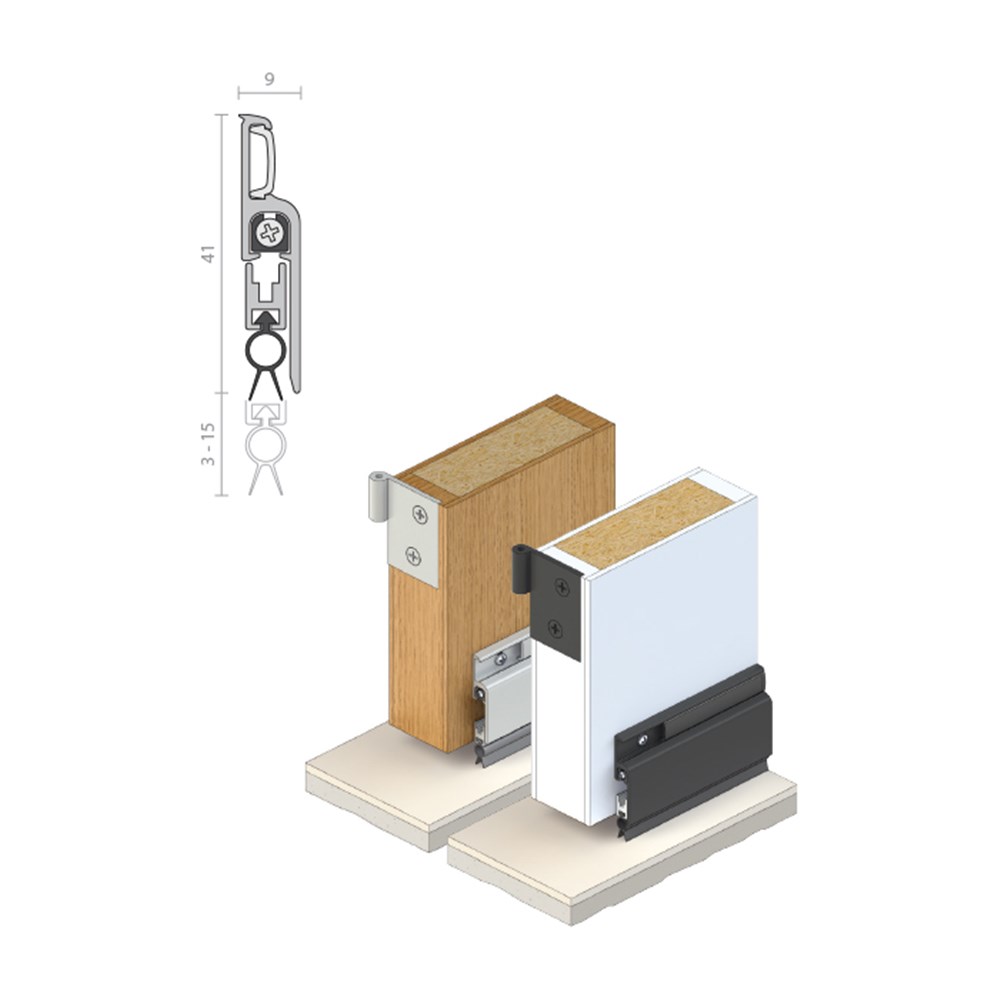

An adjustable, automatic door bottom seal which is spring loaded to lift clear of the floor when the door is opened. Operated automatically by pressure against the door stop on its adjusting screw and incorporates concealed fixings. The RP60 is self levelling and can be used in conjunction with Raven threshold plates such as the RP13 and RP82.

Location: Face mounted on the bottom of single and double butt hinged doors.

Min/Max Gap: 3 mm to 15 mm.

Finish: Satin clear (silver), bronze or bright gold anodised aluminium (15µm).

Fixing: Concealed screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied. Fixing holes are pre-slotted.

Seal: RP460 black TPE.

Sizes: 915 mm maximum (between door stops). Unit cuts back to 450 mm (min).

Approvals
Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1.
UK/EU: Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
FRL & FRR-/240/30 and FD240.
Energy NCC Pt. 3.12.3.3 & J3.4.
Design for Access and Mobility High efficiency mechanism to assist with the closing force requirements detailed in AS1428.1.
Durability Tested to over 500,000 operating cycles without failure.
