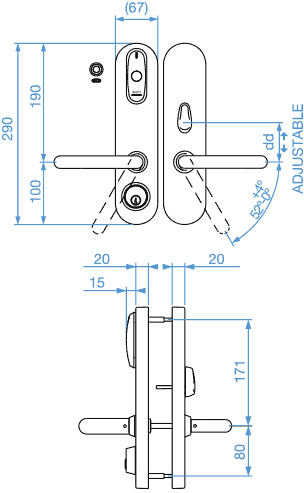

A9650 Dimensions

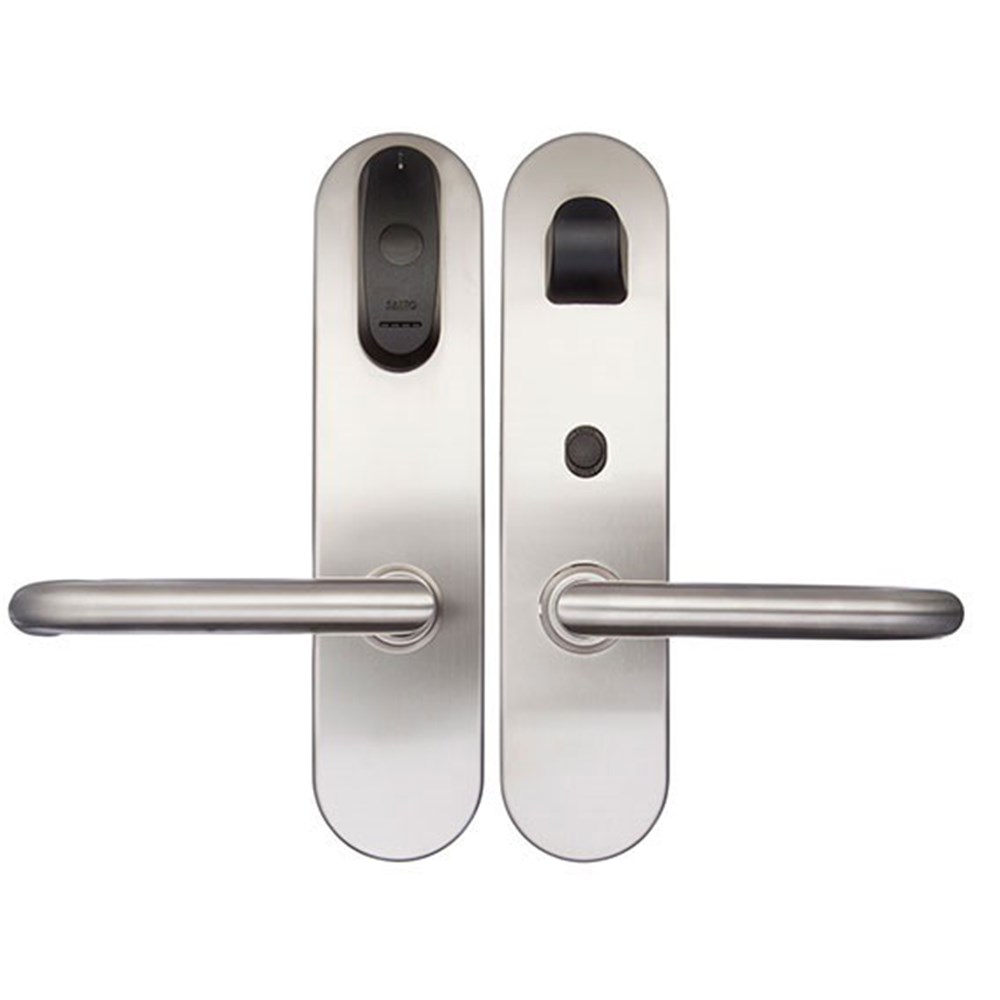

SALLIS ANSI PRIVACY ESCUTCHEON w/ Z LEVER

Product Code: A9656Z00IMA6S

Are you a tradesperson?

Get access to our best prices



This product is a special order (BTO) and is not returnable.
Description

The SALLIS by SALTO 60 series door lock is specially designed to be compatible with most Australian mortice locks and tubular latches. It is designed for use on busy doors with a need for privacy function.

Wireless for real-time control using SVN Salto Virtual Network.

  • SALLIS by SALTO wireless version for wireless real-time control via ICT® WX.
  • Secure clutch mechanism on escutcheon (when locked handle moves freely).
  • Disabled access AS1428.1 compliant levers.
  • Electronic privacy function via internal push button.
  • Privacy override programmed via user group.
  • Optional door status detector to monitor intrusions or door left open status.
  • Body and escutcheon made of steel.
  • Door thickness compatibility: 32-120 mm.
  • Compatible with Australian mortice locks and tubular latches.
  • ANSI/BHMA A156.25 Grade 1 compliant for heavy commercial, institutional and industrial use.
  • Dimensions: 290 (H) x 67 (W) x 20 mm (D).
  • Handle rotation: 52° - Limiters available for tubular latches.
  • IP55 compliant.
Technical Specifications
Brand SALTO
AS1428.1 Compliant Lever (AS1428.1CO) Yes
Finish Satin Stainless Steel
IP Rating IP55
Reader Colour Black
Suits Door Thickness 32 mm to 120 mm
Suits Salto SALLIS
