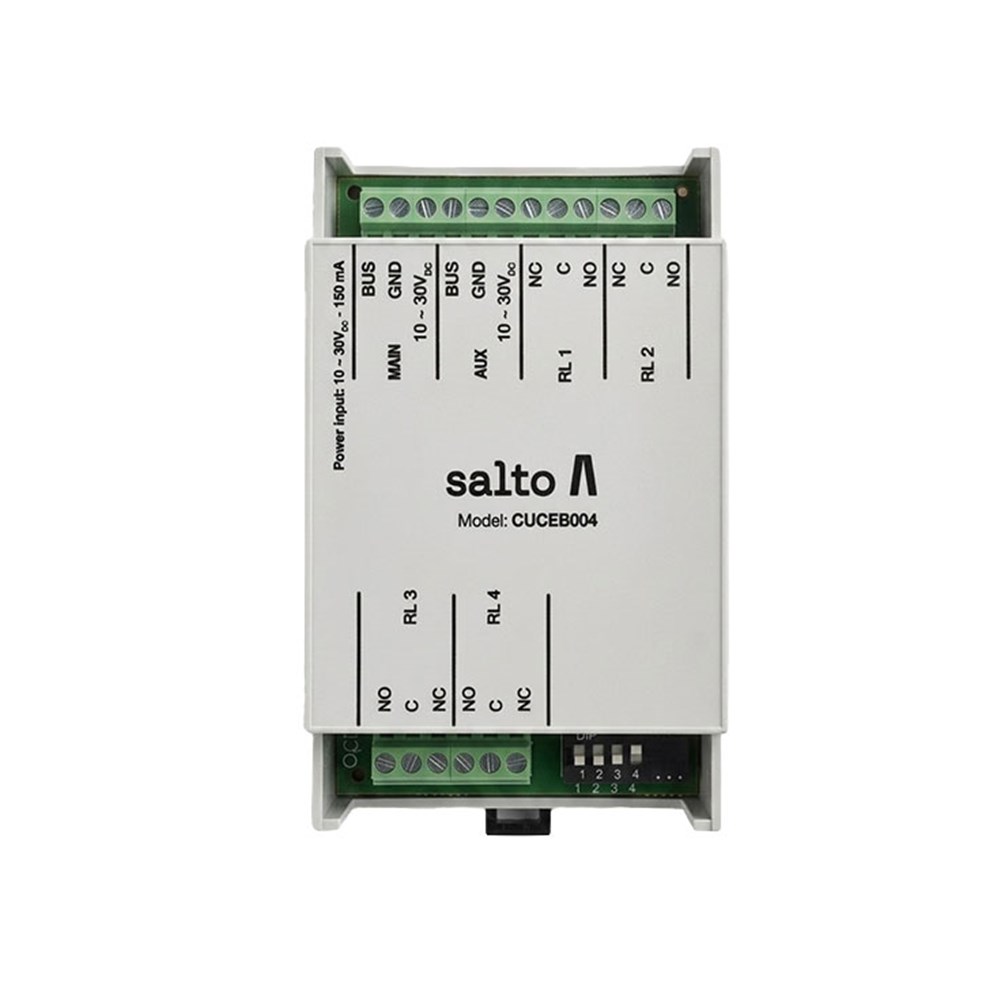

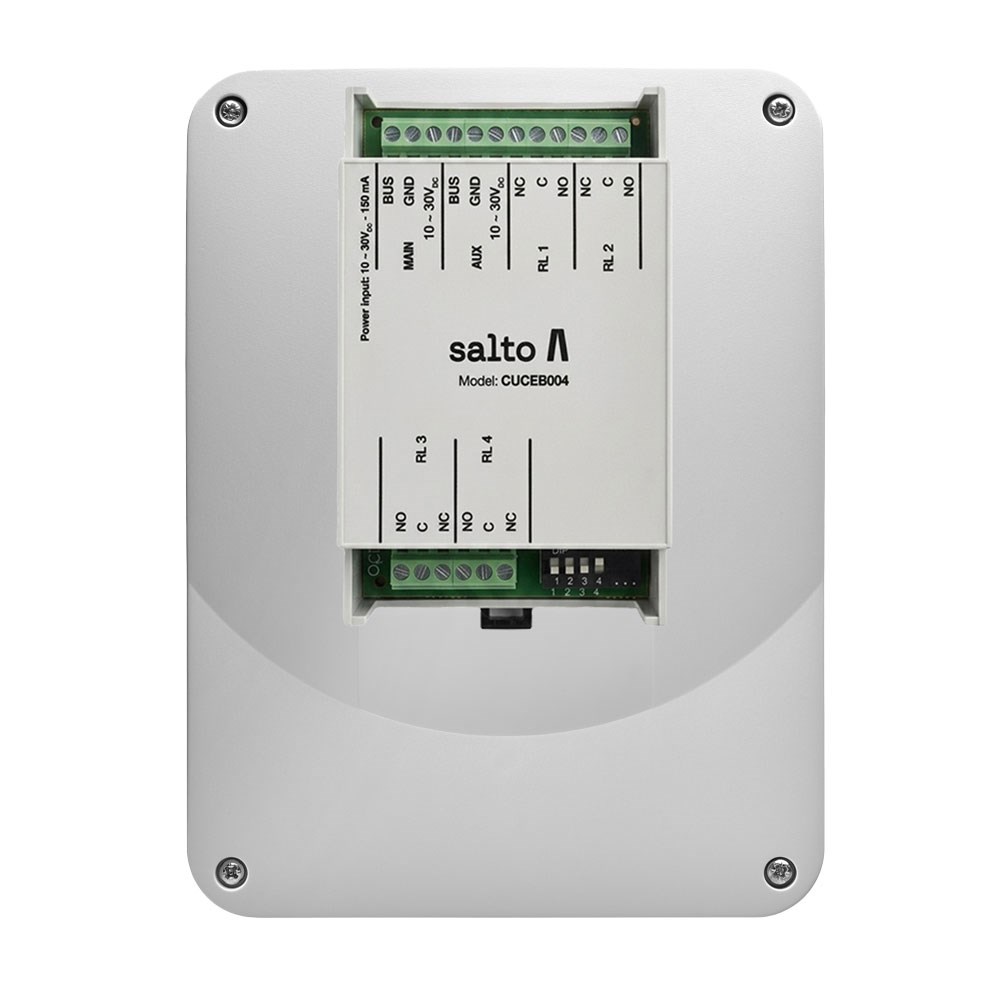

The SALTO BLUEnet Door Controller Expansion Board connects to a standard BLUEnet Door Controller to extend output control capacity. Each expansion board adds four relay outputs, supporting the integration of additional devices within a SALTO access control solution.
Designed for modular installation, the unit mounts on a DIN rail and connects via serial bus. Up to 16 expansion boards can be managed by the standard unit, allowing the system to be expanded as project requirements grow.
Key Features:
- Adds 4 relay outputs per expansion board.
- Up to 16 expansion boards can be connected on a serial bus and managed by the standard unit.
- DIN rail mounting supports flexible, modular installation and future expansion.
- Supports online or standalone use.
- Compatible with SALTO Space, SALTO KS and SALTO Homelok platforms.
- Grey, self-extinguishing PC/ABS housing rated UL94-V0.
- Australian power supply included with CUCEB004GAU package.
PLatforms:
- SALTO Space
- SALTO KS
- SALTO Homelok
