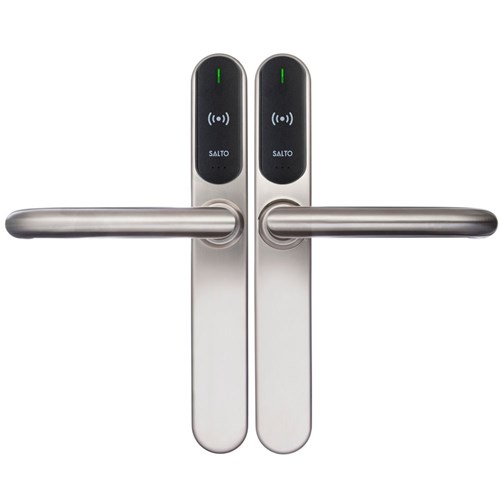

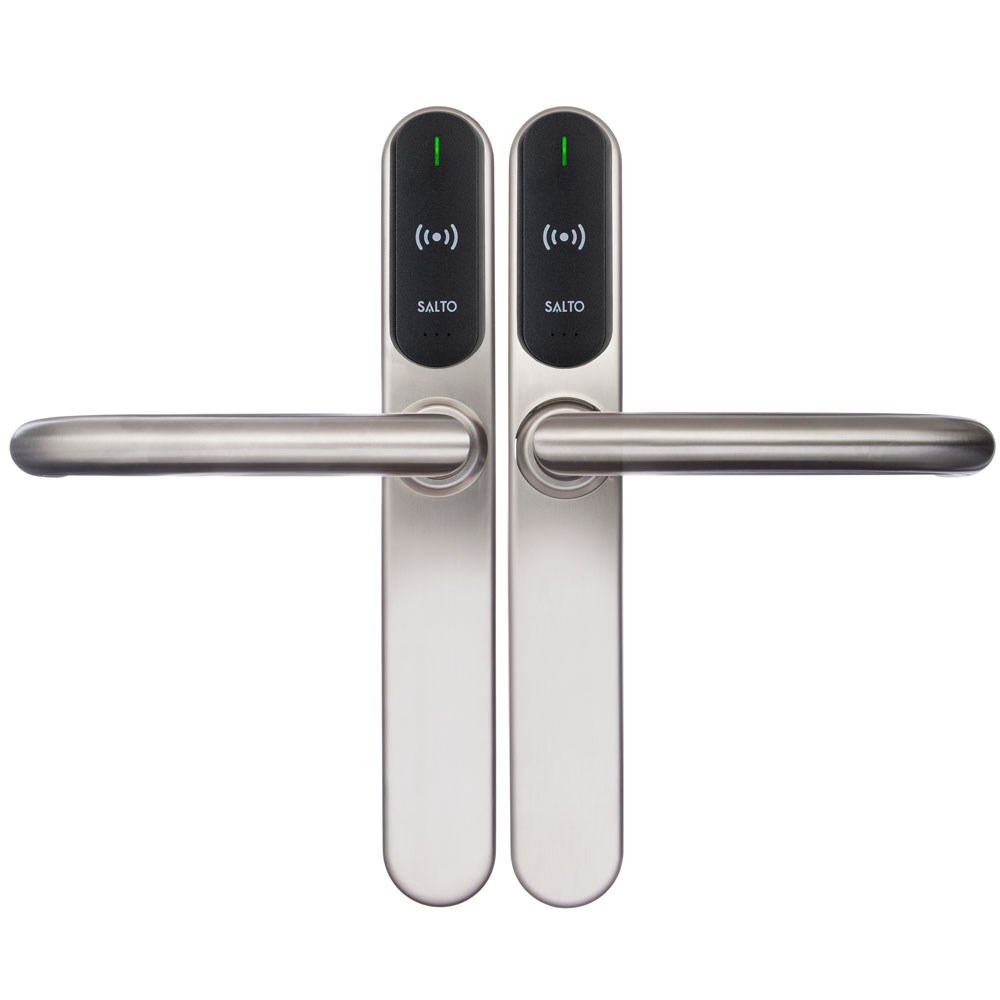

The XS4 Original+ Double Reader narrow body version is specially designed to fit most Euro profile doors, even narrow profile framed doors and work with the majority of European mortice locks and cylinders.
Used with the ROSSML 28 mm backset Australian narrow mortice lock, this escutcheon provides the perfect solution to most commercial aluminium doors.
The XS4 Original+ incorporates the latest BLUEnet wireless and mobile credentials technology to accommodate access control needs of both today and tomorrow.
BCA AS1428.1 -2009 compliant leverset.

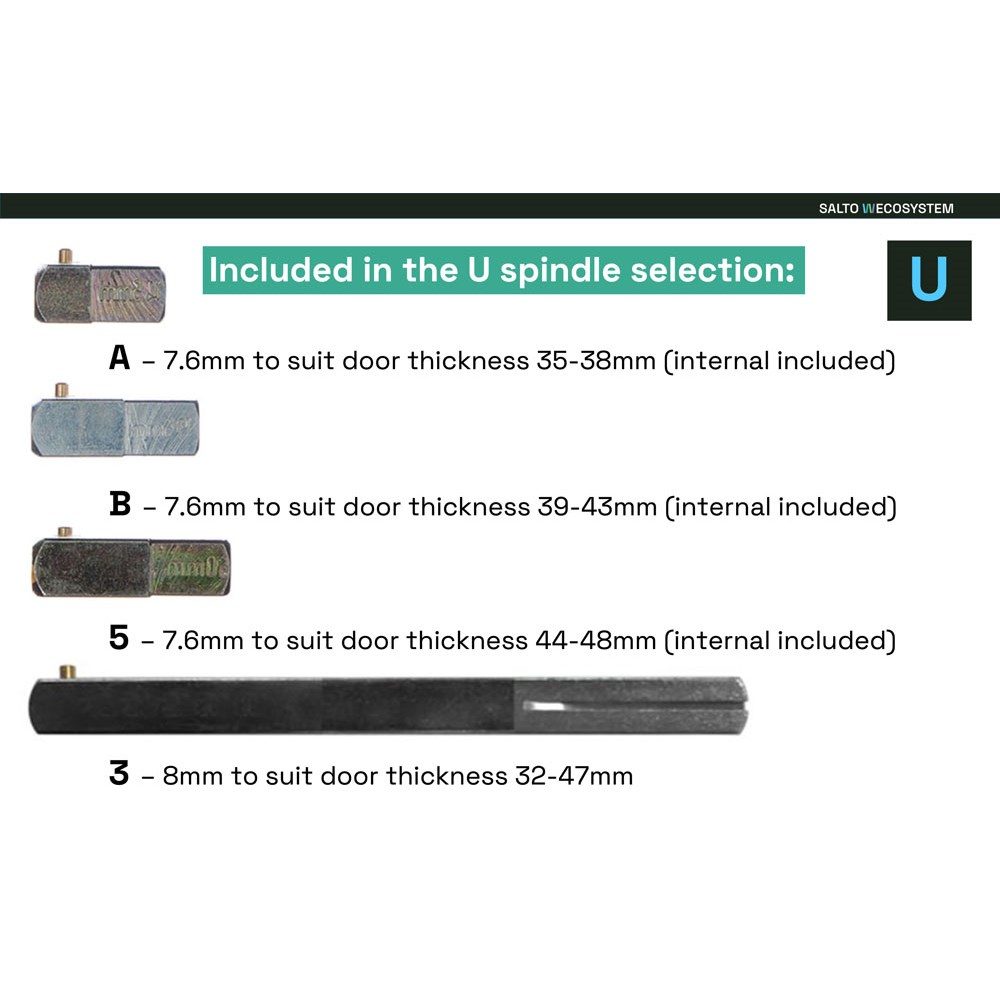

With Universal spindle kit.
- Clutch mechanism escutcheon (when locked handle moves freely).
- Disabled access AS1428.1 compliant lever.
- Compatible with ROSSML modified narrow style mortice.
- Dimensions: 282 (H) x 40 (W) x 20 mm (H).
- Handle rotation: 33°.
- Compatible with DIN mortice locks, European mortise locks and narrow style mortise lock.
- 3 LR03 batteries (AAA size), with optional lithium FR03 batteries.
- Up to 129,000 operations, depending on the technology and platform.
- Mechanical override with audit trail facility available.
- Electronic privacy function version available.
- Available in wireless version for wireless real-time control.
- IP55 rated (external escutcheon).
