Product Code: BEW2OAP

This product is a special order (BTO) and is not returnable.

Description

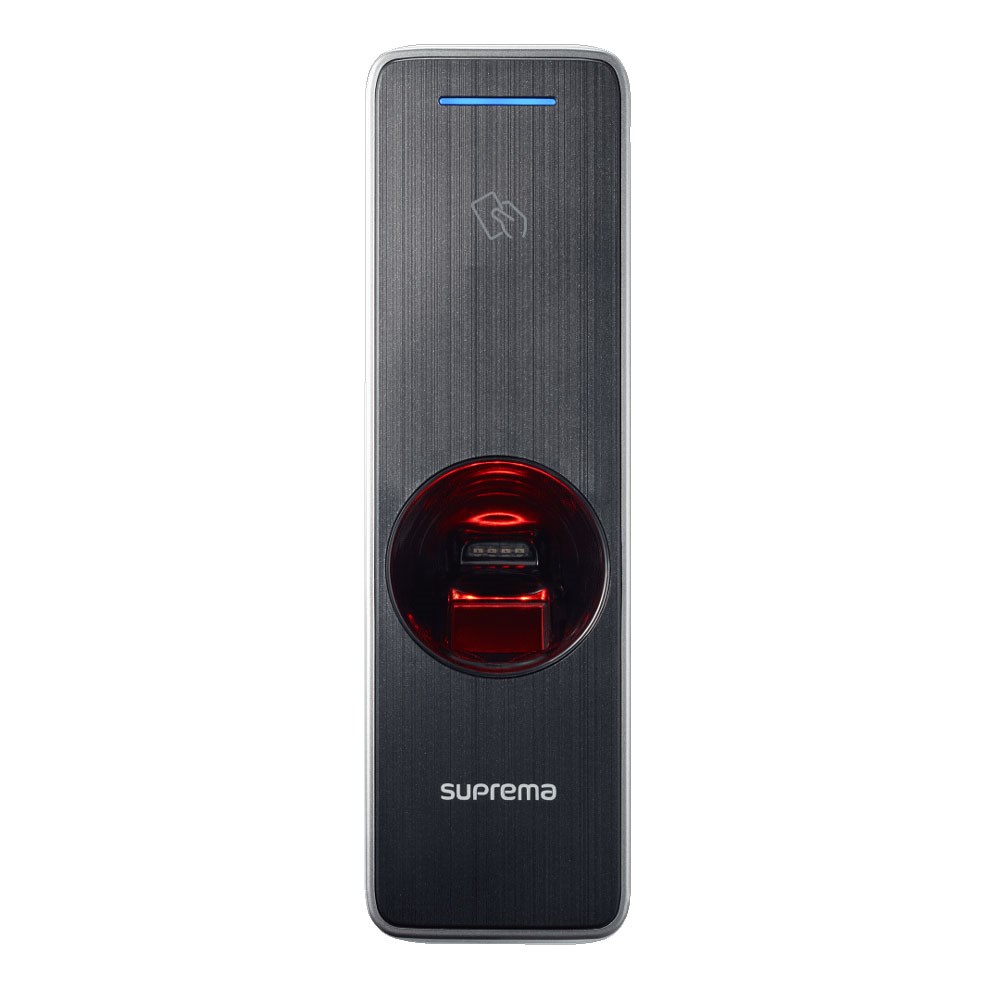

Suprema BioEntry W2 is a rugged fingerprint access control device featuring Suprema’s next generation biometric technology and security platform.

BioEntry W2 provides class-leading performance and security by featuring Suprema’s latest fingerprint algorithm coupled by powerful quad-core CPU and LFD(live finger detection) technology. The device also provides added flexibility in system design featuring multi-card support with dual-frequency RFID technology.

Packed in a rugged IP67/IK09 housing with sleek metal finish, BioEntry W2 is a perfect access control solution for tough environment and outdoor installation.

Model		BEW2-OAPB
RFID	RF Option	125kHz EM & 13.56Mhz MIFARE, MIFARE Plus, DESFire/EV1/EV2/EV3, iCLASS SE/SR/Seos, FeliCa
	Mobile Card	NFC, BLE
Protections	Ingress Protection	IP67
	Vandal Proof	IK09
	Template	SUPREMA / ISO 19794-2 / ANSI 378
Fingerprint	Extractor / Matcher	MINEX certified and compliant
	Live Fingerprint Detection	Supported (HW + SW base)
	Users (1:1) * Based on one finger enrollment per user	500,000
	Users (1:N) * Based on one finger enrollment per user	100,000
Capacity (Fingerprint)	Max. Finger per User	10
	Text Log	1,000,000
	CPU	1.2 GHz Quad Core
	Memory	2GB Flash 256 MB RAM
	LED	Multiple colors
	Sound	Multi-tone Buzzer
HW	Operating Temperature	-20°C ~ 50°C
	Operating Humidity	0% ~ 80%, non-condensing
	Weight	Device: 251g, Bracket: 43g (Including washer and bolt)
	Dimension (WxHxD, mm)	50 x 172 x 43.5 (Bottom) / 38.2 (Top)
	Tamper	Supported
	Ethernet	10/100 Mbps, auto MDI/MDI-X
	RS-485	1ch Host or Slave (Selectable)
	Wiegand	1ch Input or Output (Selectable)
	TTL Input	2ch Inputs
Interface	Relay	1
	PoE	IEEE 802.3af compliant
Electrical	Power	DC 12V
