Software module 6 - Fiat, Lancia, Alfa Romeo, Maserati CODE2

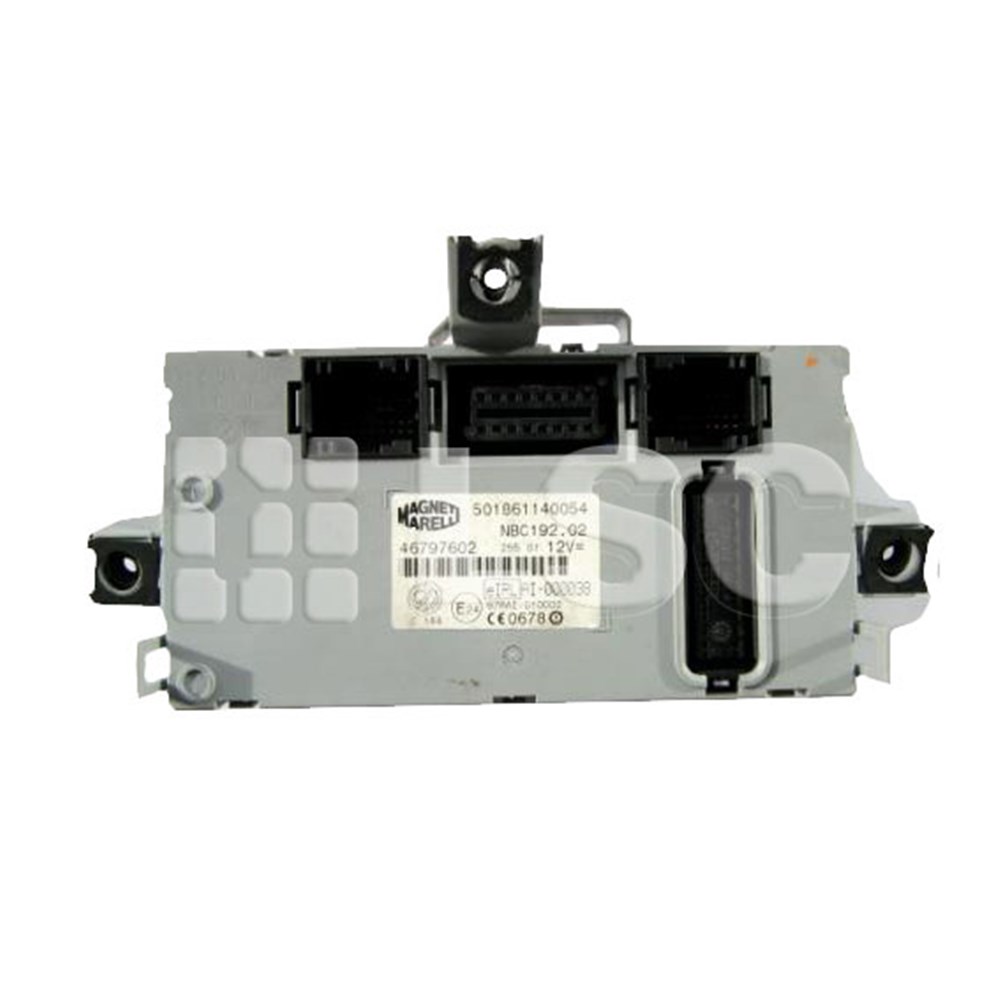

with BSI Marelli Memory device is Motorola MCU, which can be either MC68HC912DG128 or MC9S12DG256, both QFP 112 package. For MC68HC912DG128 expected file size is 2048 bytes, for MC9S12DG256 file size must be 4096 bytes.
Use Megamos Crypto or Silca T6 transponder. Module also shows PIN code and transponder have to be matched with car.
If there is not valid key, usual you have to wait 15 minutes for accepting PIN code.
Vehicles equipped with this unit:
- Alfa Romeo: 147, GT
- Fiat: Stilo(1999-2007), Palio(1999-),Idea
- Lancia: Thesis, Ypsilon
- Maserati: Quattroporte, Granturismo
