ABUS CLOSER AC6024 SIZE 2-4 B/C STD ARM SIL

Product Code: AC6024

Are you a tradesperson?

Get access to our best prices



Description

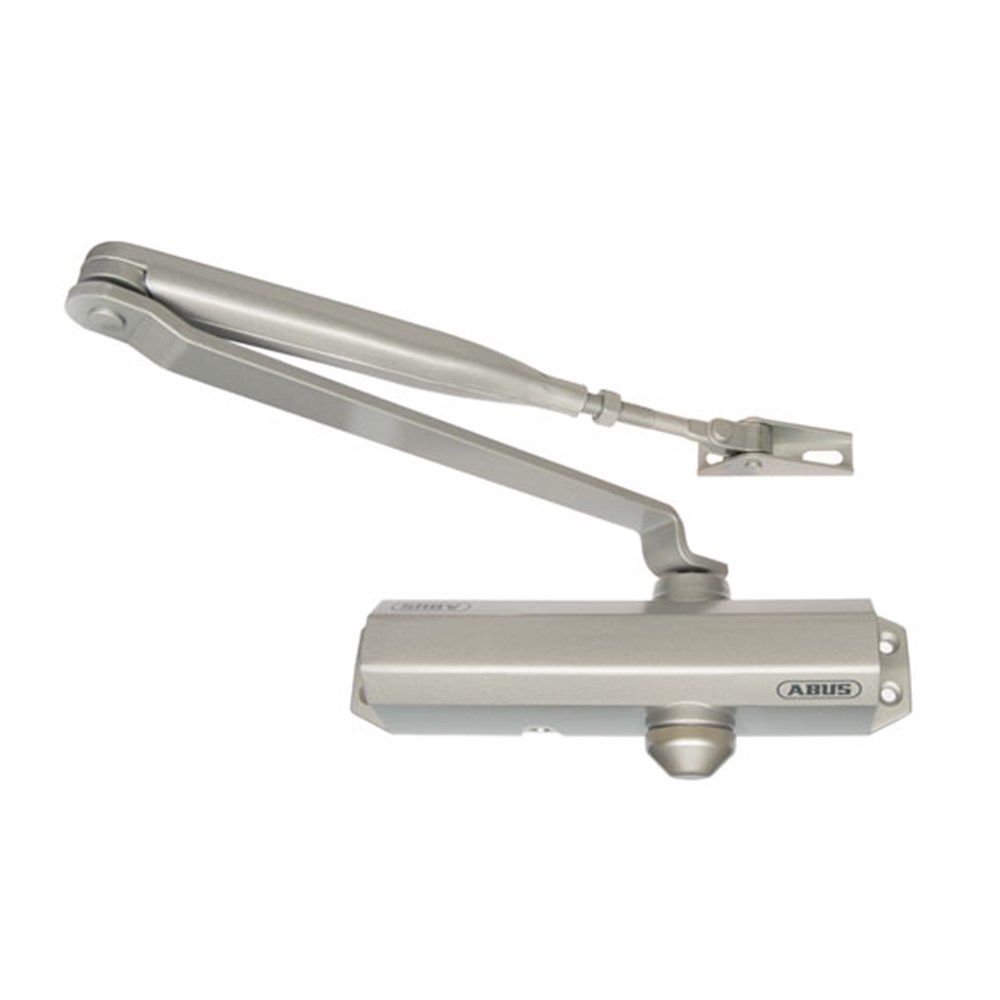

The ABUS AC6024 is a rack and pinion, economy door closer, particularly quick and easy to install on most applications.

Multi position mounting template enables adjustment on site to meet most conditions.

Non-handed and suitable for doors up to 1100 mm in width.

firerated-icon Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.

  • Adjustable power from EN2, 3 or 4.
  • The power is altered by adjusting the position of the body on the mounting template.
  • Adjustable latching and closing speeds.
  • Adjustable backcheck.
  • Standard arm design.
  • Includes parallel arm bracket.
  • Suitable for doors up to 1100 mm wide.
  • Suitable for doors up to 85kg.
  • Dimensions 220 (L) x 50 mm (W).
  • Self adhesive mark out template.
  • Non-handed.
  • EN1154 certified.
  • Fire rated to Australian Standard
    Locally tested and certified.
  • Finished in silver.
  • Supplied boxed.
Technical Specifications
Brand ABUS
Adjustable Closing Speed Yes
Adjustable Latching Speed Yes
Finish Silver
Has Backcheck Yes
Has Delay Action No
Has Holdopen No
Parallel Arm Bracket Included Yes
Spring Strength EN2-4
Fire Rated Yes
