Product Code: LEM3500DMBLK

Double door monitored magnetic lock.
Dual voltage 12V DC @ 1A, 24V DC @ 500mA.
Monitored, door status sensor, lock status sensor.
MOV surge protection.
Holding force up to 280kg per magnet.
4 hour fire rating.
Black anodised aluminium housing.
Zinc plated electromagnetic body.

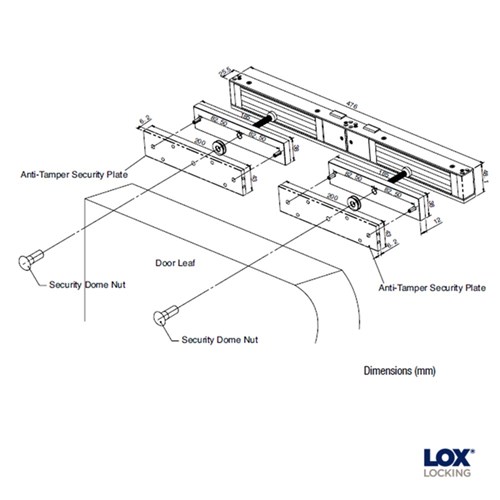

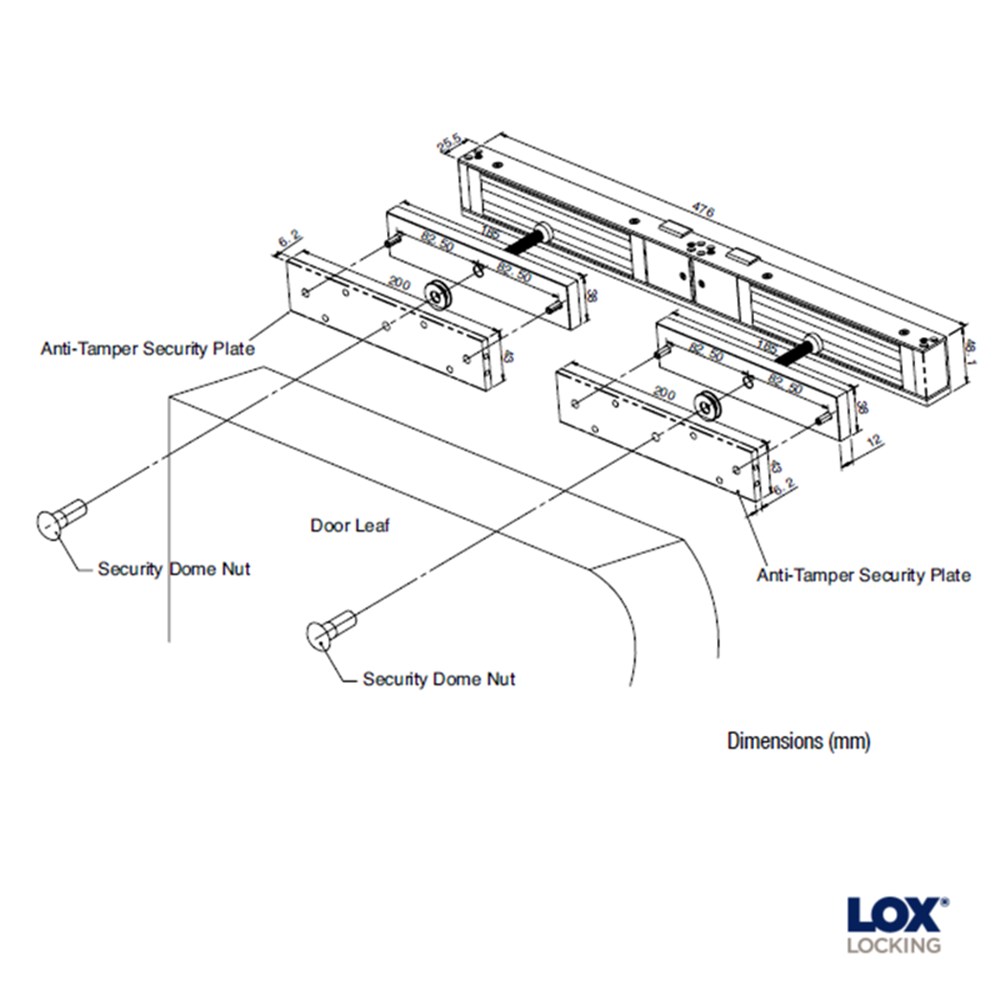

Magnet size 477 (L) x 48 (H) x 25 mm (D).
Armature plates 185 (L) x 38 (H) x 12 mm (D).
Long distance light panel.
Guaranteed no residual magnetism.
Monitored versions supplied with anti tamper plate.

Technical Specifications

Brand	LOX LOCKING
Current	1 A @ 12 Vdc, 500 mA @ 24 Vdc
Finish	Black Anodised
Holding Strength in kg	280
Working Voltage	12/24 Vdc
Fire Rated	Yes, 4 Hours
Single Or Double Door Maglock?	Double
Monitoring	Monitored
